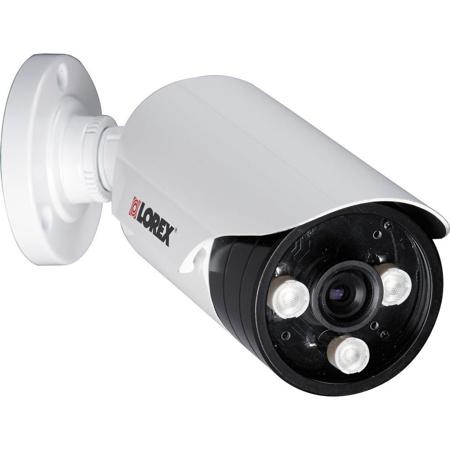

Lorex 960H Weatherproof Night Vision Security Bullet Camera
See all Lorex items

Lorex 960H Weatherproof Night Vision Security Bullet Camera, 700 TV Lines Resolution, 185'/120' Night Vision Range

SKU: LRXLBC7032F
(4)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2015-07-18T20:00:00

Rated 3 out of 5

I purchased a LBC7042F security camera for my front porch. The camera video is fantastic during daylight hours very clear and wide range but once darkness sets in the video clarity is greatly reduced. If there is light shining onto the area to be viewed this is a great camera to use. If you don't have a good light source during darkness then you might want to try a different Lorex camera.

ARB

Lorex 960H Specifications

  • Image Sensor

    1/3" 960H Advanced Image Sensor

  • Video Format

    NTSC

  • Effective Pixels

    H: 976 V: 494

  • Resolution

    700 TV Lines

  • Scan System

    2:1 Interlace

  • Sync System

    Internal

  • S / N Ratio

    46dB (AGC Off)

  • Iris

    AES

  • AES Shutter Speed

    1/60-1/100,000 sec

  • Minimum Illumination

    0.1 Lux without IR LED
    0 Lux with IR LED

  • Video Output

    Composite 1.0Vpp at 75ohm

  • Lens / Lens Type

    6mm F2.0 / Fixed

  • FOV (Diagonal)

    53deg.

  • Termination

    BNC Type

  • IR LED Quantity / Type

    3 Super LED / 850nm

  • Night Vision Range

    185' (56.38m) / 120' (36.57m)

  • Power Requirement

    12V DC +/-10%

  • Power Consumption

    Maximum 460mA (w / IR)

  • Operating Temperature Range

    14deg. to 122deg.F / -10deg. to 50deg.C

  • Operating Humidity Range

    < 80% RH

  • Environmental Rating

    Both (IP66)

  • Dimensions

    2.5 x 2.7 x 209" / 63.5 x 68.58 x 5308.6mm

  • Weight

    0.9lbs / 0.40kg (including stand)

  • UPC Code

    778597703207

About Lorex 960H

View your world in incomparable detail with Lorex 960H Weatherproof Night Vision Security Bullet Camera. When used with a 960H DVR, this camera produces a sharper, non-stretched image that leaves nothing to the imagination. Industry-leading 960H resolution ensures high quality live viewing with 34% more resolution than standard D1 resolution and 5x more than CIF.

This 700TVL camera uses exclusive infrared filter technology to deliver accurate color reproduction and video that rivals DVD quality. Experience crystal clear nighttime video with 3 ProLux IR LED's, which provide state-of-the-art night vision of up to 185' in ambient lighting and up to 120' in total darkness. The robust weatherproof (IP66 rated) housing is designed with a cable pass through bracket to ensure a reliable, vandal resistant solution.

Lorex 960H Features

  • Advanced 960H Image Sensor
  • Video image processor delivers up to 700TV lines of resolution
  • 960H (960x480) image sensor delivers up to 34% more resolution than D1 and 5x more than CIF
  • True-to-life non-stretched aspect ratio provides sharper, more detailed images
  • 6mm fixed lens offers a close up view (53deg. diagonal field of view)
  • ProLux IR LED's provide longer night vision range, longer lifespan and illuminate more evenly
  • Night vision up to 185' away in ambient lighting conditions and up to 120' away in total darkness
  • Split glass design minimizes IR reflection
  • Weatherproof rated housing for indoors & outdoor installation (IP66)
  • Robust vandal resistant housing with cable pass through bracket

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Lorex 960H Weatherproof Night Vision Security Bullet Camera
  • Mounting Kit with Allen Key
  • 60' BNC / Power Extension Cable
  • BNC Female / RCA Male Adapter
  • Power Adapter
  • Lorex 1 Year Limited Warranty
