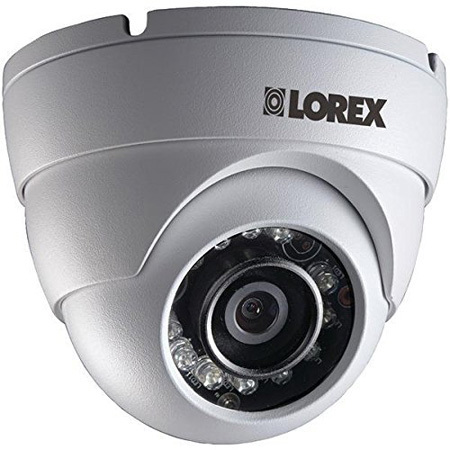

Lorex LEV1522B 720p HD Indoor/Outdoor Day/Night Dome Security Camera for LHV1000 HD DVRs, 1MP, 3.6mm F1.2 Lens, 130' Night Vision Range, Weather-Resistant

SKU: LRXLEV1522B

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-06-11T20:00:00

Rated 5 out of 5

i have to buy the box recorder separeted or is caming with the camera, then i wll need 2 cameras for outside and how much i have suposted to pay and how many more cameras can you install in the same box

peluza

2015-09-24T20:00:00

Rated 5 out of 5

great cameras great look they seem to" melt" into the ceiling not as obtrusive or as menaceing as the standard cameras

me262

2015-09-17T20:00:00

Rated 5 out of 5

Awesome

Pulga

Lorex LEV1522B Specifications

  • Compatibility

    Lorex HD DVR LHV1000 series only

  • Image Sensor

    1/2.9" 720p Megapixel Pixel Sensor

  • Video Format

    NTSC

  • Effective Pixels

    H: 1280
    V: 720

  • Resolution

    720p

  • Scan System

    Progressive

  • Sync System

    Internal

  • S/N Ratio

    50dB (AGC Off)

  • Iris

    AES

  • AES Shutter Speed

    1/60 - 1/100, 000 Sec.

  • Min. Illumination

    0.01 Lux without IR LED
    0 Lux with IR LED

  • Video Output

    Composite 1.0Vpp at 75Ohms

  • Lens/Lens Type

    3.6mm F1.2 / Fixed

  • FOV (Diagonal)

    90 deg.

  • Termination

    BNC Type

  • IR LED Qty. / Type

    12 pieces /850nm

  • Night Vision Range

    Up to 130' / 39.62m in ambient lighting
    Up to 90' / 27.43m in total darkness

  • Power Requirement

    12V DC +/-10%

  • Power Consumption

    Max. 200mA (w/IR)

  • Operating Temperature Range

    -22 to 140 deg. F / -30 to 60 deg. C

  • Operating Humidity Range

    < 90% RH

  • Environmental Rating

    Both (IP66)

  • Dimensions (Dia. x H)

    3.7 x 3.9" / 93.98 x 99.06mm

  • Weight

    With Stand: 0.75lbs / 0.34kg

About Lorex LEV1522B

View your world like never before with the detail and clarity of high definition 720p resolution video. Crystal clear video with outstanding detail, day or night. The HD Weatherproof Night Vision Security Dome Camera provides high quality recordings you expect from a Lorex'security solution. The LEV1522B dome security camera gives high definition recording day and night and is IP66 rated, making it ideal for both indoor and outdoor use.

For those who already own a wired security system, upgrading to HD surveillance has never been easier - simply swap out your old BNC cameras for new 720p wired HD cameras that use the same cabling. Extend the video signal up to 800ft (242m) with a single run of RG59 coaxial cable for flexible installation. Providing up to 130 feet of night vision range, this high definition security camera delivers the highest level of night vision available on Lorex wired cameras.

Indoor / Outdoor
Camera performs both in outdoor and indoor applications.

Night Vision
View video during the day and with night vision at night.

Additional Features
• Crystal clear video with outstanding detail, day or night
• Infrared cut filter ensures accurate color representation
• Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness
• Close up recognition in the dark with SmartIR
• ClearNight imaging for superior low light performance, improving recording efficiency
• Residential and business friendly compact design
• 3-axis design for wall / ceiling mounting

What's in the box:

  • Lorex LEV1522B 720p HD Indoor/Outdoor Day/Night Dome Security Camera
  • Mounting Kit
  • 60' BNC/Power Extension Cable
  • Power Adapter
  • Lorex 1 Year for Camera and 90 Day for Accessories Limited Warranty
