Lorex Super HD Security System with 8 Super HD Color Night Vision Indoor/OutdoorCameras

SKU: LRXLHA41081T

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-12-21T14:24:01

Rated 5 out of 5

Good system for the money

Happy with the system, just installed it and it works great. This system was built in 2017, one fact I did not know when I purchased it but for the price it meet my needs.

Harold B.

Lorex LHA4100 1TB /8x LAB243B Specifications

LHA4100: System

LHA4100: System

Jump to...
  • Operating System

    Linux (embedded)

  • Pentaplex

    Simultaneous View, Record, Playback, Backup & Remote Monitoring

  • Number of Channels

    8-channel

LHA4100: Inputs/Output

Jump to...
  • Video IN

    4/8/16 x 1Vp-p, CVBS, 75ohms, BNC

  • Video OUT

    No

  • VGA OUT

    Yes

  • HDMI

    Yes

  • Audio IN

    4 lines IN (RCA)

  • Audio OUT

    1 line OUT (RCA)

  • USB Port

    1 at the back, 1 at the front

  • Alarm IN

    None

  • Alarm OUT

    None

  • Video Output Resolution

    8 ch: HDMI: 3840 x2160; 2560 x1440; 1920 x1200; 1600 x1200; 1680 x1050; 1920 x1080

  • PTZ control

    RS-485 Pelco D & P Protocol

LHA4100: Display

Jump to...
  • Live Display

    8 ch: 1, 4, 8, 9

  • Live Display Speed

    8 ch: 240 NTSC, 200 PAL

  • OSD

    ON/OFF

  • System Navigation

    USB Mouse, IR Remote Controller, Front Panel

  • Motion Area Setting

    Fixed Grid NTSC (44 x30) / PAL (44 x36)

  • Sensitivity levels

    8

  • Firmware Upgrade

    Automatic over the Internet & via USB device and Network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

LHA4100: Recording

Jump to...
  • Video Compression

    H.264

  • Audio Compression

    G.711

  • Recording Resolution

    NTSC: 4MP / 3MP / 1080p / 720p / 960H

  • Recording Frame Rate

    4MP: 15fps (per ch)
    3MP: 20fps (per ch)
    1080p/720p/960H: 30fps (NTSC) / 25fps (PAL)

  • Recording Resolution Setting

    Per camera for different resolutions

  • Recording Quality Control

    6 levels

  • Recording Schedule

    By hour, by day, by recording mode, by motion, by channel

  • Pre Recording

    Max. 2 Secs

  • Post Recording

    Max. 5 Minutes

  • Reliability

    Watch-Dog, Auto-recovery after power failure

  • Covert Video

    Yes

LHA4100: Playback

Jump to...
  • Playback Channel

    8 ch: 1 / 4 / 8

  • Playback Speed

    Variable Max 16x

  • Playback Players

    Backup Player

  • Search

    By Time/Date & Motion Event

  • Log Search

    Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record & storage

  • Audio Play

    Yes

LHA4100: Storage & Archive

Jump to...
  • Storage

    8ch: Up to 1 HDD (SATA)

  • Maximum Capacity

    8ch: Up to 1 x 6TB

  • Backup Media

    USB Flash Drive & HDD

  • Backup File Format

    H.264 / MP4 / AVI file

LHA4100: Connectivity

Jump to...
  • Cloud Connection

    FLIR Secure or Lorex Secure app with FLIR Cloud Connectivity

  • Supported Operating Systems

    Windows
    Mac OSX

  • Remote Software

    Client Software (PC) & Safari (Mac)

  • Email notification

    Text with snapshot

  • Instant Smart Phone & Tablet Support

    iPad, iPhone, Android

  • DDNS

    None

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by User

  • Network Protocol

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP

  • Network Interface

    10/100/1000-Base-TX, RJ-45

  • Network Bit Rate

    Max 64Mbps

LHA4100: General

Jump to...
  • Power Consumption

    Approx. 7.08 watts (no HDD included)

  • Supply Voltage

    100VAC-240VAC, 12VDC, 2A, 50/60Hz

  • Supply Voltage

    100VAC-240VAC, 12VDC, 2A, 50/60Hz

  • Supply Voltage

    100VAC-240VAC, 12VDC, 2A, 50/60Hz

  • Dimensions

    8 ch: 12 x 8.3 x 2.0" (310 x 210 x 50mm)

  • Weight

    8 ch: 2.6 lbs (1.2kg) (without hard drive)

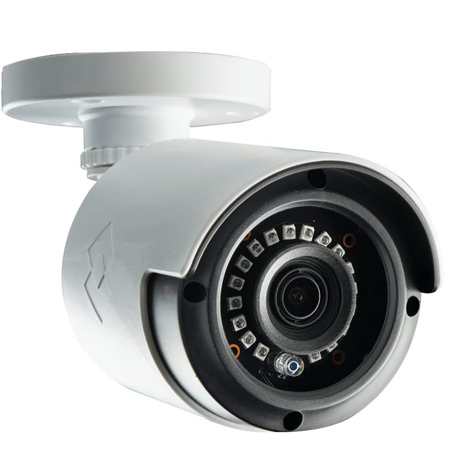

LAB243B Bullet Camera

Jump to...
  • Image Sensor

    1/3", 4 Megapixel CMOS

  • Video Format

    NTSC / PAL

  • Effective Pixels (H x V)

    2592 x 1520

  • Resolution

    4MP

  • Scan System

    Progressive

  • Sync System

    Internal

  • S/N Ratio

    40dB (AGC Off)

  • Iris

    AES

  • AES Shutter Speed

    1/30 - 1/50,000 Sec.

  • Min. Illumination

    0.5 Lux without IR LED / 0 Lux with IR LED

  • Video Output

    A-MPX

  • Lens / Lens Type

    3.6mm F2.0 / Fixed

  • Field of View

    89 Degree (Horizontal)

  • Termination

    BNC Type

  • IR LED Type

    18 pieces /850nm

  • Night Vision Range

    130' (40m) / 90' (28m)

  • Power Requirement

    12V DC +/-10%

  • Power Consumption

    Max. 300mA (with IR)

  • Operating Temp. Range

    -22 Degree - 140 Degree F (-30 Degree - 60 Degree C)

  • Operating Humidity Range

    < 95% RH

  • Environmental Rating

    IP66

  • Dimensions (W x D x H)

    2.7 x 6.2 x 2.7" (50 x 158 x 50mm)

  • Weight

    7.2 oz (204.12g)

  • UPC Code

    695529014616

About Lorex LHA4100 1TB /8x LAB243B

FEATURED REVIEWS

Good system for the money

By Harold B.

Happy with the system, just installed it and it works great. This system was built in 2017, one fact I did not know when I purchased it but for the price it meet my needs.

Monitor your property like never before with this outstanding 4MP Super HD security system from Lorex by FLIR. This top-of-the-line system includes our cutting-edge 8-channel LHA4100 Series Super HD DVR with 8 bullet security cameras featuring 4MP (2K) HD resolution. The included weatherproof cameras deliver exceptional image quality day or night, with Color Night Vision in low light conditions and long-range IR night vision in complete darkness. Everything you need for setup is included, giving you professional-grade security protection for your home or business.

Detailed 2K security footage
Take your home or business security to new heights with security cameras that go beyond standard HD. Equipped with powerful Super HD 4-megapixel image sensors, the included bullet security cameras record at a 2K resolution - double that of 1080p HD.

4MP recording captures the details you need
Super HD 4MP video offers clear identification and exceptional detail, ensuring that you never miss out on important evidence. This higher resolution (2592 x 1520 pixels compared to 1920 x 1080) will make sure that your security videos are richer with detail than ever before. It will also allow you to digitally zoom in tight on faces without drastically reducing the video clarity.

Reliable analog HD over a single BNC cable
Standard siamese BNC cabling is used in this system to deliver stunning HD video. This BNC cable provides both video and power transmission for an easy-to-install process that will have your surveillance system up and running in no time. If needed, analog HD cameras like these can be installed up to 500 feet away from the DVR - making them ideal for watching over large properties (see documentation for complete details).

Stay connected with Lorex Cirrus
Connect your smartphone or tablet to our Lorex Cirrus app to make your surveillance system accessible from virtually anywhere in the world. It is full of innovative features that will make monitoring your property easier. Among many other features, Lorex Cirrus will allow you to watch live or recorded video, and send you motion activated push notifications to your smart device.

Works With

• Apple Mac
• Windows PC
• Apple iPad
• Android Tablet
• Apple iPhone
• Android Phone

24/7 protection with color night vision
The included security cameras are equipped with 2 nighttime viewing technologies. Our innovative Color Night Vision (CNV) creates full-color video in low-light conditions. See people and objects in color just like in the daytime with CNV. This will provide more informative nighttime video than ever before. See clearly even in total darkness with IR LEDs, which produce detailed black and white images in conditions that are too dark for CNV. IR night vision up to 130ft (40m) in ambient night time conditions and up to 90ft (27m) in total darkness ensure that you never lose sight of important details and events around your property.

Weatherproof security cameras built to last
The included security cameras feature a weatherproof IP66 rating and can withstand outdoor temperatures of -22 Degree - 140 Degree F. The cable pass-through mounting bracket further protects the cables from being tampered with to ensure year-round security coverage that never stops.

Security certified hard drive included
Record crisp 4MP video to the pre-installed 2TB security grade hard drive. This large 100% duty-cycle hard drive is designed for surveillance and will provide reliable storage of security footage without taking a break. You can also customize the recording settings to fit your needs by customizing the resolution, frame rate and quality settings. Record in 4MP Super HD for the highest video quality, or set to a lower resolution (1080p, 720p or 960H) for improved recording efficiency and data storage. The scheduled and motion recording features will also allow you to extend your record time.

DVR Digital Video Recorder
Security DVRs connect to BNC cameras using RG59 coaxial cables and they compress and store video footage captured from security cameras.

24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.

Lorex LHA4100 1TB /8x LAB243B Features

  • LHA4100 Security DVR Features
  • True 4MP SuperHD recording on all cameras
  • 24/7 security-grade pre-installed hard drive
  • Continuous, scheduled, and motion recording
  • H.264 video compression reduces data bandwidth requirements for efficient data storage, reduced network load for easy remote connectivity
  • HDMI output (HDMI cable included) for simple connection to HD TVs
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade over the Internet ensures your system is secure and up to date
  • Lorex Cirrus app with 3-Step setup 4 connects all your cameras and systems from any iOS or Android smartphone, tablet, PC or Mac
  • Motion push notifications and email alerts
  • Dual streaming to conserve bandwidth
  • Backward compatible with standard analog cameras
  • LAB243B Bullet Camera Features
  • High definition 4MP image sensor delivers double the detail of 1080p
  • 4MP Super HD video recording provides superior quality for reviewing fine details in heightened resolution
  • Color Night Vision provides full color images at night, letting you identify objects and people more accurately than in black & white
  • IR Night vision range up to 130ft (40m) in ambient lighting and 90ft (28m) in total darkness
  • Close up recognition in the dark with SmartIR
  • DNR (Digital Noise Reduction) for clear accurate images
  • ClearNight imaging for enhanced low light performance and improved recording efficiency
  • Split glass design minimizes IR reflection
  • 89 Degree field of view (horizontal)
  • Vandal resistant design with cable pass-through bracket
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design
  • Weatherproof for outdoor & indoor installation (IP66 Rated)
  • Extreme temperature performance (-22 Degree - 140 Degree F / -30 Degree - 60 Degree C)

Key Features

  • LHA4100 Security DVR Highlights
  • True 4MP SuperHD recording on all cameras
  • 24/7 security-grade pre-installed hard drive
  • Continuous, scheduled, and motion recording
  • LAB243B Bullet Camera Highlights
  • High definition 4MP image sensor delivers double the detail of 1080p

What's in the box:

  • LHA4100 1TB HDD DVR
  • 8x LAB243B 4MP Super HD Bullet Cameras
  • HDMI Cable
  • Remote Control
  • Mouse
  • Ethernet Cable
  • Mounting Hardware
  • 60' Extension Cable
  • 2x Power Adapter
  • Quick Start Guide
  • Lorex 1 Year Limited Warranty
