Lorex LKB343B Specifications

  • Image Sensor

    1/3" 4MP

  • Video Format

    NTSC / PAL

  • LHB80632GC2W

    H: 2592 x V: 1520

  • Resolution

    4MP (2688x1520) at 20fps

  • Scan System

    Progressive

  • Sync System

    Internal

  • S/N Ratio

    >= 38dB (AGC OFF)

  • Iris

    EIS

  • AES Shutter Speed

    1/5-1/20000 seconds

  • Min. Illumination

    0.5 lux without IR
    0.3 lux with IR

  • Video Output

    IP

  • Lens / Lens Type

    2.8mm F1.8 / Fixed

  • Field of View (Horizontal)

    101 deg.

  • Termination

    RJ45 Ethernet / 12V DC Power Barrel (optional)

  • IR LED Type

    850nm

  • Night Vision Range

    130' (39.62m) with help of ambient lighting
    90' (27.43m) in total darkness

  • Color Night Vision

    Yes

  • Power Requirement

    PoE (Power over Ethernet) Class

  • Power Consumption

    Max. 450mA /5.4W

  • Operating Temperature Range

    -22 to 140 deg. F (-30 to 60 deg. C)

  • Operating Humidity Range

    <95% RH

  • Environmental Rating

    IP66 (Indoor / Outdoor)

  • Dimensions (WxDxH)

    2.9 x 6.0 x 2.9" (7.37 x 15.24 x 7.37cm)

  • Weight

    0.9 lbs (0.41kg)

  • UPC Code

    695529011332

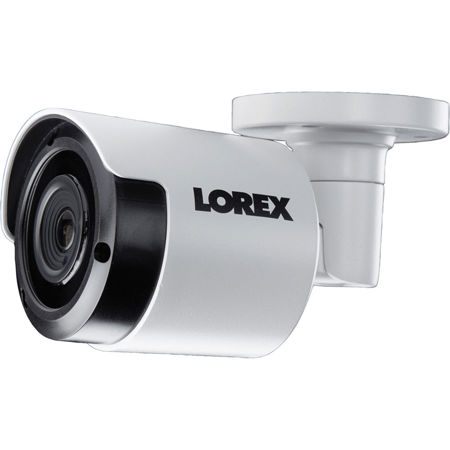

About Lorex LKB343B

A security camera is supposed to capture useable evidence should an incident ever occur on your property. With the LKB343B security camera from Lorex you can expect just that. It uses a 4-megapixel (mp) image sensor that will provide you 2K Super HD resolution security footage. It also has incredible infrared night vision, a wide angle 101deg. horizontal field of view and a fully weatherproof housing that can withstand freezing temperatures as low as -22deg. F / -30deg. C. Whether you are in the market for a new security camera or looking to upgrade, this 4mp security camera is an ideal solution.

• High definition 4MP image sensor delivers double the detail of 1080p
• 4MP video recording provides HD quality even when zoomed, offering clearer identification in video evidence
• The latest H.265 compression technology reduces video file sizes by up to 50% to save valuable Hard Drive space
• Color Night Vision delivers full color nighttime video for improved recognition of objects in low light conditions
• IR night vision range up to 130' (40m) in ambient lighting and 90' (27m) in total darkness
• ClearNight imaging for improved low light performance and improved recording efficiency
• True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
• Intelligent compression saves recording space by optimizing video performance based on available bandwidth
• Wide angle 101deg. field of view (horizontal)
• Ceiling / wall mountable
• Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
• Extend the camera's video and power with a single Ethernet cable up to 300' (92m) from the recorder
• Cold climate capability (-22deg. F / -30deg. C)
• Weatherproof IP66 rated

2K Super HD resolution
Lorex is proud to add this powerful 2K IP security camera to our extensive line of consumer security cameras. The LKB343 contains an 8mp image sensor at its core, which means that it is capable of recording a 2K pixel resolution of 2688 x 1520 at 20 frames-per-second (FPS). This resolution will deliver extremely detailed images and allow for greater digital zooms so you can see further into the distance. This camera also uses industry leading H.265 compression, which will help reduce video sizes and save valuable hard drive space.

Easy PoE installation
The LKB343 security camera only requires a single Cat5e Ethernet cable to connect it to a compatible NVR. This cable provides video transmission, power to the camera, a stable network connection and installation flexibility up to 300' (as the camera does not need to be plugged into a nearby power source).

Long range color night vision
Trust the LKB343 security camera to protect your property, even during the darkest hours of the night. Not only will this security camera allow you to clearly see up to 130' / 40m away with the help of ambient lighting or up to 90' / 27m away in total darkness, it will take your night vision security coverage one step further with our Color Night Vision (CNV) technology. This feature will provide full-color video in low-light conditions that will add an extra level of visual detail that can help identify people or objects. It is important to note that CNV requires ambient light - the camera will typically switch to black and white infrared night vision if the area is too dark.

All-weather security camera
The LKB343B 4mp security camera is rated IP66 (weatherproof). This means that furious winds, torrential downpours and furious snowstorms are no match for this rugged security camera. It will even continue to operate in freezing climates as low as -22deg. F / -30deg. C. This allows you to place it where you need it most - indoors or outdoors. Its heavy duty housing is well equipped to withstand vandalism as well, providing additional protection for safe outdoor installation.

Vandal Resistant
Built and designed to withstand vandalism.

Indoor Outdoor
Camera performs both in outdoor and indoor applications.

Night Vision
View video during the day and with night vision at night.

What's in the box:

  • Lorex LKB343B Indoor/Outdoor 4MP Super HD PoE Security IP Bullet Camera
  • 100' CAT5e Ethernet Cable
  • Power Adapter
  • Allen Key
  • Mounting Kit
  • Quick Setup Guide
  • Lorex 2 Year Warranty
