Review Summary
Linux (embedded)
Simultaneous View, Record, Playback, Backup & Remote Monitoring
8ch
8 PoE Video Input
No
Yes
Yes
1 Line IN (RCA) for service only
1 Line OUT (RCA) for service only
1 at the back, 1 at the front
8 Alarm IN
3 Alarm OUT
1920x1080, 1280x1024, 1280x720, 1024x768
Lorex IP PTZ cameras only
1, 4, 8, 9
240FPS NTSC, 200 PAL
Camera Title, Time, Camera Lock, Motion Detection, Recording Status
USB mouse, IR remote control, front panel buttons
Adjustable grid (22x18)
100
Automatic over the Internet & via USB device and Network
By user group
Auto time sync by NTP server
H.264
1080P (1920x1080) / 720P (1280x720)
NTSC: 240FPS at 1080p
PAL: 200FPS at 1080p
Per camera for different resolutions
6 levels
By hour, by day, by recording mode, by motion, by channel
Max. 30 Secs
Max. 5 Minutes
Watch-Dog, auto-recovery after power failure
Yes
1/4/9
Variable Max 16x
Backup Player
By time & event
Up to 1, 000 lines for motion detected, configuration changes, connects/disconnects and video loss
Yes (audio camera required)
Up to 2 HDD's (SATA)
Up to 2x 4TB
USB Flash Drive & HDD
DAV or ASF file
Flir Cloud
Windows
Mac OS X
Client Software (PC/Mac)
Text with snapshot
iPad, iPhone, Android & Tablet Support
Free Lorex DDNS
Full setup configuration over network
Programmable by User
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
10/100-/1000 Mbps, RJ-45
256Mbs total, 48-8192kbps per camera
Approx. 20 watts (no HDD included)
100VAC-240VAC, 50/60Hz
120W (Max 25W per Camera) (across all channels)
14 to 131 deg. F / -10 to 55 deg. C
10 - 90% RH
1/3" Sony Exmor Sensor
H: 1920
V: 1080
1080p at 30FPS (FPS)
Progressive
Internal
Auto Iris
1/4 - 1/10, 000 sec.
0.1 Lux without IR LED
0 Lux with IR LED
3.6mm F1.6 / Fixed
2D-DNR
Digital WDR
84 deg.
RJ45 10M/100M Ethernet
32 pieces / 850nm
Up to 130' / 40m in ambient lighting
Up to 80' / 24m in total darkness
PoE (Power over Ethernet) Class 2/12V DC
350mA
14 to 140 deg. F / -10 to 60 deg. C
< 85% RH
IP66 (indoor/outdoor)
NVR: 14.7 x 11.2 x 2" / 373.38 x 284.48 x 50.8mm
NVR: 5.1lbs / 2.31kg
LNB3153B Including Stand: 0.9lbs / 0.41kg
695529002835

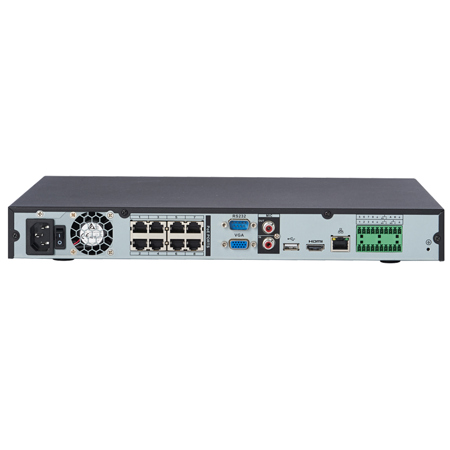

Experience the next generation of premium, do-it-yourself security with the LNR400 Series Network Video Recorder (NVR). This cutting-edge NVR is bundled with weatherproof HD IP cameras to provide you with stunning 1080p HD recording in real-time on all channels. Each camera requires just a single Ethernet cable connecting it to the NVR, which provides both power and video using Power over Ethernet (PoE) technology. Connect the cameras to the NVR's 8 integrated PoE ports for a truly plug-and-play surveillance experience that will have you up and running in no time. A high-capacity security-grade HDD is pre-installed, allowing you to record days of footage as lifelike as life itself. Maintain vigilance with the ultimate in recording resolution and picture quality in your corner.
The weatherproof IP cameras feature advanced Digital Noise Reduction combined with Spatial Noise Reduction, delivering a more accurate image, with better clarity, sharpness, greater disc space for storage and improved motion detection. High-powered Infrared LED's deliver outstanding night vision range in ambient lighting and total darkness, ensuring extremely clear HD viewing in all low-light conditions. Digital-Wide Dynamic Range backlight compensation provides clear detailed images where very bright and very dark areas exist in the same field of view.
Introducing FLIR Cloud, Lorex innovative hassle-free cloud connection service. Say goodbye to IP & router port forwarding issues - you can quickly and easily connect to your security system using a smartphone, tablet, PC or Mac. FLIR Cloud connects you to your system remotely within minutes on your iOS or Android device. Simply download the free App, scan the QR code and start viewing your world securely online! Stay abreast of important developments with push notifications for motion events and instant email alerts with snapshot attachments. Record surveillance footage to the security grade 100% duty-cycle hard drive designed for surveillance, providing weeks or even months of reliable video. Customize the recording settings to fit your needs. Record at 1080p HD (1920x1080) for the highest resolution or change the settings to a lower resolution for extended recording time.
The LNR400 Series features a simplified installation that saves time when setting up your cameras. The auto-detect function automatically discovers and configures compatible IP cameras on the same local network as the NVR. Simply connect your cameras to the built-in Power over Ethernet (PoE) ports using a single Cat5E Ethernet cable - no power supply required. The Lorex LNR400 Series NVR with HD IP bullet and dome cameras delivers a truly unique surveillance experience, combining real-time HD video with first-class remote connectivity software that makes on-the-go monitoring a breeze! Start viewing your world in full HD and discover the ultimate way to stay connected.
Flexible installation
Variety of installation options are available.
HDTV Ready
High definition interface with HDMI output for easy connection to a TV
24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.
Network Video Recorder Features
Full high definition 1080p recording
Real-time recording at 30fps per channel
8 built-in PoE (Power over Ethernet) ports providing video and power on a single Ethernet cable
Automatically detects compatible IP cameras in the network
H.264 video compression
Expandable high-capacity storage up to 8TB (max 2 x 4TB HDD)
Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive
Pentaplex operation - view, record, playback, backup & remotely control the system simultaneously
Simultaneous playback and live view on the same screen
Selectable area digital zoom in live view and playback
Dynamic click-and-drag camera channel assignment
Flip and mirror camera view settings
Convenient front panel button controls
Accurate time stamps with NTP & daylight savings time
Instant USB backup of live video from selected camera
2 video outputs (HDMI & VGA) to connect multiple monitors
HDMI cable included for simple connection to HD TVs
Keep up to date with automatic firmware upgrades
3-step remote view with FLIR Cloud
PC and Mac compatible
Free iOS and Android compatible apps with live viewing, playback, video recording and snap shot
Dedicated iPad app with multi-channel live viewing and playback
Push notifications of motion events
Instant email alerts with snap shot attachment
Dual streaming to conserve bandwidth
Continuous, scheduled and motion recording
1080p IP Bullet Security Camera Features
High definition 1080p Sony Exmor image sensor delivers superior detail
Crystal clear video with outstanding quality, day or night
Infrared cut filter ensures accurate color representation
Night vision range up to 130ft (40m) in ambient lighting & 80ft (24m) in total darkness
Close up recognition in the dark with SmartIR
Digital wide dynamic range backlight compensation ensures clear images in high and low light areas
Anti-glare feature ensures clear images under strong lighting conditions
ClearNight imaging for superior low light performance, improving recording efficiency
2D-DNR Digital Noise Reduction for clear accurate images
Split glass design minimizes IR reflection
Weatherproof for outdoor & indoor installation (IP66 Rated)
Wide angle 84deg. field of view
Vandal-resistant design with cable pass-through bracket
Heavy- duty durable metal housing
Simple installation of video and power on a single cable with Power over Ethernet (PoE) CAT5e cable
Versatile ceiling or wall mounting options
Residential and business friendly compact design
Expand your coverage with camera Ethernet cable up to 300ft from the NVR
