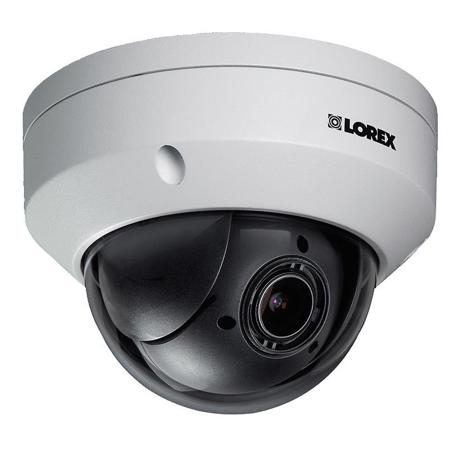

Lorex LNZ32P4B 2.1MP 1080p Indoor/Outdoor HD PTZ Network Dome Camera, 2.7-11mm Lens, Color Night Vision

SKU: LRXLNZ32P4B

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-11-10T11:54:30

Rated 5 out of 5

Excellent

The camera installed quickly and as advertised. The PTZ features work well. I do miss the night vision and perhaps a little more mechanical zoom.

Alex B.

Lorex LNZ32P4B Specifications

  • Image Sensor

    1/2.7", 2.1MP CMOS

  • Video Format

    NTSC / PAL

  • Effective Pixels

    1920 (H) x 1080 (V)

  • Resolution

    Up to 1080p

  • Range

    0 deg. - 355 deg. Pan; 0 deg. - 90 deg. Tilt

  • Pan/Tilt Speed

    Manual Speed - Max 80 deg. /Sec Pan; Max 40 deg. /Sec Tilt
    Preset Speed - Max 100 deg. /Sec Pan; Max 60 deg. /Sec Tilt
    Tour Speed - Max 80 deg. /sec Pan; Max 40 deg. /Sec Tilt

  • Zoom

    4x Optical Zoom / 16x Digital Zoom

  • Scan System

    Progressive

  • Sync System

    Internal

  • S/N Ratio

    >=50dB

  • Iris

    Auto Iris

  • AES Shutter Speed

    1/1 - 1/30,000s

  • Min. Illumination

    0.1 lux (Color); 0.05 lux (B&W)

  • Video Output

    IP

  • Lens / Lens Type

    2.7-11mm F1.6 - F2.7 / Auto & Manual Focus

  • Field of View (Horizontal)

    95 deg. - 30 deg.

  • Termination

    RJ45 10M / 100M Ethernet

  • Day/Night

    IR Cut Filter (ICR)

  • Color Night Vision

    Yes

  • Power Requirement

    PoE (Power over Ethernet, Class 2); 12V DC

  • Power Consumption

    Max. 500mA

  • Operating Temp. Range

    -22 to 140 deg. F / -30 to 60 deg. C

  • Operating Humidity Range

    < 95% RH

  • Environmental Rating

    Both (IP66)

  • Dimensions

    Dia. 4.8 x 3.5" / Dia.121.92 x 88.90mm

  • Weight

    Camera Alone: 1.2lbs / 0.54kg
    Camera & Wall Mount: 2.4lbs / 1.09kg

  • UPC Code

    695529004341

About Lorex LNZ32P4B

FEATURED REVIEWS

Excellent

By Alex B.

The camera installed quickly and as advertised. The PTZ features work well. I do miss the night vision and perhaps a little more mechanical zoom.

Introducing the LNZ32P4B 1080p HD Pan-Tilt-Zoom (PTZ) Camera - the perfect mix of DIY simplicity with high-grade performance. The fast pan-tilt-zoom capabilities of this camera allow you to view your world from every angle, both on-site and on-the-go. The advanced Color Night Vision (CNV) technology produces full color images at night to ensure you have informative video evidence in all lighting conditions. Remotely control the camera's movement from your NVR or a connected smartphone, tablet or computer. Program preset viewing patterns and tours to keep a vigilant watch over your property when you can't be there.

• High definition 1080p image sensor
• Powerful 4x optical zoom and 16x digital zoom to focus in on even the finest details
• Color Night Vision delivers full color nighttime video for improved recognition of objects low light conditions
• ClearNight imaging for improved low light performance and improved recording efficiency
• 355 deg. pan rotation for complete area coverage. Fast 100 deg. per second panning speed
• Control PTZ camera movement and transmit video over a single network cable
• Program preset viewing points and tours when connected to a NVR
• Remote control of the PTZ camera using a smartphone or tablet when connected to a NVR
• Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
• Infrared cut filter ensures accurate color representation
• Weatherproof (IP66-rated) camera with extreme temperature performance (-22 deg. 140 deg. F / -30 deg. 60 deg. C)
• Wall mount bracket & 100ft (30m) extension cable included for installation flexibility

Superior detail with 1080p HD resolution
View your world with the clarity that 1080p HD video has to offer. Gone are the days of choppy, black & white security footage - their advanced 2.1MP image sensors give incredible 1080p HD image quality with accurate color reproduction. Their LNZ32P4B Series PTZ Camera makes a great add-on to Lorex HD NVR security systems, providing unmatched coverage and detail that leaves nothing to the imagination.

See the entire scene with Pan/Tilt capability
Monitoring a large area comes with its share of obstacles - overcome those challenges with a camera that is truly all-seeing. Their advanced HD Pan/Tilt/Zoom (PTZ) camera is designed to look all around a scene with advanced 355 deg. rotation and 90 deg. tilt range. You can set the camera to move around automatically in a preset viewing pattern with quick 100 deg. per second panning or move the camera yourself in real-time using your NVR, smartphone, tablet or computer.

Powerful 4x optical zoom
No matter how many cameras your property has, there will always be scenes you want to get a little closer to. With 4x optical zoom, this camera can view fine details without losing picture quality. Powerful optical zooming combined with 16x digital zoom lets you examine any scene more closely. Zooming can be done on-the-go to capture unexpected events in enhanced detail or as part of a preset pattern.

Color Night Vision for full color images at night
Their exclusive Color Night Vision (CNV) lets you see fully colored images in low-light conditions for clear identification at night. Most security cameras rely on IR night vision in low-lighting, which only provides black & white images. Capture more informative video evidence with full-color images. This advanced PTZ camera also features ClearNight technology for exceptional low-light viewing in black & white when the environment is too dark for color imaging, so you never lose sight of important details.

Easy installation - one cable for video, power & PTZ control
Setup is quick and easy with only a single cable required to install the camera. The UL-compliant Ethernet cable provided is certified for in-wall use with a durable fire resistant jacket for added confidence. This single Ethernet cable:

• Carries HD video to your NVR
• Powers the security camera with no additional power adapters required (requires a Lorex HD NVR or PoE switch)
• Provides control over PTZ camera movement from your NVR or a connected smartphone, tablet or computer

Weatherproof with extreme temperature tolerance
Their rugged PTZ camera is fully weatherproof (IP66-rated) to ensure protection against all types of bad weather. Be it heavy wind, rain or snow - this camera is designed to stand up against bad weather and extreme temperatures as low as -22 deg. F (-30 deg. C) and up to 140 deg. F (60 deg. C) to ensure year-round security that never stops working. With both ceiling and wall mounting options, the included wall mount bracket is fully weatherproof for a trustworthy installation, indoors or outdoors.

• ONVIF Compliant: ONVIF is an open standard protocol for IP Network Cameras to communicate easily with Network Video Recorder (NVR) devices.
• Pan, Tilt & Zoom: Control the camera to Pan, Tilt and Zoom the viewing area.
• Indoor Outdoor: Camera performs both in outdoor and indoor applications.
• Night/Day Video: View video during the day and with night vision at night.

View your world from every angle with advanced pan-tilt-zoom capabilities and full 1080p HD video quality. Color Night Vision delivers full color nighttime video for clearer identification in low light conditions. Control the camera's movement remotely to view the entire scene from your NVR or from a connected smartphone, tablet or computer.

What's in the box:

  • Lorex LNZ32P4B 2.1MP 1080p Indoor/Outdoor HD PTZ Network Dome Camera
  • Wall Mount Bracket
  • 100' UL-Compliant Ethernet Cable
  • Mounting Kit
  • Instruction Manuals
  • Lorex 1 Year Limited Warranty
