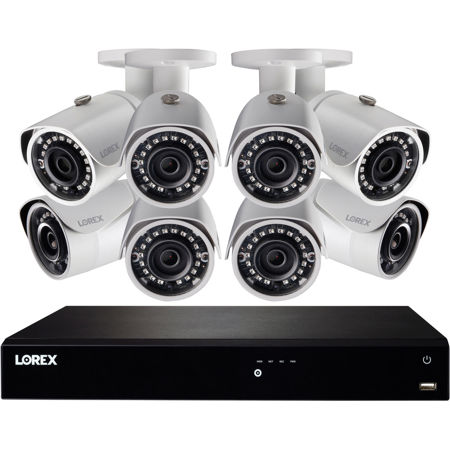

Lorex 4K HD 16-Channel Security System, Includes N861D63B 3TB HDD NVR and 8x E581CB-E 5MP Super HD IP Security Bullet Cameras with Night Vision 135'

SKU: LRXNK16385CB

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2022-09-24T20:00:00

Rated 5 out of 5

Easy To Use

This system replaced my other Lorex set up, I had it for over 10 years. The upgrade WITH all the cameras really makes this a great setup to purchase. If you are going to put in a security system, this is the one to get. I have 16 cameras around my home, there isn't a thing that moves, that I don't see on my office monitor.

Charles J.

2022-09-12T20:00:00

Rated 5 out of 5

Love it ! Just what

Love it ! Just what I expected

Carlos G.

2022-04-13T15:45:36

Rated 5 out of 5

Great

Like it very much

SULEMAN L.

2022-02-06T19:00:00

Rated 5 out of 5

Easy setup

The process to set it up was very easy

Jose F.

2022-01-10T19:00:00

Rated 5 out of 5

Purchase of replacement DVR

It is an upgrade to the previous DVR replacement, without incurring additional costs and changing of wires in the attic. I am pleased with the purchase. thanks to the sales team that assisted me in selecting this replacement unit. I have been with Lorex for over 10 years, and I really like their products and technical assistance.

Francisco P.

2021-12-07T19:00:00

Rated 5 out of 5

Everything is good.

Everything is good.

Cleveland P.

2021-11-30T19:00:00

Rated 5 out of 5

Very Nice

I thought my old one was broken but I got it going again after I bought this new replacement DVR with mouse. It's perfect. I just gave away my old one to family. It updates automatically, nicer interface the price was decent, and all my previously installed cameras blended into the new DVR flawlessly. I've always liked these affordable DVR Lorex cameras systems. Back in the day they were thousands of dollars. What more could I say.

Andrew C.

2021-03-09T19:00:00

Rated 5 out of 5

It?s works way better than the one I have.

John

2021-03-07T19:00:00

Rated 5 out of 5

Over the years, I've owned several camera systems for my business. This one is quite intuitive to set up. My only complaint is the adjustment on the cameras being set screws and a little cumbersome at times - you get the hang of it after a bit - I'd like to see a ball joint for adjustments, but this one does the trick eventually (let's face it, they're only being set up once). The video quality is top notch and the night vision is better than expected. Ran great out of the box with the exception of one wire which would have been annoying if I didn't have an extra, but I had an extra, so it wasn't that big of a deal. I'll eventually talk to customer service and see if I can get the wire replaced - I will update the review if I have a poor experience there, but I expect no issues - let's leave that part of it as no news is good news.

Wondering

2021-03-05T19:00:00

Rated 5 out of 5

Great system awesome price. Purchased from sames club. Very happy with this system

Kieth

2020-12-10T14:03:08

Rated 5 out of 5

Very satisfied with product.

I am amazed at the quality of the pictures. I definitely recommend this package.

DAVID H.

2020-11-05T15:09:47

Rated 5 out of 5

Very impressed

Beautiful cameras with very clear views and so many options! I feel so safe now

CHRISTINA M.

2020-05-31T20:00:00

Rated 5 out of 5

I researched many systems before purchasing this unit. I wanted a long-term solution for home surveillance that I did not have to rely on cloud technology for. All components of the system are quality. The only feedback I have it the quality of the CAT5 cables - they are thin and feel like that are not going to last long. However, the weatherproof connection at the end of the cable is a great feature! I ran the cables in a way that will allow for simple replacement if/when they fail over time. The video quality of outstanding! The system itself has been easy to use, but there are a few settings that I will need to refer to YouTube for guidance on. Spend the money and invest in this system for your home or office immediately.

PalmettoCJ

2019-12-29T19:00:00

Rated 4 out of 5

This system was very easy to install and operate. Amazing clarity, even in the dark!

JCS

Lorex 16-Ch Security System Specifications

N861D63B: NVR

N861D63B: NVR

Jump to...
  • Video Transmission Technology

    IP

  • Channels

    16

N861D63B: Inputs/Outputs

Jump to...
  • Video Inputs

    16x PoE

  • Video Outputs

    1x VGA
    1x HDMI

  • Audio Input

    1x RCA

  • Audio Output

    1x RCA

  • Alarm Inputs

    4

  • Alarm Outputs

    2

N861D63B: Display

Jump to...
  • Display Output Resolution

    Up to 4K UHD, Auto Detect

  • Live Display

    1, 4, 8, 9, 16

  • Live Display Speed

    4K UHD at 15 fps Maximum (Up to 4-Channels)

  • OSD

    On/Off

  • System Navigation

    USB Mouse

N861D63B: Recording

Jump to...
  • Recording Resolutions

    8 MP, 5 MP, 4 MP, 3 MP, 1920 x 1080, 1280 x 720

  • Recording Frame Rate

    Up to 30 fps

  • Recording Schedule

    Per-Channel: Continuous, Motion, Smart Motion (Person/Vehicle), Area, Alarm, Day, Hour

  • Backup File Format

    DAV, ASF, AVI, MP4

  • Video Compression

    H.265, H.264

N861D63B: Playback

Jump to...
  • Simultaneous Playback

    2-Channels: 4K UHD at 30 fps
    4-Channels: 4K UHD at 15 fps

  • Playback Speed

    Variable Max 16x

  • Search

    By Time/Date, All Motion Events or Smart Search (Person & Vehicle), Area Search

N861D63B: Storage

Jump to...
  • HDD Bay

    2

  • HDD Support

    2x HDD SATA
    3 TB Preinstalled

  • HDD Capacity

    20 TB

  • Backup Media

    USB Flash Drive & USB HDD

N861D63B: Special Features

Jump to...
  • Smart Motion Detection

    Person & Vehicle Smart Motion Detection (Up to 8-Channels)

N861D63B: Smart Home

Jump to...
  • Voice Control

    Amazon Alexa, Google Assistant

  • Streaming Options

    Chromecast, Apple TV, Amazon Echo Show

N861D63B: Connectivity

Jump to...
  • Mobile App

    Lorex Home for iOS and Android

  • Email Notification

    Text and Snapshot

  • Network Interface

    1x 1000M RJ45

  • Network Bit Rate

    200 Mb/s

  • DDNS

    Yes (Optional)

  • USB Interface

    2x USB 2.0

N861D63B: General

Jump to...
  • Firmware Upgrade

    USB, Network

  • Watchdog Function

    Yes

  • Power Consumption

    Approximately 13.2 W without HDD

  • Supply Voltage

    100 to 240 VAC, 50/60 Hz, 48 VDC, 2 A

  • PoE Power Output

    16 PoE: Maximum 25.5 W for Single Port
    130 W Total

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Humidity

    10 to 90% RH

  • Dimensions (W x D x H)

    14.7 x 12.9 x 2.1" (375 x 327 x 53mm)

  • Weight

    5.8 lb (2.6kg) without HDD

E581CB-E: Camera

Jump to...
  • Video Transmission Technology

    IP

  • Image Sensor

    5MP 1/2.7" CMOS

  • Video Format

    NTSC

  • Video Compression

    H.265/H.264H (Main Stream & Sub Stream)

E581CB-E: Optical

Jump to...
  • Viewing Angle (Horizontal)

    96 Degree

  • Lens/Lens type

    2.8mm F2.0/ Fixed

E581CB-E: Video Output

Jump to...
  • Resolution/Frame rate

    5MP @ 15fps

  • Effective Pixels

    H:2592 x V:1944

  • HDR

    Yes

  • Termination

    RJ45

E581CB-E: Audio

Jump to...
  • Microphone/Speaker

    No/No

E581CB-E: Night Vision

Jump to...
  • Night Vision Range

    135' (41m)/ 90' (28m)

  • Color Night Vision

    Yes

E581CB-E: Special Features

Jump to...
  • Deterrence

    No

  • Smart Features

    No

E581CB-E: General

Jump to...
  • Camera Housing Material

    Aluminum Alloy

  • Power Requirements

    PoE (Power over Ethernet)
    Class 0 / 12V DC

  • Power Consumption (max)

    550mA / 6.6W

  • Operating Temperature

    -40 - 122 Degree F (-20 - 50 Degree C)

  • Humidity

    < 95% RH

  • Environmental Rating

    IP67 (Indoor/Outdoor)

  • Dimensions

    2.9 x 7.2 x 2.9" (74 x 184 x 74mm)

  • Weight

    1.15 lb (0.52kg)

0 Accessories for Lorex 4K HD 16-Channel Security System, Includes N861D63B 3TB HDD NVR and 8x E581CB-E 5MP Super HD IP Security Bullet Cameras with Night Vision 135'

About Lorex 16-Ch Security System

Security Camera System featuring a 16-Channel 4K NVR and 8 2K (5MP) HD Cameras
Never miss out on important details with stunning high definition security footage. This powerful security camera system from Lorex will help you protect what matters most. Perfect for your home or business, this bundle features bullet cameras with high definition 5 megapixel (5MP) image sensors and our 16-channel N861 Series NVR. Everything you need for setup is included, giving you professional-grade security without needing professional installation.

E581CB-E 5MP Super HD IP Security Bullet Camera
Invest in a security camera that provides high definition video footage no matter what time of day it is. This new 5MP IP security camera by Lorex will give you the improved picture quality you need, along with Color Night Vision (CNV), long-range infrared (IR) night vision, and an IP67 weatherproof rating for around-the-clock monitoring you can depend on.

Get enhanced picture quality with 2K (5MP) resolution recording
Expect to see enhanced picture quality and more detail than ever before with this new 5MP security camera by Lorex. The camera's improved image sensor adds a heightened level of detail and clarity to your security footage when compared to 1080p Full HD.

Capture the best images with HDR
These cameras use HDR (High Dynamic Range) technology to ensure every important detail is captured, regardless of the lighting conditions. HDR automatically adjusts the brightness in areas that are either too dark or too over-exposed to decipher details. The result is improved, highly detailed video footage that looks uniform throughout.

Remote viewing from your mobile with Lorex Home
This system is designed for use with our innovative, hassle-free Lorex Home app. With Lorex Home, you can quickly and easily view your security system remotely through your smartphone or tablet. You can also program the app to send you motion-activated push notifications and email alerts with screenshot attachments straight to your phone to keep you connected to your property at all times. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor (or review footage).

Smart home compatibility
Get faster access to your security system with hands-free voice control. This security camera system is compatible with Amazon Alexa, Google Assistant, as well as Apple TV and Chromecast. By using simple voice commands, you can activate camera features and access live or recorded footage directly on your smart TV, and more.

View your system through Apple TV
Watch your Lorex system in new ways. Don't have an option of hooking up your Lorex recorder directly to your TV No problem. Simply make sure your Lorex recorder is on the same network as your Apple TV (Gen 4 or newer) and watch your Lorex recorder on your TV through the Lorex Home Apple TV App.

See in color through the night
With Lorex's exclusive Color Night Vision you'll be able to see full color images in low-light conditions. CNV gives you more detailed video footage and realistic images true to their original form (such as the color of cars or clothes). It also provides increased contrast for easier detection and recognition.

Long-range IR night vision
In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130' (40m) away and up to 90' (27m) in complete darkness.

Weatherproof & cold climate capable
Although this camera is suitable for both indoor and outdoor installation, its IP67 weatherproof rating and aluminum casing means it can withstand pretty much anything, such as heavy snowfall, rain or wind. It has also been tested in temperatures as low as -40 Degree F (-40 Degree C) and as high as 122 Degree F (50 Degree C), ensuring year-round monitoring no matter where you live.

HEVC compression
The cameras and NVR included in this bundle all use HEVC compression technology. HEVC stands for High Efficiency Video Compression (also known as H.265 or MPEG-H Part 2), and is used to compress video file sizes without any noticeable difference in quality.

PoE technology for simple plug-and-play installation
Power-over-Ethernet (PoE) technology is an all-in-one solution that cuts cost and installation time. A single cable run between your NVR and IP camera provides both power and video transmission so you don't have to install your camera near a plug.

Reliable security-grade hard drive preinstalled
A 3TB security grade hard drive (expandable up to 2 x 10TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.

Two storage bays
This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 10TB, giving you the potential for a total of 20TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up if the recording hard drive fails.

With or without the internet
This NVR can be used without being connected to the internet. This means that your data can only be accessed directly from your NVR. However, an internet connection is required to enable remote viewing, motion push notifications, and to download the latest firmware updates.

No Monthly Fees
There are absolutely no monthly fees associated with this security system. All video footage is safely stored on the security grade hard drive located within the recorder.

Connects directly to TVs and Monitors
Easily watch live video feeds or review video footage on most Monitors or HD TVs by using the included HDMI cable.

NVR Network Video Recorder
Security NVRs will connect to IP cameras using CAT5 network cables and will store pre-compressed video footage from IP cameras.

Lorex 16-Ch Security System Features

  • N861D63B NVR Features
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • A panic button is located on the recorder to activate all lights and sirens on your cameras
  • 2 bay hard drive with up to 2 x 10TB of storage space with no hidden monthly fees
  • Local built-in security grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Record and view video in up to 4K (8MP) Ultra HD resolution on all cameras
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity
  • Quickly access footage and features with simple voice commands (Compatible with: Amazon Alexa and Google Assistant)
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
  • E581CB-E Camera Features
  • View video with more than twice the resolution of 1080p, ensuring clear and detailed footage, every time
  • 96 Degree Field of View (horizontal)
  • Cameras automatically adjust to changing light conditions to ensure consistent video quality
  • No need to worry about dark areas or glare from sunlight effecting your video clarity, when HDR is turned on
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision (ambient lighting required)
  • Up to 135' (41m) IR night vision in low light and 90' (28m) it total darkness
  • Weatherproof Rated (IP67)
  • All-metal housing is built to withstand harsh weather conditions
  • Operates in temperatures as low as -40 Degree F (-40 Degree C) and high as 122 Degree F (50 Degree C)

Key Features

  • N861D63B NVR Highlights
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • A panic button is located on the recorder to activate all lights and sirens on your cameras
  • 2 bay hard drive with up to 2 x 10TB of storage space with no hidden monthly fees
  • E581CB-E Camera Highlights
  • 96 Degree Field of View (horizontal)

What's in the box:

  • N861D63B 4K HD 16-Channel 3TB HDD NVR
  • AC Power Adapter
  • USB Mouse
  • Ethernet Cable
  • HDMI Cable
  • 8x E581CB-E 5MP Super HD IP Security Bullet Cameras
  • Mounting Hardwares
  • 8x Mounting Template
  • 8x 100' Cat5e Ethernet Cable
  • Lorex 1 Year Limited Warranty
