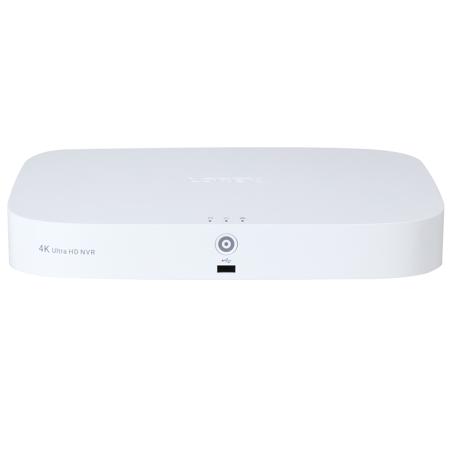

Lorex 4K Ultra HD 8-Channel 2TB Wired NVR Security System with 4x E892AB 4K IP Bullet Cameras

SKU: LRXYN843A82A

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lorex Security System Specifications

NVR: Inputs/Outputs

NVR: Inputs/Outputs

Jump to...
  • Video Input

    8x PoE

  • Video Outputs

    VGA/HDMI

  • Audio Input

    RCA

  • Audio Output

    RCA

NVR: Display

Jump to...
  • Display Output Resolution

    Up to 4K UHD

  • Live Display

    1,4,8

  • Live Display Speed (Max)

    240fps NTSC/200fps PAL

  • OSD

    On/Off

  • System Navigation

    USB Mouse

NVR: Recording

Jump to...
  • Recording Resolution

    4K (8MP)/5MP/4MP/3MP/1080p/720p

  • Recording Frame Rate

    4K (8MP)@15fps/5MP@30fps/4MP@30fps/1080p@30fps/720p@30fps

  • Recording Schedule

    Schedule recordings through Continuous, Motion, Smart Motion (Person, Vehicle and Face), Alarm, Day, Hour per channel

  • Back-up File Format

    DAV/ASF/AVI/MP4

  • Video Compression

    H.265/H.264

  • Playback Speed

    Variable Max 8 x

NVR: Playback

Jump to...
  • Simultaneous Playback

    Up to 4 channels, synchronized

  • Search

    By Time/Date, All Motion Events or Smart Motion (Person/Vehicle/ Face), Area Search

NVR: Storage

Jump to...
  • Hard Drive Bays

    1 Bay

  • Hard Drive Capacity

    Up to 8TB (SATA)

  • Backup Media

    USB Flash Drive & USB HDD

NVR: Special Features

Jump to...
  • Smart Motion Detection Support

    Yes for Person and Vehicle detection

  • Wired/Wireless Fusion support

    Yes

  • Lorex Sensor Compatible

    Yes

  • Face Detection Support

    Yes

  • Mask Detection Support

    Yes

  • Lorex Safeguard

    Yes (Missing Object and Object Left Behind):

  • Active Deterrence Support

    Yes

  • Active View Support

    Yes

  • Panic Button

    Yes

  • Smart Search

    Yes

NVR: Smart Home

Jump to...
  • Voice Control

    Amazon Alexa, Google Assistant

  • Streaming Options

    Chromecast, Apple TV, Amazon Echo Show, Google Home Hub

NVR: Connectivity

Jump to...
  • Mobile Viewing

    Android, iOS

  • Compatible APP

    Lorex Home

  • PC/Mac Remote Viewing

    Yes/Lorex Cloud client

  • Email Notification

    Text and Snapshot

  • Network Interface

    10/100 Base-TX, RJ45

  • Network Bit Rate

    80Mbps total, 48-8192kbps per camera

  • USB interface

    USB 2.0 x 2

NVR: General

Jump to...
  • Video Transmission Technology

    IP

  • Channels

    8 Channels

  • FW Upgrade

    USB/Network

  • Watchdog Function

    Yes

  • Power Consumption

    Approx. 8.3W (HDD excl.)

  • Supply Voltage

    100VAC-240VAC, 50/60hz, DC 53V/1.8A

  • Total PoE Power Output

    PoE: Max 25.5W for single port, 72W total

  • Operating Temperature

    14 Degree - 131 Degree F / -10 Degree - 55 Degree C

  • Humidity

    10 - 90% RH

  • Dimensions (W x D x H)

    12.9 x 9.6 x 2.1" (328 x 245 x 53mm)

  • Weight

    2.75 lbs (1.26kg) (excl. HDD)

Camera: Optical

Jump to...
  • Viewing Angle (Horizontal)

    108 Degree

  • Lens/Lens type

    2.8mm F2.0/ Fixed

Camera: Video Output

Jump to...
  • Resolution/Frame rate

    4K(8MP)@15fps, 5MP@30fps, 1080p@30fps, 720p@30fps

  • Effective Pixels

    H:3840 x V:2160

  • HDR

    Yes

  • Termination

    RJ45

Camera: Audio

Jump to...
  • Microphone/Speaker

    Yes/Yes

  • Siren

    Yes

  • 2-Way Talk

    Yes

Camera: Night Vision

Jump to...
  • IR Night Vision Range

    150' (45m)/ 98' (30m)

  • Color Night Vision

    Yes

Camera: Special Features

Jump to...
  • Smart Motion Detection Plus

    Yes - Person and Vehicle Detection

  • Face Detection

    Yes

  • Active View

    Yes

  • Safeguard

    Yes - object missing or left behind

  • Active Deterrence

    Yes - Warning Light + Siren + 2-Way Talk

Camera: General

Jump to...
  • Housing Material

    Aluminum Alloy

  • Power Requirements

    PoE (Power over Ethernet Class -802.3af)/12V DC

  • Power Consumption

    660mA / 9.5W (max)

  • Operating Temperature

    -22 Degree F - 140 Degree F /-30 Degree C - 60 Degree C

  • Humidity

    < 95% RH

  • Environmental Rating

    IP67 (Indoor/Outdoor)

  • Video Transmission Technology

    IP

  • Image Sensor

    8MP/4K 1/2.8" CMOS

  • Video Format

    NTSC

  • Video Compression

    H.265/H.264H (Main Stream & Sub Stream)

  • Dimensions (W x D x H)

    2.9 x 7.2 x 2.9" (74 x 184 x 74mm)

  • Weight

    17.6 oz (498.9g)

  • UPC Code

    695529031101

About Lorex Security System

By combining our latest N843 Series NVR and four 4K Smart Active Deterrence cameras, this security camera system will provide you a high quality recording and the smartest features to protect your property. Featuring Smart Motion Detection Plus, Active Deterrence LED lights and siren, two-way talk audio, this system is designed to stop potential events before happen. The NVR also includes a large 2TB hard drive for private local recording with no monthly fees and is easily connected to our Lorex Home App for easy remote viewing and smart motion notifications. As part of the Lorex Fusion collection, you can add up to 2 Lorex Wi-Fi products such as, Wi-Fi cameras, doorbells and floodlights. If you are looking to protect your home, small business or commercial property, this powerful security camera system will have you covered.

• 8 Channels 4K NVR Can Support Up To 8 Cameras
• 6 Cameras 6 x 4K Smart Deterrence IP Cameras
• 150FT Night Vision Maximum Night Vision Range
• 2TB Hard Drive Maximum capacity 1 x 8TB hard drive
• Works with Lorex Home App

Expand your system with the Fusion Collection
The Lorex Fusion Collection is a set of Network Video Records (NVRs) and wireless devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together wired and wireless systems!

Experience the 4K difference
Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation and superior digital zoom capabilities.

Smart Motion Detection Plus
Limit motion detection notifications with Smart Motion Detection Plus. This feature offers the option of either Face Detection or Person and Vehicle Detection.

Face Detection
Perfect for front doors and entranceways, Face Detection will only notify you of motion events when a person's face has been detected. This prevents motion notifications from people or vehicles simply passing by and not coming towards the camera4. You can also easily preview all the different faces that the camera has captured for quick reference on the NVR. You can also review and filter only face detection events in Smart Search.

Person and Vehicle Detection
Smart Person and Vehicle Detection helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. Recorded motion alerts can easily be reviewed by using the Smart Search function.

Take an active stance against uninvited guests
This camera comes with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can be customized to only be triggered when a person or vehicle is detected. Second, there is a remote-triggered siren that you can control from your Lorex Home app. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a warning alert.

Listen-in Audio and Two-Way Talk
A built-in speaker and microphone allows for crystal-clear audio functionality. Listen-in audio recording will add a whole new dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. This camera also has a speaker that allows you to communicate with others through the camera using the Lorex Home app.

Note: Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

Protect the things that matter with Safeguard
Lorex's Safeguard technology is perfect if you have very specific objects or areas that you need to to monitor. The feature allows you to set-up to three "Missing" areas and one "Left Behind" area. The Missing feature allows you to select important objects of value that you would want to be notified if they are removed from the area. Conversely, the Left Behind feature allows you to select an area to be notified if something is added.

See in color through the night
This camera features our revolutionary Color Night Vision (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects. In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 150ft (46m) away and up to 98ft (30m) in complete darkness.

Built for the outdoors
While this camera is suitable for both indoor and outdoor use, it has been especially designed to withstand the harsh impacts of nature. It has an IP67 rating, meaning it can tolerate extreme temperatures ranging from -22 Degree F to 140 Degree F (-30 Degree C to 60 Degree C). It also has a durable, all-metal housing for added protection.

• 140 Degree F (60 Degree C) Heat Rating
• -22 Degree F (-30 Degree C) Cold Rating
• IP67 Water Rating

Remote viewing from your mobile with Lorex Home
This NVR is designed for use with our innovative Lorex Home app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.

Works With:
• Apple iPhone
• Apple iPad
• Android Phone
• Android Tablet
• Apple TV

Smart home compatibility
Get faster access to your security system by connecting it to your other Smart Home devices. Use simple voice commands to activate camera features with Amazon Alexa and Google Assistant. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. Or download the Lorex Home app on your Apple TV to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.

Note: Requires Gen 4 or newer Apple TV with support for App Store

PoE plug-and-play installation
This 4K security camera system will be up and running in no time thanks to Power-over-Ethernet (PoE) technology. All that is required to connect each of your security cameras to your NVR is a single Cat5e ethernet cable run. This cable provides both power and video transmission up to 300 feet / 91m.

H.265 / HEVC encoding
This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.

Panic button
Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.

Reliable security grade hard drive with no hidden storage fees
Included in the NVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.

Lorex Security System Features

  • 4K Ultra HD 8-Channel 2TB Wired NVR Features
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all channels
  • Digitally zoom in on distant objects for better clarity
  • View synchronized playback of up to 4 cameras at the same time
  • Expand your security system with up to 8 IP cameras with built-in PoE ports
  • Pair your system with up to two Lorex Fusion compatible Wi-Fi products such as Wi-Fi cameras, doorbells, floodlights, and more
  • Stream and record continuous video from your Wi-Fi devices on your recorder
  • Wi-Fi cameras can now record continuously, taking advantage of the hard drive storage space
  • Quickly access your live footage with simple voice commands, compatible with Amazon and Google
  • Control your Active Deterrence cameras features with your voice (compatible with Google Assistant only)
  • Support for Smart Motion Detection - Get notifications with the Lorex Home App when motion is detected from a person or vehicle. Be notified when a person is not wearing mask
  • Use Smart Search to search through recorded footage and filter events for motion detected by person, vehicle or face
  • Max 8TB storage space with no hidden monthly cloud fees
  • Security Grade hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place
  • 4K IP Security Bullet Camera Features
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time
  • See more with a wide-angle 108 Degree field of view
  • Enhanced nighttime clarity with Color Night Vision
  • Up to 150ft (46m) IR night vision in low light and 98' (30m) in total darkness
  • Smart motion detection plus offers the option of either Face detection4 or Person and Vehicle Detection
  • Receive notifications when a person, vehicle or face is detected on your property from your Lorex Home app
  • Dual motion-activated LED warning lights can be set to be only be triggered when a person or vehicle is detected
  • Deter unwanted guests with the remote-activated siren
  • Built-in mic and speaker allows you to listen and speak to visitors with 2-way talk
  • Get notified when an object is removed or left behind in a selected area with Safeguard

Key Features

  • 4K Ultra HD 8-Channel 2TB Wired NVR Highlights
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all channels
  • Digitally zoom in on distant objects for better clarity
  • View synchronized playback of up to 4 cameras at the same time
  • 4K IP Security Bullet Camera Highlights
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time

What's in the box:

  • 4K Ultra HD 8-Channel 2TB Wired NVR (N843A82)
  • 4x 4K IP Bullet Cameras (E892AB)
  • AC Power Adapter
  • USB Mouse
  • Ethernet Cable
  • HDMI Cable
  • 4x Mounting Hardware
  • 4x 100' Cat5e Cable
  • Quick Setup Guide
  • Lorex 1 Year Limited Warranty
