Livestream Studio One 4K Desktop Encoder with 2x HDMI Inputs
See all Livestream items

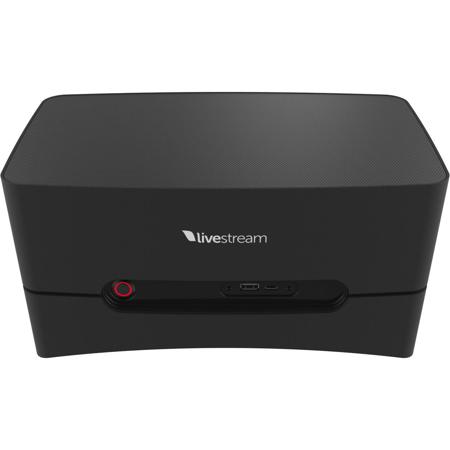

Livestream Studio One 4K Desktop Encoder with 2x HDMI Inputs

SKU: LSSTNE4KHDMI
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Livestream Studio One 4K Specifications

  • Inputs

    HDMI: 2 (4K)
    HD-SDI: 0
    NDI Input: 25
    Analog Audio (1/3") Input: 2

  • Output

    HDMI: 1 (HD)
    HD-SDI: 1
    NDI: 5
    Analog Audio (1/3"): 2

  • Embedded Audio Input

    4 Stereo or 32 Mono Inputs

  • Audio Monitoring (1/8")

    1

  • Media Sources

    7 integrated digital media sources for video & graphics playback. 2 DDRs (video clip playback with built-in transcoder), 2 GFX (graphics), 2 Color Bars / Background Color

  • Remote Camera

    10 x Remote camera module for ingesting video/audio over local WiFi or Ethernet network, downlinking streams, and Interviews via WebRTC

  • Format Converter

    Built-in broadcast quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats

  • Built-In Multiview

    On-screen full field rate multiview of all live inputs, Preview, Program Out, GFX and DDR, Audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens

  • External Multi-Screens

    1x Extended Screen output using HDMI

  • Video Switcher/Mixer

    Mixer & Effects (M/E) bank with no upstream keyer. Transitions: SMPTE Wipe, Cut & Fade (Auto transition with adjustable duration in frames, manual via on-screen T-BAR or keyboard shortcuts)

  • Graphics Downstream Key

    3 x Graphics DSK (downstream key) channels. One channel for GFX1, one channel for GFX2 and one channel for GFX3. Independent or locked transition controls (fade/cut/wipe). Preview on Multiview

  • Graphics & Titling

    Load JPG or PNG files (full transparency support with PNG files). Add text (set position/font/size/color) over any loaded image file within the GFX1, GFX2 or GFX3

  • Video clip Playback

    2 Media Players - Eject/Load clip. Play Pause/stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode. Mark In/Mark Out. Loop. Auto-play on transition

  • Recording

    Up to 4 simultaneous isolated source recordings. MJPEG with uncompressed audio or 1 MP4 Recording with AAC audio compression. Interlacing and timecode support. Full compatibility with Blackmagic Design Media Express and Adobe Premiere

  • Recording Capacity

    -20 hours at 1080i (Using 1TB built in HDD with recorder set to record at 100Mbps MJPEG AVI)

  • Live Streaming

    HD live streaming via Gigabit/100/10 built-in Ethernet. Presets in up to 4K

  • Streaming Quality

    Multiple simultaneous bit-rates (up to 4K 30fps), including mobile quality for playback on iOS/Android mobile devices

  • Streaming Destinations

    Vimeo, Facebook Live, Periscope, Ustream, YouTube Live, Akamai, Wowza Media Server, Twitch or any other RTMP compatible service

  • Audio Mixing

    Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones. Incorporated video switcher follow feature with audio crossfade support when fading two video sources.

  • Supported Video Formats

    4K: Up to 4Kp30
    HD: Up to 1080p60
    SD: 525i59.94 NTSC, 625i50 PAL

  • Video Processing

    8-bit 4:4:4

  • Audio Processing

    48 KHz, 24-bit

  • Playback Media Formats

    GFX: JPEG or PNG image files with transparency support. DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mp4, .mov & .avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3

  • Record Media Formats

    AVI MJPEG with uncompressed audio. MP4 with AAC audio compression.

  • Operating System

    Windows 10 Professional (64 bit)

  • CPU

    Intel Core i7-8700 Processor (12M Cache, up to 4.60 GHz)

  • Graphics Card

    Integrated Intel HD 630 Graphics

  • Storage

    1TB Western Digital Red SATA 2.5" hard drive

  • RAM

    16GB DDR4 RAM

  • Dimensions

    7.5 x 12 x 6.5" (190.5 x 304.8 x 165.1mm)

  • Weight

    6 lb (2.7kg)

About Livestream Studio One 4K

Livestream Studio One 4K HDMI Live Production Switcher - LS-STUDIOONE-4K-HDMI
At only 11 inches wide, the Livestream Studio One 4K HDMI Production Switcher and Encoder is an amazingly compact desktop device that doesn't spare on horsepower. With its 2x 4K HDMI inputs, the encoder is able to stream your content in 4K resolution to social networks or share a live event with anyone. The Studio One is great for small studios, schools, churches, or anyone who wants to broadcast professional-grade video without a steep learning curve.

Livestream Studio Software
Livestream Studio software allows the Studio One to perform all the tasks of a professional live production control room. Input multiple feeds, add graphics, master audio, and stream in one robust, easy-to-use package. Stream live to multiple destinations either directly or via Livestream/Vimeo simulcast service for optimized bandwidth use. Add live picture-in-picture or media sources, add layers of text, images, and video, move, distort, crop, and edit layers and connect multiple local or external data sources. With this software, you can invite anyone to join your live broadcast using only a Chrome browser and their webcam. Send participants a link generated from Studio and instantly see their live video over low latency WebRTC. Record up to four simultaneous videos in broadcast quality MJPEG to an AVI or MP4 file. These and many additional features make the Livestream system stand out from any competitor.

Livestream Studio One 4K Features

  • Two (2) input 4K HDMI input desktop live production switcher
  • Dedicated HD-SDI/HDMI program output
  • HDMI external monitor output
  • HD live streaming via built-in Gigabit/100/10 Ethernet
  • 1TB internal drive for up to 20 hours of video recording at 1080i
  • Livestream Studio software included
  • Livestream Studio keyboard included

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Two (2) input 4K HDMI input desktop live production switcher
  • Dedicated HD-SDI/HDMI program output
  • HDMI external monitor output
  • HD live streaming via built-in Gigabit/100/10 Ethernet
  • 1TB internal drive for up to 20 hours of video recording at 1080i
  • Livestream Studio software included

What's in the box:

  • Studio One 4K Desktop Encoder with 2x HDMI Inputs
  • Keyboard
  • Mouse
  • Mouse Pad
  • Bits & Bobs Box
  • USB Recovery Drive & Insert
  • Livestream 1 Year Warranty
