Livestream Studio One HD Desktop Encoder with 4x SDI Inputs
Livestream Studio One HD: Picture 1 thumbnail
Livestream Studio One HD: Picture 2 thumbnail
Livestream Studio One HD: Picture 3 thumbnail
Livestream Studio One HD: Picture 4 thumbnail
Livestream Studio One HD: Picture 5 thumbnail
See all Livestream items

Livestream Studio One HD Desktop Encoder with 4x SDI Inputs

SKU: LSSTNEHDSDI MFR: LS-STUDIOONE HD SDI
Be the first to review this itemAsk a Question
$5,575.00
OR
$465/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine video with the Studio One HD encoder's 4x SDI inputs.
  • Stream live to Vimeo, YouTube, & Facebook with reliable wireless connectivity.
  • Enjoy low latency and broadcast quality with the built-in format converter.
  • Create dynamic broadcasts using integrated media sources & graphics overlays.
  • Record up to 4 simultaneous isolated sources with the Studio One HD encoder.
  • Mix audio effortlessly with the integrated multi-channel audio mixer feature.
See More Product Details
Ships from Manufacturer?

Final Sale - No Returns or Exchanges

Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Livestream Studio One HD Specifications

  • Inputs

    HD-SDI: 4
    HDMI: 0
    NDI: 25
    Analog Audio (1/3"): 2

  • Output

    HD-SDI: 1
    HDMI: 1
    NDI: 5
    Analog Audio (1/3"): 2

  • Embedded Audio Input

    4 Stereo or 32 Mono Inputs

  • Audio Monitoring (1/8")

    1

  • Media Sources

    7 integrated digital media sources for video & graphics playback. 2 DDRs (video clip playback with built-in transcoder), 2 GFX (graphics), 2 Color Bars / Background Color

  • Remote Camera

    10 x Remote camera module for ingesting video/audio over local WiFi or Ethernet network, downlinking streams, and Interviews via WebRTC.

  • Format Converter

    Built-in broadcast quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats

  • Built-In Multiview

    On-screen full field rate multiview of all live inputs, Preview, Program Out, GFX and DDR, Audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens

  • External Multi-Screens

    1x Extended Screen output using HDMI

  • Video Switcher/Mixer

    Mixer & Effects (M/E) bank with no upstream keyer. Transitions: SMPTE Wipe, Cut & Fade (Auto transition with adjustable duration in frames, manual via on-screen T-BAR or keyboard shortcuts)

  • Graphics Downstream Key

    3 x Graphics DSK (downstream key) channels. One channel for GFX1, one channel for GFX2 and one channel for GFX3. Independent or locked transition controls (fade/cut/wipe). Preview on Multiview

  • Graphics & Titling

    Load JPG or PNG files (full transparency support with PNG files). Add text (set position/font/size/color) over any loaded image file within the GFX1, GFX2 or GFX3

  • Video clip Playback

    2 Media Players - Eject/Load clip. Play Pause/stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode. Mark In/Mark Out. Loop. Auto-play on transition

  • Recording

    Up to 4 simultaneous isolated source recordings. MJPEG with uncompressed audio or 1 MP4 Recording with AAC audio compression. Interlacing and timecode support. Full compatibility with Blackmagic Design Media Express and Adobe Premiere

  • Recording Capacity

    -20 hours at 1080i (Using 1TB built in HDD with recorder set to record at 100Mbps MJPEG AVI)

  • Live Streaming

    HD live streaming via Gigabit/100/10 built-in Ethernet. Presets in up to 4K

  • Streaming Quality

    Multiple simultaneous bit-rates (up to 4K 30fps), including mobile quality for playback on iOS/Android mobile devices

  • Streaming Destinations

    Vimeo, Facebook Live, Periscope, Ustream, YouTube Live, Akamai, Wowza Media Server, Twitch or any other RTMP compatible service

  • Audio Mixing

    Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones. Incorporated video switcher follow feature with audio crossfade support when fading two video sources

  • Supported Video Formats

    HD: Up to 1080p60
    SD: 525i59.94 NTSC, 625i50 PAL

  • Video Processing

    8-bit 4:4:4

  • Audio Processing

    48 KHz, 24-bit

  • Playback Media Formats

    GFX: JPEG or PNG image files with transparency support. DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mp4, .mov & .avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3

  • Record Media Formats

    AVI MJPEG with uncompressed audio. MP4 with AAC audio compression

  • Operating System

    Windows 10 Professional (64 bit)

  • CPU

    Intel Core i7-8700 Processor (12M Cache, up to 4.60 GHz)

  • Graphics Card

    Integrated Intel HD 630 Graphics

  • Storage

    1TB Western Digital Red SATA 2.5" hard drive

  • RAM

    16GB DDR4 RAM

  • Dimensions

    7.5 x 12 x 6.5" (190.5 x 304.8 x 165mm)

  • Weight

    6 lb (2.7kg)

  • UPC Code

    853359004843

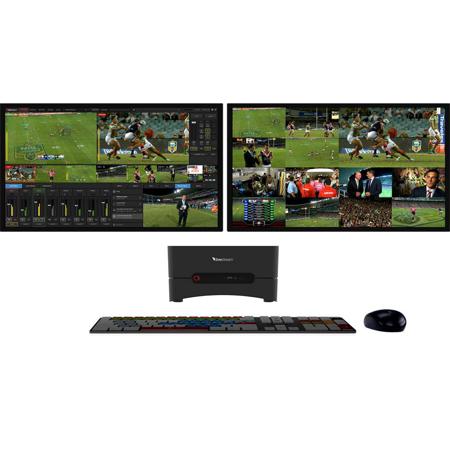

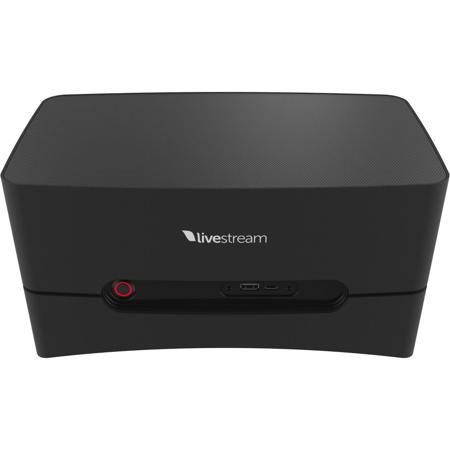

About Livestream Studio One HD

Where professional-grade live streaming meets compact design, the Livestream Studio One HD SDI Live Production Switcher and Encoder stands out. This durable and high-quality desktop device, measuring just 11 inches wide, is an innovative solution for broadcasting full HD content. It's equipped with 4x HD-SDI inputs, allowing for the simultaneous streaming of multiple sources, making it an ideal choice for a wide range of applications, from small studios to schools and churches.

The user-friendly Livestream Studio Software transforms the Studio One into a comprehensive live production control room. It enables you to input multiple feeds, integrate graphics, master audio, and stream live in one robust package. With the ability to stream directly or via Livestream/Vimeo simulcast service, you can optimize bandwidth usage while reaching multiple destinations.

The software also offers the flexibility to add live picture-in-picture or media sources, layer text, images, and video, and manipulate layers with ease. You can connect multiple local or external data sources, inviting anyone to join your live broadcast with just a Chrome browser and their webcam. Simply send participants a link generated from Studio and instantly see their live video over low latency WebRTC.

The Studio One also offers the capability to record up to four simultaneous videos in broadcast quality MJPEG to an AVI or MP4 file. This reliable and versatile live streaming device, backed by Livestream's reputation for quality, sets it apart from competitors in the market.

Livestream Studio One HD Features

  • Four (4) input HD-SDI input desktop live production switcher
  • Dedicated HD-SDI/HDMI program output
  • HDMI external monitor output
  • HD live streaming via built-in Gigabit/100/10 Ethernet
  • 1TB internal drive for up to 20 hours of video recording at 1080i
  • Livestream Studio software included
  • Livestream Studio keyboard included

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine video with the Studio One HD encoder's 4x SDI inputs.
  • Stream live to Vimeo, YouTube, & Facebook with reliable wireless connectivity.
  • Enjoy low latency and broadcast quality with the built-in format converter.
  • Create dynamic broadcasts using integrated media sources & graphics overlays.
  • Record up to 4 simultaneous isolated sources with the Studio One HD encoder.
  • Mix audio effortlessly with the integrated multi-channel audio mixer feature.

What's in the box:

  • Studio One HD Desktop Encoder with 4x SDI Inputs
  • Keyboard
  • Mouse
  • Mouse Pad
  • Bits & Bobs Box
  • USB Recovery Drive & Insert
  • Livestream 1 Year Warranty
