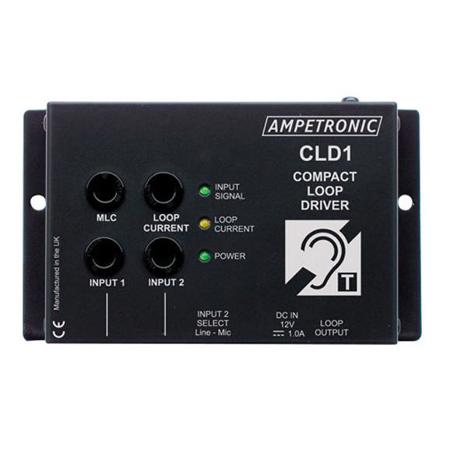

Listen Technologies CLD1 Compact Loop Driver without Microphone and Loop
See all Listen Technologies items

Listen Technologies CLD1 Compact Loop Driver without Microphone and Loop

SKU: LTCLD1XX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Listen Technologies CLD1-XX Specifications

Audio

Audio

Jump to...

  • Frequency Response

    80 Hz to 6.5 kHz +/- 3 dB

  • Maximum Output Level

    Correct system frequency response due to metal structures

  • Distortion

    THD+N < 0.2 %, 1 kHz Sine Wave at Full Current

  • AGC

    Optimized for Speech, Dynamic Range > 36 dB

  • Microphone Input

    Unbalaced 3.5mm Mono Connector for Electret Micorphone, 6 VDC Bias

Controls

Jump to...

  • Line Input

    Switchable Line/Microphone, Unbalaced 3.5mm Mono Connector

  • Gain Control

    Front recessed input level control

  • Metal Loss Correction

    Correct system frequency response due to metal structures

Indicators

Jump to...

  • Cooling

    Natural Convection

  • Drive Current Indication

    Front Panel LED Indicates Current Peaks

Loop

Jump to...

  • Loop Connector/s

    Level Cable Clamp

Power

Jump to...

  • Perimeter Loop - Coverage

    1:1 Aspect Ratio - 215 sq ft. (20 sq. m), 2:1 Aspect Ratio - 323 sq ft. (30 sq. m), 3:1 Aspect Ratio - 377 sq ft. (35 sq. m)
    Condition 1 - Loop must be 3-6 ft. (1-2 m) above or below the receiver height
    Condition 2 - There should be no metal structures in the plane of the loop
    Condition 3 - There must be sufficient voltage to drive the loop

  • VOX Switching

    To control prioritization of micorphone 1 input

  • Compliance

    UL Listed

  • Power

    12 VDC, 1.0 A, 18 W, 45-65 Hz, Power Switch/Led on Front Panel

  • Drive Voltage

    3.2 V (RMS), 4.5 V Peak at Maximum Output Current

  • Drive Current

    2.4 A (RMS), 3.4 A Peak with 1 kHz Sine Wave

  • Drive Current Peaks

    Short Term > 4.8 A

Environmental

Jump to...

  • Relative Humidity

    IP20 Protection
    20 to 90% Relative Humidity
    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

Physical

Jump to...

  • Mounting

    Freestanding, Wall Mounting

  • Compatibility

    DBC2.5-200/FSM/FSM+SCC/T-LOGO-SMALL/T-LOGO-LARGE/EM-1.2/EM195A/GE00001/LP-IL-1/LR-IL-1/Q400/FB1.8/LA-396-14/LA-397-16

  • Cable Length

    10 AWG - Max distance at full current - 268' (82m), 14 AWG - Max distance at full current - 247' (75m), 18 AWG - Max distance at full current - 168' (51m), 22 AWG - Max distance at full current - 94' (29m), FB1.8 - Max distance at full current - 328' (100m)

  • Dimensions (W x D x H)

    5 x 2.9 x 1.4" (128 x 74 x 35mm)

  • Weight

    15.87 oz (454g)

About Listen Technologies CLD1-XX

- CLD1 Compact Loop Driver -
The CLD1 Compact Loop Driver is designed for counter systems and small area perimeter loop systems. Measuring only 5 x 2.9 x 1.4 in. (128 x 74 x 35 mm) and with an output current of 2.4 A (RMS), the CLD1 is the smallest and highest performance amplifier in its class.

Based on proven and highly reliable technology it is backed by a 5 year warranty and Listen technical support. The CLD1 offers certainty of performance and the lowest lifetime cost available.

Audio quality is ensured with metal loss correction (MLC) combined with usual high standards of design. The CLD1 is designed for flexibility and convenience, featuring two (2) separate microphone inputs with independent level controls, one of which can be configured as a line input.

All cable connections are made on a single face of the unit, adding flexibility and further simplifying installation.

Listen Technologies CLD1-XX Features

  • Low lifetime cost
  • Very compact
  • Two independent inputs featuring, One microphone input and One switchable microphone/line input
  • Metal loss compensation
  • All connections to a single face for installation convenience

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Low lifetime cost
  • Very compact
  • Two independent inputs featuring, One microphone input and One switchable microphone/line input
  • Metal loss compensation
  • All connections to a single face for installation convenience

What's in the box:

  • CLD1 Compact Loop Driver
  • Handbook and Installation Instructions
  • 12 VDC Power Supply
  • Listen Technologies 5 Year Limited Warranty
