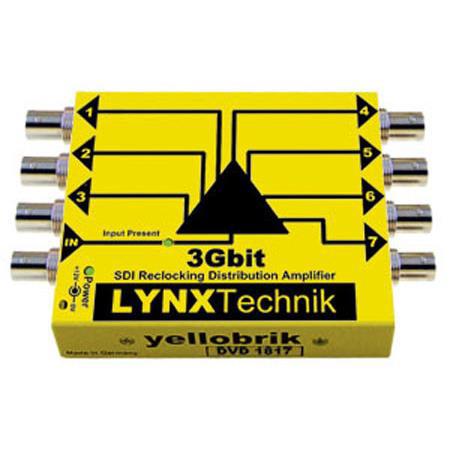

Lynx Technik AG yellobrik DVD 1817 3Gb 1x7 SDI Reclocking Distribution Amplifier
See all Lynx Technik AG items

Lynx Technik AG yellobrik DVD 1817 3Gbps 1x7 SDI Reclocking Distribution Amplifier

SKU: LTDVD1817
Be the first to review this item

This item is no longer available.

Recommended Alternatives

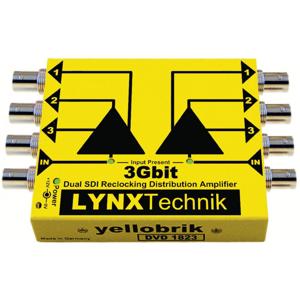

Lynx Technik AG DVD 1823: Picture 1 regular
Lynx Technik AG yellobrik DVD 1823 Dual SDI Reclocking Distribution Amplifier
$690.00$655.50
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lynx Technik AG DVD 1817 Specifications

  • Input

    1x SDI 75Ohms BNC connector

  • Input Standard

    SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    Multi-standard operation from 270Mbit/s to 2.97Gbit/s

  • Return Loss

    > 15dB to 1.5Gbit/s and > 10dB up to 3Gbit/s

  • Automatic cable EQ

    320m at 270Mbit/s, 160m at 1.5Gbit/s, 120m at 3Gbit/s (Belden 1694A cable)

  • Outputs

    7x multi-rate reclocked SDI outputs, 75Ohms BNC connectors

  • Output Standard

    SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI

  • Return Loss (Output)

    > 15dB to 1.5GHz > 10dB to 3GHz

  • Alignment Jitter

    < 0.2 UI at 270Mbit/s, < 0.2 UI at 1.5Gbit/s, < 0.3 UI at 2.97Gbit/s

  • Timing Jitter

    < 0.2 UI at 270Mbit/s, < 1.0 UI at 1.5Gbit/s, < 2.0 UI at 2.97Gbit/s

  • Power

    +12VDC at 1.3W nominal, (supports 7-24VDC input range)

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F

  • Humidity

    90% (non condensing)

  • Dimensions

    5.43 x 3.54 x 0.86" / 13.79 x 8.99 x 2.18cm (including connectors)

  • Weight

    8.46oz / 239.84g

About Lynx Technik AG DVD 1817

The DVD 1817 is a compact general purpose reclocking SDI distribution amplifier suitable for any level A or Level B SDI video signal up to 3Gbit (1080p60) including DVB-ASI signals. SMPTE 424M (3Gbit/s), SMPTE 292M (1.5Gbit/s) and SMPTE 259M (270Mbit/s) standards are supported.

Lynx Technik AG DVD 1817 Features

  • 1 input and 7 outputs
  • Suitable for SDI video up to 3Gbit/s (1080p60)
  • Level A and Level B support (all formats) and DVB-ASI
  • Reclocking
  • Auto-detect input format
  • Input present LED indication

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Reclocking

What's in the box:

  • Lynx Technik AG yellobrik DVD 1817 3Gbps 1x7 SDI Reclocking Distribution Amplifier
  • AC Power Supply
  • Lynx Technik AG yellobrik 3 Year Warranty
