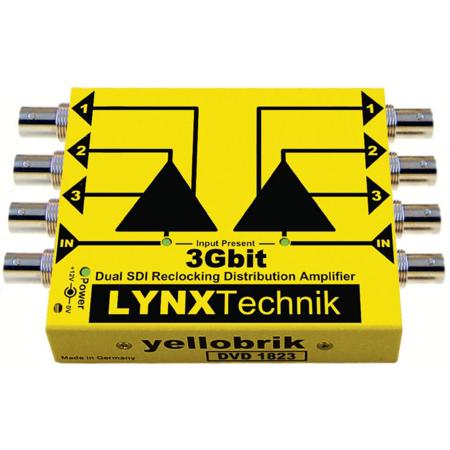

Lynx Technik AG yellobrik DVD 1823 Dual SDI Reclocking Distribution Amplifier
See all Lynx Technik AG items

Lynx Technik AG yellobrik DVD 1823 3Gbps 1x3 Dual SDI Reclocking Distribution Amplifier

SKU: LTDVD1823 MFR: DVD1823
Be the first to review this item1 question, 1 answer
$690.00
OR
$115/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enhance your video distribution with this 3Gbps SDI reclocking distribution amplifier.
  • Supports multi-standard operation from 270Mbit/s to 2.97Gbit/s for versatile video formats.
  • Ensure reliable connection with automatic cable EQ, up to 120m at 3Gbit/s (Belden 1694A).
  • Achieve high resolution video output with low jitter, maintaining signal integrity.
  • Dual SDI inputs and 3 outputs per channel for expanded video switching capabilities.
  • Compact yellobrik design ensures easy setup and integration into existing video systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Muhammad Tahir M : is it available in stock and can be reached within a week?ANDREW R : This item is NOT stocked in our warehouse, it is a DROP SHIP item. This item is typically shipped to you directly from Manufacturer within 7-14 Days. Delivery is subject to availability.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Lynx Technik AG DVD 1823 Specifications

  • Inputs

    2x SDI - 75Ohms BNC connector

  • Inputs Standards

    SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    Multi-standard operation from 270Mbit/s to 2.97Gbit/s

  • Input Return Loss

    > 15dB to 1.5Gbit/s and > 10dB up to 3Gbit/s

  • Automatic cable EQ

    320m at 270Mbit/s, 160m at 1.5Gbit/s, 120m at 3Gbit/s (Belden 1694A cable)

  • Outputs

    3x multi-rate reclocked SDI outputs per channel, 75Ohms BNC connectors

  • Outputs Standards

    SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI

  • Output Return Loss

    > 15dB to 1.5GHz > 10dB to 3GHz

  • Alignment Jitter

    < 0.2 UI at 270Mbit/s, < 0.2 UI at 1.5Gbit/s, < 0.3 UI at 2.97Gbit/s

  • Timing Jitter

    < 0.2 UI at 270Mbit/s, < 1.0 UI at 1.5Gbit/s, < 2.0 UI at 2.97Gbit/s

  • Power

    +12VDC at 2.1W nominal, (supports 7-16VDC input range)

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F

  • Humidity

    90% (non condensing)

  • Dimensions

    5.43 x 3.54 x 0.86" / 13.79 x 8.99 x 2.18cm (including connectors)

  • Weight

    8.46oz / 239.84g

  • UPC Code

    4250479359635

About Lynx Technik AG DVD 1823

A high-quality and reliable solution for video signal distribution, the yellobrik DVD 1823 3Gbps 1x3 Dual SDI Reclocking Distribution Amplifier is an advanced piece of equipment designed for professional use. This innovative device is capable of distributing a single SDI signal to three separate outputs, making it an invaluable tool for scenarios requiring multiple displays or devices to receive the same high-definition video signal.

Engineered by Lynx Technik AG, a leader in professional audio and video equipment, this durable distribution amplifier supports both Level A and Level B SDI video signals up to 3Gbit (1080p60), including DVB-ASI signals. It is compatible with SMPTE 424M (3Gbit/s), SMPTE 292M (1.5Gbit/s), and SMPTE 259M (270Mbit/s) standards, ensuring broad usability across various applications.

The yellobrik DVD 1823 is not just a standard distribution amplifier; it's a reclocking amplifier. This means it can regenerate the incoming signal, reducing signal degradation and ensuring a clear, stable image on all connected displays or devices. With a high bandwidth of 3Gbps, it can handle high-definition video signals with minimal signal loss, making it an ideal choice for professionals seeking superior performance in their video distribution needs.

Compact yet powerful, the yellobrik DVD 1823 3Gbps 1x3 Dual SDI Reclocking Distribution Amplifier is designed to deliver consistent, high-quality results in any professional audio and video setup.

Lynx Technik AG DVD 1823 Features

  • Dual channel
  • 1 input and 3 outputs per channel
  • Suitable for SDI video up to 3Gbit/s (1080p60)
  • Level A and Level B support (all formats) and DVB-ASI
  • Reclocking
  • Auto-detect input format
  • Input present LED indication for each channel

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your video distribution with this 3Gbps SDI reclocking distribution amplifier.
  • Supports multi-standard operation from 270Mbit/s to 2.97Gbit/s for versatile video formats.
  • Ensure reliable connection with automatic cable EQ, up to 120m at 3Gbit/s (Belden 1694A).
  • Achieve high resolution video output with low jitter, maintaining signal integrity.
  • Dual SDI inputs and 3 outputs per channel for expanded video switching capabilities.
  • Compact yellobrik design ensures easy setup and integration into existing video systems.

What's in the box:

  • Lynx Technik AG yellobrik DVD 1823 3Gbps 1x3 Dual SDI Reclocking Distribution Amplifier
  • AC Power Supply
  • Lynx Technik AG yellobrik 3 Year Warranty
