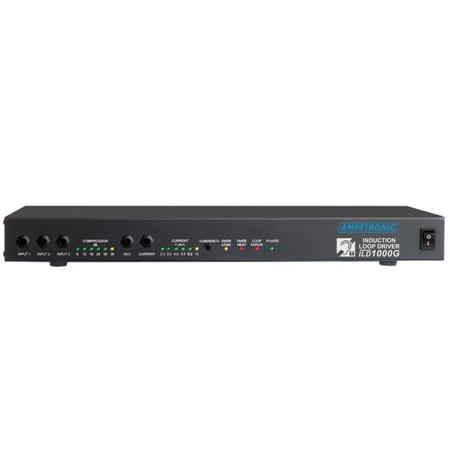

Listen Technologies ILD1000G Professional Loop Driver, 9.2 Amps
See all Listen Technologies items

Listen Technologies ILD1000G Professional Loop Driver, 9.2 Amps

SKU: LTILD1000G
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Listen Technologies ILD1000G Specifications

Audio

Audio

Jump to...

  • Frequency Response

    80 Hz to 6.5 kHz +/- 3 dB

  • Distortion

    THD+N < 0.2 %, 1 kHz Sine Wave at Full Current

  • AGC

    Optimized for Speech, Dynamic Range > 36 dB

  • Microphone Input

    XLR Balanced, -70 dBu Input, 200-6000 Ohms, +15 VDC Phantom Power

  • Line Input

    1/4 in. (6.4 mm), -30 dBu Input, Overload Protected

Controls

Jump to...

  • Gain Control

    Front recessed input level control

  • Metal Loss Correction

    Correct system frequency response due to metal structures

  • Cooling

    Forced Ventilation, Air Intake on Left Panel, Air Ejection at Rear

Indicators

Jump to...

  • Drive Current Indication

    6-LED Display Front Panel, 2 dB Increments

  • Fault Monitoring

    LED Fault Indicators, Overload, Overhead, Loop Error

  • Remote Fault Monitoring

    Relay Contacts

Interconnections

Jump to...

  • Microphone/Line Input

    XLR Mic or Line Switchable, -70 dBu Input, 200-6000 Ohms, +15 VDC Phantom Power

  • Slave I/O

    1/4 in. (6.4 mm), Insert Point for SP5 90 Degree Audio Phase Shifter, 0 dBu

  • Loop Connector/s

    Neutrik NL4 Speakon

  • Ancillary

    +/- 15 VDC, 0.15 A, Power Outlet to Power Accessories

Loop

Jump to...

  • Perimeter Loop - Coverage

    1:1 Aspect Ratio - 9,600 sq. ft. (890 sq m), 2:1 Aspect Ratio - 11,400 sq. ft. (1,060 sq m). 3:1 Aspect Ratio - 14,000 sq. ft. (1,300 sq m)

    Condition 1 - Loop must be 3-6 ft. (1-2 m) above or below the receiver height
    Condition 2 - There should be no metal structures in the plane of the loop
    Condition 3 - There must be sufficient voltage to drive the loop

  • Compliance

    ETL Listed

Power

Jump to...

  • Power

    120 VAC, 120W, 45-65 Hz, Power Switch/Led on Front Panel

  • Drive Voltage

    31.8 V (RMS) at Maximum Ouput Current

  • Drive Current

    9.2 A (RMS), 13.0 A (Peak) with 1 kHz Sine Wave

  • Drive Current Peaks

    Short Term > 19 A

Environmental

Jump to...

  • Relative Humidity

    IP20 Protection
    20 to 90% Relative Humidity
    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

Physical

Jump to...

  • Compatibility

    LP-IL-1/LR-IL-1

  • Requirements

    FB1.0-UL/FB1.8-UL/FB3.0-UL-50M/PWT/LA-396-14/LA-397-16/DBC2.5-200

  • Mounting

    Freestanding or Rack Mount

  • Cable Length

    10 AWG - Max distance at full current - 624' (190m), 12 AWG - Max distance at full current - 577' (176m), 18 AWG - Max distance at full current - 392' (119m), 22 AWG - Max distance at full current - 218' (66m), FB1.8 - Max distance at full current - 764' (233m)

  • Dimensions (W x D x H)

    8.7 x 1.7 x 16.9" (220 x 44 x x430mm)

  • Weight

    8.4 lb (3.75kg)

"T" Logo Installed Sign

Jump to...

  • Compatibility

    CLS1/CLS2/ILD1000G/ILD122/ILD300/ILD500/CLD1-CB/CLD1-CD/CLD1-CT/CLD1-CX/CLD1-XX/ILD100DC/MLD9/MLD5

  • Mounting

    Adhesive Include - Glass, Brick, Drywall, Wood

  • Dimensions (W x H)

    8.3 x 11.7" (210 x 297mm)

  • Weight

    < 1 lb. (.43kg)

About Listen Technologies ILD1000G

- ILD1000G Professional Loop Driver -
The ILD1000G is a professional audio hearing loop driver capable of driving loop areas in excess of 14,000 sq. ft. (1,300 sq. m) with an unsurpassed clarity of sound for both music and speech for superior intelligibility. Utilizing a new amplification technology, the ILD1000G provides the highest output available in a single amplifier, while halving power consumption and heat dissipation.

Based on proven and highly reliable technology it is backed by a 5 year warranty and Listen technical support. Improved power output provides outstanding value without compromise.

It boasts all the usual features such as metal loss correction and is compatible with our unique Ultra-low Spill technology. The ILD1000G is a compact and elegant unit suitable for freestanding, wall mounting or rack mounting.

Architectural Specs
The professional loop driver shall, in accordance with IEC60118-4, continuously deliver 9.2 A (RMS) when excited with a continuous 1 kHz sine wave. It shall cover an area of at least 14,000 sq. ft. (1,300 sq. m) with a room aspect ratio 3:1 according to IEC 60118-4:2006 standard. The driver shall have a frequency response of at least 80 Hz to 6.5 kHz +/- 3dB with THD+N less than 0.2%. The unit shall incorporate audio processing to maximize the intelligibility for individuals with a t-coil equipped hearing aid. The unit shall incorporate metal loss correction to rectify frequency caused adjacent metal structures. The unit shall occupy one rack space and rack mount brackets shall be included. The ILD1000G Professional Loop Driver is specified.


- "T" Logo Installed Adhesive Sign (Large) -
The T logo large sign is an important part of the American's with Disabilities Act compliance policy in that signage is used to identify the availability of hearing loop system. It is double sided and printed in standard blue color on .25 mm plastic sheet.

Features
Advertises the presence of a professional hearing loop system.

Architectural Specs
The t logo adhesive sign shall be double sided printed. The printing shall include the ½T½ logo. The T LOGO LARGE is specified.

Listen Technologies ILD1000G Features

  • Area coverage to 14,000 sq ft. (1,300 sq. m)
  • Low lifetime cost
  • Excellent proven reliability
  • Unparalleled sound quality and intelligibility
  • Automatic gain control optimized for speech
  • High voltage headroom avoids high frequency clipping
  • Metal loss corrector corrects frequency dependent loss from metal structures
  • Rack mount brackets included
  • Three inputs, microphone (XLR) and line inputs
  • Extensive input adapters available for any audio input requirements

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Area coverage to 14,000 sq ft. (1,300 sq. m)
  • Low lifetime cost
  • Excellent proven reliability
  • Unparalleled sound quality and intelligibility
  • Automatic gain control optimized for speech
  • High voltage headroom avoids high frequency clipping

What's in the box:

  • ILD1000G Professional Loop Driver (9.2 Amps)
  • Rack Mount Bracket
  • "T " Logo Installed Adhesive Sign (Large/11.7 x 8.3 ")
  • Line Cord (North America)
  • Neutrik NL4 Speakon Connector
  • Handbook and Installation Instructions
  • Listen Technologies 5 Year Limited Warranty
