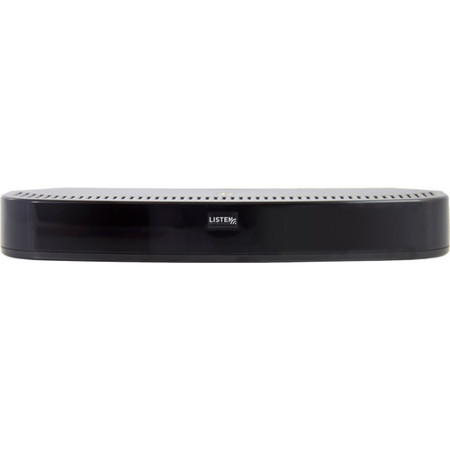

Listen Technologies LA-141 IR Expansion Radiator For LT-84 Only

SKU: LTLA141 MFR: LA-141
Earn VIP Reward Points

Key Features

  • Enhance your LT-84 system with the LA-141 IR expansion radiator for wider coverage.
  • Achieve crystal-clear audio in large venues using this expansion radiator's superior signal.
  • Simple setup: Mount on walls, ceilings, or tables with included hardware for convenience.
  • Extend assistive listening range up to 30,000 sq ft with LR-4200-IR/LR-5200-IR receivers.
  • Ensure consistent audio quality with low system distortion for seamless presentations.
  • Save energy with power save mode, which shuts off when no audio is present.
See More Product Details
Special Order?Estimated to Ship: 09/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies LA-141 Specifications

Audio
  • System Distortion

    < 2% (THD) System Specification (wireless end-to-end with LR-44)

  • System Signal to Noise Ratio

    (A-Weighted): > 60 dB (SNR) System Specification (wireless end-to-end with LR-44)

  • System Frequency Response

    63 Hz - 15 kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-44)

Controls

Jump to...
  • Indicator Lights On/Off Switch

    Two (2) position switch - Indicator Lights OFF, Indicator Lights ON

  • Delay Compensation

    Four (4) position rotary switch setting (0, 1, 2, 3)

Indicators

Jump to...
  • RJ-45 Amber LED

    Solid Amber indicates carrier is present and IR is being transmitted

  • RJ-45 Green LED

    Solid Green indicates power is applied to unit

  • Carrier Frequencies

    2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz

  • Number of Channels

    Two (2) channels

  • Power Save Mode

    Carrier will shut off when no audio is present for 15 minutes on both channels to preserve radiator life.

  • Expansion Link Output

    One (1) RJ-45 connector - Provides RF Signal and Power to one additional LA-141.CAT-5e cable 24 AWG, 100 ft. (30 m) maximum cable length, two (2) LA-141s per daisy chain (total daisy chain cannot extend beyond two expansion radiators)

  • Expansion Link Input

    One (1) RJ-45 connector - Receives RF Signal and Power from LT-84

  • Coverage Area

    30,000 ft square (2787 m square) single channel with LR-4200-IR/LR-5200-IR receivers or 7,500 ft square (697 m square) single channel with LR-42/LR-44 receivers

  • IR Emitter Power

    1.49 W

  • Power Supply

    12 VDC, Provided via LT-84 Expansion Link Output RJ-45s

  • Current Draw

    600 mA per LA-141, maximum of two (2) LA-141s daisy chained with CAT-5e cable 24 AWG 100 ft. (30 m) to each LT-84 Expansion Link Output

Environmental

Jump to...
  • Temperature - Operation

    14 Degree F (-10 Degree C) to +104 Degree F (40 Degree C)

  • Temperature - Storage

    -4 Degree F (-20 Degree C) to +122 Degree F (50 Degree C)

  • Relative Humidity

    0 to 95% relative humidity, non-condensing

Compliance

Jump to...
  • Standards

    FCC Part 15, ICS-03, CE, UL, CUL, C-Tick, CCC, PSE, KC, GS, RoHS, WEEE

Physical

Jump to...
  • Color

    Black with White Silk Screening

  • Mounting

    Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting Plate is available for mounting to a standard single gang electrical box.

  • Compatibility

    LT-84, LA-343, LA-344, LA-345, LA-303, LR-4200-IR, LR-5200-IR, LR-4200-IR-P1, LR-5200-IR-P1, LP-40-IR-01, LP-41-IR, LP-50-IR, LP-51-IR, LA-338, LR-X200-IR, LA-347-GY

  • Dimensions (H x W x D)

    1.5 x 10.7 x 4.1" (3.81 x 27.2 x 10.5cm)

  • Unit Weight

    0.6 lb (0.3kg)

About Listen Technologies LA-141

You can enhance your LT-84 Infrared Transmitter/Radiator combo system with the high-quality LA-141 Expansion Radiator from Listen Technologies. This innovative device is specifically designed to expand the functionality and coverage area of your LT-84 system, providing an uninterrupted, superior listening experience.

The LA-141 Expansion Radiator allows for the addition of up to four units to your LT-84 system, significantly increasing the coverage area. With LR-4200-IR/LR-5200-IR receivers, you can achieve additional coverage up to 30,000 square feet (2,787 square meters). Alternatively, with LR-42/LR-44 receivers in single-channel mode, you can extend the coverage up to 7,500 square feet (697 square meters).

This efficient and reliable expansion radiator is powered and connected via a single CAT-5e cable, ensuring a streamlined setup process. The included mounting hardware and single-cable design simplify the installation, making it a breeze even for those with limited technical knowledge.

The LA-141 Expansion Radiator is capable of receiving four mono carrier frequencies of 2.3, 2.8, 3.3, and 3.8 MHz over a proprietary RJ-45 Expansion Link. It also features an automatic deactivation of the IR emitting LEDs after 15 minutes of inactivity, conserving energy and extending the lifespan of the device.

When connected to a Trans-Radiator, the LA-141 ensures a system audio performance of 60 dB SNR or better, a THD of less than 2%, and a frequency response of 63 Hz to 15 kHz, +/- 3db. The device also provides delay compensation via two rotary four-position switches for up to two audio channels.

The LA-141 Expansion Radiator is a durable and reliable addition to your LT-84 system, allowing for an enhanced audio experience and expanded coverage area.

Listen Technologies LA-141 Features

  • The only product of its kind that provides complete, gap-less coverage in small- to mid-size spaces
  • Up to four radiators can be added to the LT-84 system providing additional coverage up to 2,787 m square (30,000 ft square)
  • Single-cable CAT-5e provides power and audio signal for ease of setup
  • Simple installation with the included mounting hardware

Product Documents

User Manual

Key Features

  • Enhance your LT-84 system with the LA-141 IR expansion radiator for wider coverage.
  • Achieve crystal-clear audio in large venues using this expansion radiator's superior signal.
  • Simple setup: Mount on walls, ceilings, or tables with included hardware for convenience.
  • Extend assistive listening range up to 30,000 sq ft with LR-4200-IR/LR-5200-IR receivers.
  • Ensure consistent audio quality with low system distortion for seamless presentations.
  • Save energy with power save mode, which shuts off when no audio is present.

What's in the box:

  • LA-141 ListenIR Expansion Radiator
  • 25' (7.6m) CAT-5e Cable
  • LA-344 Flexible Mounting Hardware
  • Quick Start Guide
  • Listen Technologies 3 Year Limited Warranty
