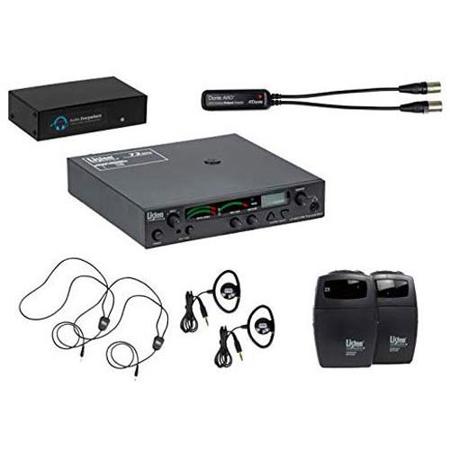

Listen Technologies Wi-Fi/RF Base Dante System, Includes LW-100P-02 LE 2-Channel Wi-Fi Server, LT-803-072-P1 Stationary 3-Channel Transmitter Package, 2x LR-3200-072 Basic DSP Receiver, 72 MHz, LA-401 Universal Ear Speaker, LA-466 Dante 2-Channel Output XLR Adapter

SKU: LTLCS12001D MFR: LCS-120-01-D
Earn VIP Reward Points

Key Features

  • Enhance accessibility with this Wi-Fi/RF base Dante system for assistive listening.
  • Ensure crystal-clear audio with the included LR-3200-072 DSP receiver (72 MHz).
  • Experience seamless connectivity using the LW-100P-02 LE 2-Channel Wi-Fi server.
  • Ideal for presentations, offering superior sound quality and easy setup.
  • Includes LA-401 universal ear speakers for personal listening and clear audio.
  • Expand your audio capabilities with the LT-803-072-P1 3-channel transmitter package.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies Wi-Fi/RF Base System Specifications

Included

Included

Jump to...
  • Additional Included Items

    LA-401 Universal Ear Speaker - LA-434 Earphone Extension Cable
    2x LA-430 Intelligent Ear Phone/Neck Loop Lanyard
    LA-423 4-Port USB Charger
    4x LA-422 USB to Micro USB Cable
    LA-466 Dante 2 Channel Output XLR Adapter

LW-100P-02 Server

Jump to...
  • Audio Inputs

    Terminal Block: Two analog inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm

    RCA: Two analog inputs, rear panel, one dual summing RCA connector per input, unbalanced, -10 dBu (line) nominal input level, +2 dBu maximum input level, impedance 100k ohm

  • Ethernet

    RJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.

  • USB

    Type A 2.0 (female)

  • Connector

    5 VDC Barrel

  • Input Voltage

    100-240 VAC, 50-60Hz

  • Output Voltage

    5 VDC

  • Current

    6.0 A

  • Power

    30 W

  • Countries

    North American, UK, EU, AUS

  • IP Address

    DHCP, Static, Reserved

  • Prioritization

    QoS/ToS

  • Users

    1000 (per server)

  • Max Channels

    2 mono (1 stereo)

  • WAP Support

    802.11n or better w/WMM enabled

  • Supported WAP Frequencies

    2.4 GHz & 5 GHz

  • Bandwidth Use

    Approx. 140 kbps per user

  • App Support

    iOS/Android

  • Cloud Service

    Yes

  • Regulatory

    FCC, CE, RoHS

  • Dimensions (H x W x D)

    1.77 x 6.69 x 3.94" (45 x 170 x 100mm)

  • Weight

    20.8 oz (590g)

W-202 LE Venue Awareness Kit

Jump to...
  • Compatibility

    LW-100P-02/LW-200P-04/LW-200P-08/LW-200P-12/LW-200P-16/MX5-1/MX3-4/MX3-8/MX3-12/MX3-16

LT-803-072-P1 Transmitter

Jump to...
  • Compatibility

    LR-200-072

LPT-A107-B RCA Cable

Jump to...
  • Connectors

    Dual RCA (male) to Dual RCA (male)

  • Cable Length

    6.6' (2m)

  • Weight

    1.75 oz (49g)

LR-3200-072 DSP Receiver

Jump to...
  • System Distortion

    < 1% total harmonic distortion (THD) at 80% deviation

  • Output/s

    Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 50 mW maximum, impedance 32 ohm

  • System Frequency Response

    50 Hz - 15 kHz ( +/-3 dB)

  • System Signal to Noise Ratio

    SQ disabled 70 dB, SQ enabled 80 dB

  • User Controls

    Power, up/down volume

  • Programming

    Via software and USB port

  • Set-up Controls

    Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

  • LEDs

    Flashes when batteries are low or to indicate charging, solid when fully charged

  • Frequency Range

    72.0250 - 75.9500 MHz

  • Number of Channels

    Basic Mode: 3 wide Band, Expand Mode: 17 wide band

  • Sensitivity

    .6uV typical, 1 uV maximum for 12 dB sinad

  • Frequency Accuracy

    +/- .005% stability 32 to 122 Degree F (0 to 50 Degree C)

  • Squelch

    Fixed level, automatic on loss of RF signal

  • Antenna Type

    Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable

  • Battery Type

    Lithium Ion 3.7 Vdc, 1200 mAh

  • Battery Life

    24 Hours of continuous use

  • Battery Charging Time

    Fully charged in 2.5 Hours

  • Power Supply

    Micro USB connector, 5 V, 500 mA

  • Temperature

    Operation: 14 F to 104 Degree F (-10 C to +40 Degree C)
    Storage: -4 F to 122 Degree F (-20 C to +50 Degree C)

  • Relative Humidity

    0 to 95% relative humidity, non-condensing

  • Standards

    FCC Part 15 Class B, Industry Canada ICES-3 (B), RoHS

  • Color

    Black

  • Compatibility

    LT-800-072-01/LT-700-072/LT-803-072-01

  • Requirements

    LA-401/LA-402/LA-403/LA-404/LA-405/LA-430/LA-381/LA-380/LA-421/LA-423/LA-422

  • Dimensions (H x W x D)

    3.75 x 2.00 x 0.64" (9.6 x 5 x 1.7cm)
    with Belt Clip: 3.75 x 2.00 x 0.80" (9.6 x 5.0 x 2.1cm)

  • Weight

    1.60 oz (45g)
    with Batteries: 2.40 oz (68g)

LA-401 Ear Speaker

Jump to...
  • Frequency Response

    20 Hz - 20 kHz

  • Impedance

    32 ohm +/- 15% @ 1 kHz

  • Input Sensitivity

    115 dB +/- 4dB @ 1 kHz, 1 mW

  • Rated Power Input

    50 mW

  • Max Power Input

    100 mW

  • Connector/s

    Male 3.5 mm (TRS)

  • Standards

    RoHS

  • Color

    Dark Gray

  • Compatibility

    LR-300-072/LR-44/LR-200-072/LR-400-072/LR-500-072/LP-IL-1/LR-IL-1/R32/R8/LR-400-216/LR-500-216/LR-4200-072/LR-5200-216/LR-5200-072/LR-4200-216/MH-5200-072/MH-4200-072/LR-4200-IR/LR-5200-IR

  • Cable Length

    13" (33cm)
    Extension cable: 28" (71cm)

  • Weight

    0.40 oz (11g)

LA-430 Loop Lanyard

Jump to...
  • Connection to Receiver

    Male 3.5 mm (TRRS) to Male 3.5 mm (TRRS)

  • Connection to Short Ear Phone

    Female 3.5 mm (TRS)

  • Neck Loop Field Strength

    400 mA/m (+/- 3dB)

  • Neck Loop Frequency Response

    100Hz to 5kHz (+/- 3 dB ref 1kHz)

  • Standards

    RoHS, IEC60118-4

  • Color

    Black

  • Compatibility

    LR-4200-072/LA-401/LA-405/LA-404/LA-403/LA-402/LR-5200-216/LR-5200-072/LR-4200-216MH-5200-072/MH-4200-072/LR-4200-IR/LR-5200-IR

  • Cord Length

    29" (74cm)

  • Weight

    1.50 oz (43g)

LA-423 USB Charger

Jump to...
  • Power Supply

    Input: 100-240 V, 50-60 Hz, 0.5 A
    Output: 5.0 VDC, 4.2 A

  • Standards

    UL, FCC, RoHS

  • Color

    Black

  • Compatibility

    LA-422

  • Cable Length

    36" (92cm)

  • Cable Type

    4 - USB to Micro USB Cables (LA-422)

  • Dimensions (H x W x D)

    2.44 x 2.90 x 1.13" (62 x 74 x 29mm)

  • Weight

    7.80 oz (221g)

LA-466 Dante XLR Adapter

Jump to...
  • Type Required

    Power Over Ethernet Switch or 802.3af Compliant POE Injecto

  • Color

    Black

  • Compatibility

    LT-84/MX5-1/MX3-4/MX3-8/MX3-12/MX3-16/LA-507

  • Cable Length

    11" (28cm)

  • Audio Connection

    XLR

  • Dimensions (H x W x D)

    4.5 x 1.38 x 1.13" (11.43 x 3.51 x 2.86cm)

  • Weight

    0.35 lb (0.16kg)

About Listen Technologies Wi-Fi/RF Base System

How to seamlessly integrate cutting-edge audio distribution into your venue Look no further than our Wi-Fi/RF Base Dante System. This comprehensive package merges the convenience of Wi-Fi with the reliability of RF technology, ensuring ADA & IBC compliant audio coverage that extends to any user with a smartphone or tablet. The system is enhanced by Dante's multi-channel digital media networking capabilities, allowing for high-quality audio streaming across various devices.

The core of this system is the LW-100P-02 LE 2-Channel Wi-Fi Server, designed to accommodate up to 1000 users simultaneously. It connects effortlessly to your existing Wi-Fi network, delivering audio through a user-friendly mobile app. Cloud-based management simplifies system administration, from updates to customization, including personalized welcome messages and promotional content.

Included in this package is the LT-803-072-P1 Stationary 3-Channel Transmitter Package, operating at 72 MHz. It features the LT-803-072 Stationary RF Transmitter, LA-106 Telescoping Top-Mounted Antenna, and LA-304 Assistive Listening Notification Signage Kit. This setup offers a straightforward solution for installing a 72 MHz system, complete with digital signal broadcasting across three channels and both balanced and unbalanced audio inputs.

The LR-3200-072 Basic DSP Receiver is a testament to Listen Technologies' commitment to audio clarity and quality. As part of the iDSP line, it stands out as the smallest device in its class, ensuring user comfort without compromising on performance. The integrated neck loop/lanyard and DSP loop driver enhance the listening experience for T-coil hearing aid users, while dual 3.5mm output jacks allow for shared use. The micro USB connection facilitates charging and programming through free iDSP software.

For personal listening, the LA-401 Universal Ear Speaker offers a high-quality audio experience with the flexibility to hear ambient sounds. Its universal design is compatible with hearing aids, and it can be worn with the integrated neck loop/lanyard or discreetly in a pocket.

The LA-430 Intelligent Ear Phone/Neck Loop Lanyard features an advanced DSP loop driver, optimizing speech and signal levels for telecoil-equipped hearing aids and cochlear implants. Its quick-release design ensures user safety in various environments.

Charging multiple devices is made effortless with the LA-423 4 Port USB Charger, a compact solution for smaller venues. Its fold-away plug blades and LED charge indicator add to its convenience.

Finally, the LA-466 Dante 2-Channel Output XLR Adapter bridges your Dante network with analog line-level equipment, ensuring a smooth transition between digital and analog audio systems.

This Wi-Fi/RF Base Dante System is not just a solution for assistive listening compliance; it's an investment in providing an inclusive and enhanced auditory experience for all your guests and clients.

Listen Technologies Wi-Fi/RF Base System Features

  • Extended Reach
  • Dante Capabilities
  • Free Smartphone App

Product Documents

User Manual

Key Features

  • Enhance accessibility with this Wi-Fi/RF base Dante system for assistive listening.
  • Ensure crystal-clear audio with the included LR-3200-072 DSP receiver (72 MHz).
  • Experience seamless connectivity using the LW-100P-02 LE 2-Channel Wi-Fi server.
  • Ideal for presentations, offering superior sound quality and easy setup.
  • Includes LA-401 universal ear speakers for personal listening and clear audio.
  • Expand your audio capabilities with the LT-803-072-P1 3-channel transmitter package.

What's in the box:

  • LW-100P-02 Listen Everywhere 2 Channel Server with Power Supply
  • 100x Leave Behind Cards
  • 2x Window Clings
  • 2x Display Posters
  • 2x Table Tents
  • LT-803-072 Stationary 3-Channel RF Transmitter (72 MHz)
  • Power supply
  • Line Cord
  • Quick Reference Card
  • LA-106 Telescoping Top Mounted Antenna (72 MHz)
  • LA-304 Assistive Listening Notification Signage Kit
  • LPT-A107-B Dual RCA to Dual RCA Cable 6.6' (2m)
  • LR-3200-072 Basic DSP Receiver (72 MHz)
  • Listen Technologies 5 Year Limited Warranty
