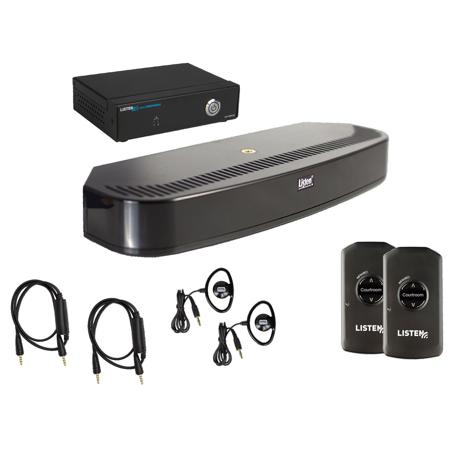

Listen Technologies Wi-Fi/IR Advanced System, Includes LW-100P-02 Listen Everywhere 2-Channel Server with Power Supply, LT-84 ListenIR 2-Channel Transmitter/Radiator Combo, LA-344 Flexible Mounting Hardware

Barrel to Barrel Cable (6")
LPT-A107-B Dual RCA to Dual RCA Cable (6.6')
2x LR-4200-IR Intelligent DSP IR Receiver
2x LA-401 Universal Ear Speaker
2x LA-434 Earphone Extension Cable
2x LA-430 Intelligent Ear Phone/Neck Loop Lanyard
LA-423 4-Port USB Charger
4x LA-422 USB to Micro USB Cable

Terminal Block: Two analog inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm

RCA: Two analog inputs, rear panel, one dual summing RCA connector per input, unbalanced, -10 dBu (line) nominal input level, +2 dBu maximum input level, impedance 100k ohm

RJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.

Type A 2.0 (female)

5 VDC Barrel

100-240 VAC, 50-60Hz

5 VDC

6.0 A

30 W

North American, UK, EU, AUS

DHCP, Static, Reserved

QoS/ToS

1000 (per server)

2 mono (1 stereo)

802.11n or better w/ WMM enabled

2.4 GHz & 5 GHz

Approx. 140 kbps per user

iOS/Android

Yes

FCC, CE, RoHS

1.77 x 6.69 x 3.94" (45 x 170 x 100mm)

20.8 oz (590g)

LW-100P-02/LW-200P-04/LW-200P-08/LW-200P-12/LW-200P-16/MX5-1/MX3-4/MX3-8/MX3-12/MX3-16

20 Hz - 20 kHz (+/- 1 dB) Line Input63 Hz - 15 kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-44)

> 70 dB (SNR) Line Input> 60 dB (SNR) System Specification (wireless end-to-end with LR-44)

Two (2) 3.5 mm (0.14 in.) Tip/Sleeve connector, -30 dBu nominal input, +14 dB headroom, impedance 4.4k Ohms, 5 VDC bias supply

< 0.1% (THD) Line Input< 2% (THD) System Specification (wireless end-to-end with LR-44)

Stereo/Mono Input. Two (2) Dual (RCA) Phono connectors, unbalanced, -10 dBu nominal input, +14 dB headroom, impedance 10k Ohms

Mono Input. Two (2) Phoenix Type connector, balanced, + 4 dBu nominal input, +14 dB headroom, impedance 100k Ohms

Three (3) position switch - Power OFF, Power ON-Indicator Lights OFF, Power ON-Indicator Lights ON

Two (2), four (4) position rotary switches (2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz)

Two (2) audio taper rotary potentiometer, counter-clockwise decreases input mix level, clockwise increases input mix level

Green LED on in-line power supply indicates AC power is applied

Two (2) Green LEDs, two (2) Red LEDs, Green LED indicates Audio presence and Red LED indicates peaks in the audio

Solid Amber indicates carrier is present and IR is being transmitted

Solid Green indicates power is applied to unit, flashing indicates unit has entered power save mode

2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz, Selectable

Two (2) channels, Selectable carrier frequency

+/- .005% stability 0 to 50 Degree C

50 PPM

FM Wideband, +/-50kHz deviation max, 50 ?S pre-emphasis

Carrier will shut off when no audio is present for 15 minutes on both channels to preserve radiator life

Two (2) RJ-45 connectors - Provides RF Signal and Power, CAT-5e cable 24 AWG, 100 ft. maximum cable length, two (2) LA-141s per output connector

2,787 sq m (30,000 ft 2) single channel with LR-4200-IR/LR-5200-IR receivers or 697 sq m (7,500 ft 2) single channel with LR-42/LR-44 receivers

1.49 W

100-240 VAC, 50-60 Hz

12 VDC, 4 A, 48 W

0.02" (5mm) OD, 0.01" (2.5mm) ID, barrel type

Two (2) RJ-45 connectors. providing Power and RF signal for up to two (2) LA-141 expansion radiators on each output

In-line switching mode power supply, Listen part number LA-210

IEC line cord, North America Type B (LT-84-01), Asia and UK Type G (LT-84-02), Euro Type C (LT-84-03), Australia Type I (LT-84-04)

Operation: 14 F to 104 Degree F (-10 C to +40 Degree C)
Storage: -4 F to 122 Degree F (-20 C to +50 Degree C)

0 to 95% relative humidity, non-condensing

FCC part 15, ICS-03, CE, UL, CUL, C-Tick, CCC, PSE, KC, GS, RoHS, WEEE

CUL, UL, CE, CCC, C-Tick, KC, PSE, GS, FCC, RoHS

Black with White Silk Screening

LR-42/LR-44/LPT-A117/LA-141/LR-4200-IR/LR-5200-IR/LR-4200-IR-P1/LR-5200-IR-P1/LP-40-IR-01/LP-41-IR/LP-50-IR/LP-51-IR

Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting Plate is available for mounting to a standard single gang electrical box.

1.5 x 10.7 x 4.1" (3.81 x 27.2 x 10.5cm)

12.8 oz (400g)
with Power Supply: 28.8 lb (800g)

Black

LT-84

DC plug type, .2 in (5.5 mm) OD, center positive and RJ45

1 lb (454g)

Dual RCA (male) to Dual RCA (male)

6.6' (2m)

1.75 oz (49g)

< 2% total harmonic distortion (THD) at 80% deviation

Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard

63 Hz - 15 kHz ( +/-3 dB)

> 60 dB

Power on/off and volume up/down

Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name

Press and hold up/down volume buttons for 5 seconds to enterchannel adjust, use up/down to select channel

OLED - Channel designation, battery level, unit number, charging status, volume status

Flashes when batteries are low or to indicate charging, solid when fully charged

2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz

Four (4) selectable channels

+/- .005% stability 32 to 122 Degree F (0 to 50 Degree C)

FM Wideband, +/-50 kHz deviation max, 50 uS de-emphasis

30,000 ft 2 (2787 sq m) single channel with LT-84/LA-141 or 40,000 ft 2 (3716 sq m) single channel with LT-82/LA-140

Programmable in 20 steps, automatic on loss of IR signal

Turns unit off after a specified time of no IR signal, default is 30 minutes

Better than one (1) nW/cm2 @40 dB SNR

Micro USB connector, 5 V, 500 mA

Lithium Ion

8 Hours of typical use

Fully charged in 2.5 Hours

Operation: 14 F to 104 Degree F (-10 C to +40 Degree C)
Storage: -4 F to 122 Degree F (-20 C to +50 Degree C)

0 to 95% relative humidity, non-condensing

FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706

Flat Black

LA-140/LT-82/LA-365/LA-401/LA-381/LA-405/LA-404/LA-403/LA-402/LA-380/LA-430/LT-84/LA-141/LA-382

LA-381/LA-380/LA-423/LA-422/LA-421

3.75 x 2.00 x 0.64" (9.6 x 5 x 1.7cm)
With Belt Clip: 3.75 x 2.00 x 0.8" (9.6 x 5.0 x 2.1cm)

1.9 oz (53.9g)
with Batteries: 2.8 oz (79.4g)

20 Hz - 20 kHz

32 ohm +/- 15% @ 1 kHz

115 dB +/- 4dB @ 1 kHz, 1 mW

50 mW

100 mW

Male 3.5 mm (TRS)

RoHS

Dark Gray

LR-300-072/LR-44/LR-200-072/LR-400-072/LR-500-072/LP-IL-1/LR-IL-1/R32/R8/LR-400-216/LR-500-216/LR-4200-072/LR-5200-216/LR-5200-072/LR-4200-216/MH-5200-072/MH-4200-072/LR-4200-IR/LR-5200-IR

13" (33cm), Extension cable: 28" (71cm)

0.40 oz (11g)

Male 3.5 mm (TRRS) to Male 3.5 mm (TRRS)

Female 3.5 mm (TRS)

400 mA/m (+/- 3dB)

100Hz to 5kHz (+/- 3 dB ref 1kHz)

RoHS, IEC60118-4

Black

LR-4200-072/LA-401/LA-405/LA-404/LA-403/LA-402/LR-5200-216/LR-5200-072/LR-4200-216/MH-5200-072/MH-4200-072/LR-4200-IR/LR-5200-IR

29" (74cm)

1.50 oz (43g)

100-240 V, 50-60 Hz, 0.5 A

5.0 VDC, 4.2 A

UL, FCC, RoHS

Black

LA-422

36" (92cm)

4 - USB to Micro USB Cables (LA-422)

2.44 x 2.90 x 1.13" (62 x 74 x 29mm)

7.80 oz (221g)
