Listen Technologies LK-DK2-A1 ListenTALK Demo Kit 16

- ListenTALK Docking Station 16 -
The LA-480 Docking Station gives you a simple and convenient way to charge, store, and program ListenTALK transceivers and headsets. Designed specifically for ListenTALK devices, the LA-480 Docking Station can accommodate as many as sixteen (16) individual transceivers, ideal for large-scale systems or for allowing your system to grow to meet the needs of your venue.

Each charging slot features a tension lock that ensures secure charging connectivity, and each slot can be used to store ID cards or other items that are exchanged for and returned when the receiver is not in use. The LA-480 can be mounted in a variety of ways as well depending on your system requirements. The station can be securely mounted to a wall, in a drawer, on a rack, or attached to a tabletop.

Features
• Charges, stores, and programs up to 16 ListenTALK transceivers
• Each charging slot securely locks and holds units for a reliable connection each time
• Easily downloaded: mounted in a variety of ways depending on your installation and needs

- ListenTALK Transceiver -
Designed to be the new standard for two-way mobile communications, the ListenTALK Transceiver is the smartest system available. The all-in-one device, equipped with Listen Technologies' exclusive encryption technology and push-to-talk functionality, provides the simplest option for communication and collaboration among two or more people in any environment. In addition to the included Listen Ear Speaker, ListenTALK can be used with standard smartphone earbuds or a Listen Technologies headset.

Features
• Fast and simple two-way communication
• Push-to-talk functionality
• Exclusive encryption technology for added security
• Compatible with standard earbuds and Listen Technologies headsets
• Long-lasting lithium ion rechargeable batteries
• Optional Alkaline Battery Compartment

- ListenTALK Headset 2 (Single On-Ear w/Noise Cancelling Boom Mic) -
The LA-452 from Listen Technologies features a built-in boom mic and earpiece for hands-free communication, and the over-the-head design makes it easy and comfortable to wear.

Architectural Specs
The transceiver shall be a digital transceiver operating on the 1.9 GHz unlicensed PCS band utilizing Frequency-Hopping Spread Spectrum (FHSS) techniques allowing interference free full duplex communication. The device shall employ a multiply layer security protocol consisting of a 40-bit (pin free) group subscription, 32-bit authentication and a 64-bit encryption scheme enabling secure conversations.

It shall be easy to pair and form groups via Near-field communication (NFC), Docking Station or Software Suite. It shall be simple to operate with a Power, Talk and Volume Up and Down buttons. It shall allow up to 10 simultaneous groups to operate in the same area. It shall be powered via a removable non-proprietary rechargeable lithium-ion battery or via an optional 3 AAA alkaline battery compartment.

The transceiver shall have a 3.5 mm TRRS CTIA compliant headset connection allowing operation with a standard electret style headset. It shall have a built-in-microphone with auto detect circuitry if users elect to use their personal ear buds. It shall have a 64 x 128 OLED display with auto diming allowing display of all current status (group name, volume levels, mute, battery status, time remaining, signal strength, unit ID, mode, etc.)

The device shall have a leader clip and when inserted the unit automatically designates itself as a leader and allows the leader/presenter to control pairing/group creation and leader talkback modes (listen only, leader only or group).

The transceiver shall have a signal-to-noise ratio of 70 dB or greater and shall have an audio frequency response of 40 Hz - 15 kHz ( +/-3 dB). The device shall incorporate automatic battery charging circuitry to charge and maintain the lithium-Ion battery either via the micro USB port or via the docking station using the additional charging contacts on the bottom of the device.

Features
• Over-the-head design for added comfort and a secure fit
• Built-in boom mic for added convenience
• Lightweight, compact design and crystal-clear audio performance

- ListenTALK Headset 3 (Over Head Dual with Boom Mic) -
Ideal for reliable communications in noisy environments, the LA-453 from Listen Technologies combines a built-in boom mic with dual earpieces and an over-the-head fit. The result is a comfortable and clear headset choice for two-way communication.

Features
• Dual-earpiece design for improved performance in noisy environments
• Over-the-head fit for comfortable and secure wear
• Built-in boom mic for added convenience
• Unmatched audio performance

- ListenTALK Headset 1 (Earspeaker with Boom Mic) -
Perfect for two-way communications systems including the ListenTALK Transceiver, the LA-451 earspeaker with boom mic offers exceptional audio clarity and a lightweight solution for staying connected.

Features
• Single-earpiece design provides exceptional audio clarity without blocking external sounds
• Built-in boom mic for added convenience Lightweight, compact design

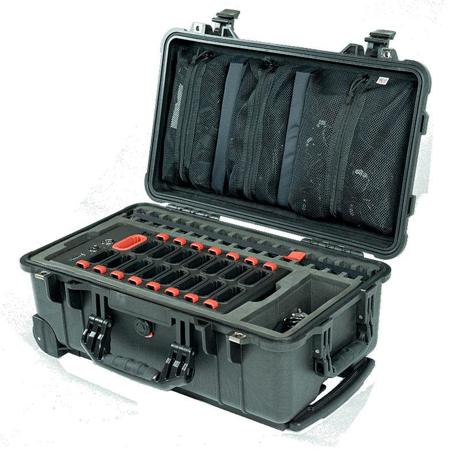

- Road Case 16 -
Hard Case (Pelican) for use with ListenTALK and iDSP products. Accommodates up to 16 ListenTALK Transceivers (LK-1) and one Docking Station 16 (LA-480) with room for associated headsets and ear speakers. Can also be used with up to 16 iDSP RF and IR Receivers and one iDSP 12 Unit Charging Tray (LA-381) and their associated headsets and ear speakers.

Features
• Durable Pelican Case
• Holds up to 16 Transceivers or iDSP Receivers
• Excellent for protecting product during transit
