23% Off

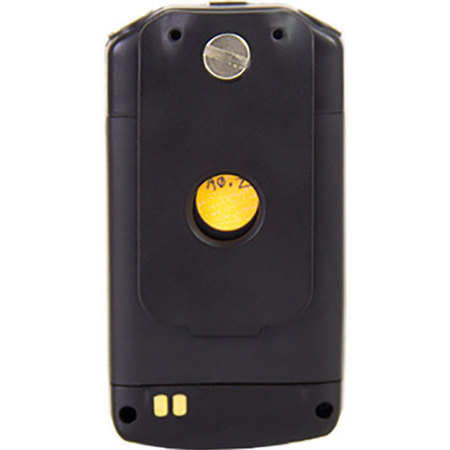

Listen Technologies LR-4200-IR Intelligent DSP IR Receiver

SKU: LTLR4200IR MFR: LR-4200-IR
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: Intelligent DSP IR Receiver ensures superior sound quality.
  • Enjoy 8 hours of use with the long-lasting Lithium-Ion battery for all-day events.
  • Easy to use: Auto Seek feature quickly finds the best channel for seamless listening.
  • Connectivity options: Compatible with various Listen Technologies headphones & devices.
  • Compact & lightweight: Comfortable to wear, enhancing the assistive listening experience.
  • IR receiver coverage: Ideal for large venues up to 40,000 sq. ft for presentations.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies LR-4200-IR Specifications

Audio
  • System Distortion

    < 2% total harmonic distortion (THD) at 80% deviation

  • Audio Output Jacks

    Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard

  • System Frequency Response

    63 Hz - 15 kHz ( +/-3 dB)

  • System Signal to Noise Ratio

    > 60 dB

Controls

Jump to...
  • User Controls

    Power on/off and volume up/down

  • Programming

    Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name

  • Set-up Controls

    Press and hold up/down volume buttons for 5 seconds to enterchannel adjust, use up/down to select channel

Indicators

Jump to...
  • Display

    OLED - Channel designation, battery level, unit number, charging status, volume status

  • LED

    Flashes when batteries are low or to indicate charging, solid when fully charged

  • Carrier Frequencies

    2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz

  • Number of Channels

    Four (4) selectable channels

  • Frequency Accuracy

    +/- .005% stability 32 to 122 Degree F (0 to 50 Degree C)

  • Modulation

    FM Wideband, +/-50 kHz deviation max, 50 uS de-emphasis

  • Coverage Area

    30,000 sq. ft (2787 sq. m) single channel with LT-84/LA-141 or 40,000 sq. ft (3716 sq. m) single channel with LT-82/LA-140

  • Squelch

    Programmable in 20 steps, automatic on loss of IR signal

  • Power Save Mode

    Turns unit off after a specified time of no IR signal, default is 30 minutes

  • Sensitivity

    Better than one (1) nW/cm2 @40 dB SNR

  • Power Supply

    Micro USB connector, 5 V, 500 mA

  • Battery Type

    Lithium Ion

  • Battery Life

    8 Hours of typical use

  • Battery Charging Time

    Fully charged in 2.5 Hours

Environmental

Jump to...
  • Temperature - Operation

    14 to 104 Degree F (-10 to 40 Degree C)

  • Temperature - Storage

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Relative Humidity

    0 to 95% relative humidity, non-condensing

Compliance

Jump to...
  • Standards

    FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706

Physical

Jump to...
  • Compatibility

    LA-140-GY, LT-82, LA-365, LA-401, LA-381, LA-405, LA-404, LA-403, LA-402, LA-380, LA-430, LT-84, LA-141, LA-382

  • Color

    Flat Black

  • Dimensions (H x W x D)

    Without Belt Clip: 3.75 x 2.0 x 0.64" (9.6 x 5.0 x 1.7cm)
    With Belt Clip: 3.75 x 2.0 x 0.80" (9.6 x 5.0 x 2.1 cm)

  • Weight

    Without Batteries: 1.9 oz (53.9g)
    With Batteries: 2.8 oz (79.4g)

About Listen Technologies LR-4200-IR

The LR-4200-IR receiver from Listen Technologies offers outstanding audio clarity and quality with the best range and reception in its class.

Part of our Intelligent Digital Signal Processing (iDSP) line, the LR-4200-IR is the smallest device of its kind, resulting in a compact unit that won't burden the end user. An integrated neck loop/lanyard makes each receiver easy to wear, and the DSP loop driver offers an improved listening experience for anyone with a T-coil-equipped hearing aid. Dual 3.5mm output jacks also allow receivers to be shared between users.

Each receiver is also equipped with a micro USB connection, making it easy for venues to charge and update the units via any standard USB port.

Extended speaking sessions, presentations and more can be challenging for other devices, but the LR-4200-IR incorporates advanced rechargeable batteries that offer long life and reliable power. Charge status, along with channel information and volume level, are easy to read on the integrated OLED display.

From corporate environments to conference proceedings and beyond, the LR-4200-IR is an outstanding receiver choice for any venue looking to offer convenient, reliable assistive listening.

Architectural Specs
The IR receiver shall be capable of receiving on four (4) wide band channels (carriers), Channel 1 (2.3 MHz), Channel 2 (2.8 MHz), Channel 3 (3.3 MHz) and Channel 4 (3.8 MHz). The receiver shall be tuned to a single channel and users shall not be able to change the channel. The receiver shall have the option of being lanyard or belt clip worn and the lanyard shall incorporate an integrated neck loop for compatibility with T-coil hearing aids. The receiver shall be intelligent and provide customized audio to either earphones or the integrated neck loop based upon which is connected. The receiver shall have two (2) 3.5 mm (TRRS) connectors to drive the integrated neck loop lanyard or up to two (2) mono or stereo earphones.

The receiver shall incorporate a multi-functional display (OLED) that indicates battery status, inventory number, volume level and a customizable channel name. The receiver shall employ a unique iDSP noise reduction technology. The receiver shall be fully programmable via PC software. The receiver shall have a micro USB connector used for programming/setup, inventory control, charging and firmware upgrades. The receiver shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery.

The receiver shall automatically turn on when removed from the charging device and automatically turn off when returned to the charging device. The receiver shall have additional charging contacts to allow for multiple charging options. The receiver shall have a signal-to-noise ratio of 60 dB or greater, THD less than 2% and shall have an audio frequency response of 63 Hz - 15 kHz ( +/-3 dB). The receiver shall be covered by a hassle free limited lifetime warranty. The Listen LR-4200-IR is specified.

Listen Technologies LR-4200-IR Features

  • High performance IR receiver offering best-in-class sensitivity and range
  • Integrated neck loop/lanyard with DSP loop driver for an enhanced T-coil listening experience
  • Smallest device of its kind makes it easier to wear and use and for venues to dispense, store and maintain
  • OLED display showing channels, battery status, channel status, volume level, and more
  • Lanyard and belt clip options offer convenient and discreet choices for the end user
  • Advanced rechargeable battery technology eliminates the costs and hassles associated with frequent battery replacement
  • Designed for single-channel applications

Product Documents

User Manual

Key Features

  • Crystal-clear audio: Intelligent DSP IR Receiver ensures superior sound quality.
  • Enjoy 8 hours of use with the long-lasting Lithium-Ion battery for all-day events.
  • Easy to use: Auto Seek feature quickly finds the best channel for seamless listening.
  • Connectivity options: Compatible with various Listen Technologies headphones & devices.
  • Compact & lightweight: Comfortable to wear, enhancing the assistive listening experience.
  • IR receiver coverage: Ideal for large venues up to 40,000 sq. ft for presentations.

What's in the box:

  • LR-4200-IR Intelligent DSP IR Receiver
  • Lithium-Ion Battery
  • Quick Start Guide
  • Listen Technologies Lifetime Limited Warranty
