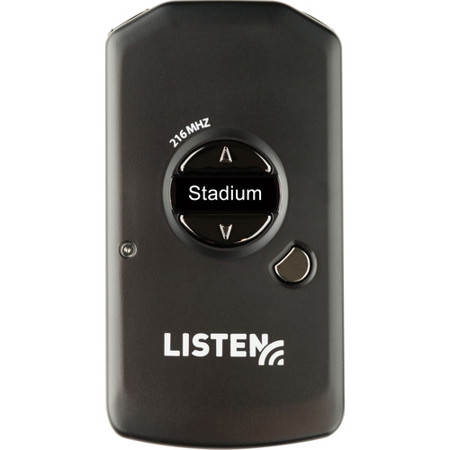

Listen Technologies LR-5200-216 Advanced Intelligent DSP RF Receiver, 216 MHz

SKU: LTLR5200216 MFR: LR-5200-216
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the LR-5200-216 receiver's advanced DSP technology.
  • Enjoy up to 8 hours of battery life for all-day assistive listening use.
  • Compact, lightweight design ensures comfortable portability of the RF receiver.
  • Easily program channels via software for customized audio experiences with this receiver.
  • Ideal for theaters, lectures, or tours, enhancing audio for all participants.
  • Ensure compatibility with LT-800 & LT-700 transmitters for seamless integration.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies LR-5200-216 Specifications

Audio
  • System Distortion

    < 2% total harmonic distortion (THD) at 80% deviation

  • Output/s

    Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm

  • System Frequency Response

    50 Hz - 15 kHz ( +/-3 dB)

  • System Signal to Noise Ratio

    SQ enabled 70 dB, SQ disabled 50 dB

Controls

Jump to...
  • User Controls

    Power, up/down volume, Listen button for end user channel selection

  • Programming

    Via software and USB port

  • Set-up Controls

    Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

Indicators

Jump to...
  • LEDs

    White, illuminated when unit is on, flashes when batteries are low or to indicate charging, solid when fully charged

  • Display

    Channel designation, battery level, unit number, charging status

  • Frequency Range

    216.0125 - 216.9875MHz

  • Number of Channels

    19 wide band, 38 narrow band

  • Sensitivity

    .6uV typical, 1 uV maximum for 12 dB sinad

  • Frequency Accuracy

    +/- .005% stability 32 to 122 Degree F (0 to 50 Degree C)

  • Squelch

    Programmable in 20 steps, automatic on loss of RF signal

  • Antenna Type

    Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable

  • Power Supply

    Micro USB connector, 5 V, 500 mA

  • Battery Type

    Lithium-ion

  • Battery Life

    8 Hours of continuous use

  • Battery Charging Time

    Fully charged in 2 Hours

Environmental

Jump to...
  • Temperature - Operation

    14 to 104 Degree F (-10 to 40 Degree C)

  • Temperature - Storage

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Relative Humidity

    0 to 95% relative humidity, non-condensing

Compliance

Jump to...
  • Standards

    FCC Part 15, Part 90, Industry Canada, RoHS

Physical

Jump to...
  • Compatibility

    LT-800-216-01, LT-700-216

  • Color

    Dark Gray

  • Dimensions (H x W x D)

    Without Belt Clip: 3.75 x 2.0 x 0.64" (9.6 x 5.0 x 1.7cm)
    With Belt Clip: 3.75 x 2.0 x 0.80" (9.6 x 5.0 x 2.1cm)

  • Weight

    Without Batteries: 1.6 oz (45.4g)
    With Batteries: 2.4 oz (68.1g)

  • UPC Code

    819267022393

About Listen Technologies LR-5200-216

The LR-5200-216 RF receiver from Listen Technologies is an outstanding choice for any venue that needs to provide assistive listening users with high-performance audio in a compact device. Featuring best-in-class pickup and reduced noise, the LR-5200-216 gives theaters, lecture halls, houses of worship, and other venues an affordable, simple solution when adding or expanding an assistive listening system.

The built-in rechargeable battery technology makes the LR-5200-216 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple with free iDSP software firmware updates, setup, and programming.

The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-216 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.

From classrooms to conferences, businesses to banquet halls, and more, the LR-5200-216 makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.

Architectural Specs
The RF receiver shall be capable of receiving on 57 wide and narrow band channels. The device shall have a programmable multi-function Listen button that can be tuned for the venues desired channels and electronically lock out any unused channels. The receiver shall have a signal-to-noise ratio of 70 dB or greater and shall have an audio frequency response of 50 Hz - 15 kHz (+/- 3 dB).

The device shall employ a unique DSP SQ noise reduction technology. The unit shall have a programmable squelch circuit. The unit shall incorporate a multi-functional display that indicates battery status, inventory number and channel. The device shall have the option of being lanyard or belt clip worn and the lanyard shall have the option of an integrated neck loop.

The device shall have a USB connector used for inventory control, set up, charging and firmware upgrades. The device shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery. The device shall have additional charging contacts to allow multiply charging options. The Listen LR-5200-216 is specified.

Listen Technologies LR-5200-216 Features

  • High-performance, ultra-sensitive RF personal listening receiver offering the best reception and lowest noise in its class
  • Compact design-the smallest of its kind-makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • OLED display offers at-a-glance information including channel status, battery level, volume, and more

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with the LR-5200-216 receiver's advanced DSP technology.
  • Enjoy up to 8 hours of battery life for all-day assistive listening use.
  • Compact, lightweight design ensures comfortable portability of the RF receiver.
  • Easily program channels via software for customized audio experiences with this receiver.
  • Ideal for theaters, lectures, or tours, enhancing audio for all participants.
  • Ensure compatibility with LT-800 & LT-700 transmitters for seamless integration.

What's in the box:

  • LR-5200-216 Advanced Intelligent DSP RF Receiver (216 MHz)
  • Lithium-ion Battery
  • Quick Start Guide
  • Listen Technologies Lifetime Limited Warranty
