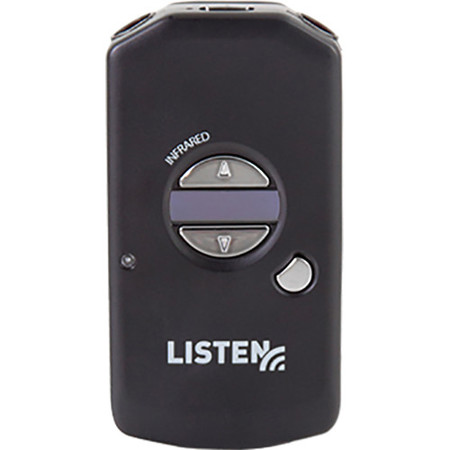

Listen Technologies LR-5200-IR Advanced Intelligent DSP IR Receiver

SKU: LTLR5200IR MFR: LR-5200-IR
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the LR-5200-IR receiver's <2% THD for superior sound.
  • Enjoy 8 hours of use with our long-lasting lithium-ion battery, perfect for all-day audio needs.
  • Navigate easily with the OLED display, showing channel, battery, and volume status at a glance.
  • Use the Listen Technologies receiver in spaces up to 40,000 sq. ft for wide coverage.
  • Customize your experience with programmable settings via USB for optimal audio clarity.
  • Ensure compliance with ADA 706 using this Listen Technologies assistive listening receiver.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies LR-5200-IR Specifications

Audio
  • System Distortion

    < 2% total harmonic distortion (THD) at 80% deviation

  • Audio Output Jacks

    Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard

  • System Frequency Response

    63 Hz - 15 kHz ( +/-3 dB)

  • System Signal to Noise Ratio

    > 60 dB

Controls

Jump to...
  • User Controls

    Power on/off, volume up/down, Listen button for end user channel selection

  • Programming

    Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name, Channel button, Channel Lock

  • Set-up Controls

    Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

Indicators

Jump to...
  • Display

    OLED - Channel designation, battery level, unit number, charging status, volume status

  • LED

    Flashes when batteries are low or to indicate charging, solid when fully charged

  • Carrier Frequencies

    2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz

  • Number of Channels

    Four (4) selectable channels

  • Frequency Accuracy

    +/- .005% stability 32 to 122 Degree F (0 to 50 Degree C)

  • Modulation

    FM Wideband, +/-50 kHz deviation max, 50 uS de-emphasis

  • Coverage Area

    30,000 sq. ft (2787 sq. m) single channel with LT-84/LA-141 or 40,000 sq. ft (3716 sq. m) single channel with LT-82/LA-140

  • Squelch

    Programmable in 20 steps, automatic on loss of IR signal

  • Power Save Mode

    Turns unit off after a specified time of no IR signal, default is 30 minutes

  • Sensitivity

    Better than one (1) nW/cm2 @40 dB SNR

  • Power Supply

    Micro USB connector, 5 V, 500 mA

  • Battery Type

    Lithium Ion

  • Battery Life

    8 Hours of typical use

  • Battery Charging Time

    Fully charged in 2.5 Hours

Environmental

Jump to...
  • Temperature - Operation

    14 to 104 Degree F (-10 to 40 Degree C)

  • Temperature - Storage

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Relative Humidity

    0 to 95% relative humidity, non-condensing

Compliance

Jump to...
  • Standards

    FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706

Physical

Jump to...
  • Compatibility

    LA-140-GY, LT-82, LA-365, LA-401, LA-405, LA-404, LA-403, LA-402, LA-430, LT-84, LA-141

  • Color

    Flat Black

  • Dimensions (H x W x D)

    Without Belt Clip: 3.75 x 2.0 x 0.64" (9.6 x 5.0 x 1.7cm)
    With Belt Clip: 3.75 x 2.0 x 0.80" (9.6 x 5.0 x 2.1cm)

  • Weight

    Without Batteries: 1.9 oz (53.9g)
    With Batteries: 2.8 oz (79.4g)

About Listen Technologies LR-5200-IR

Bring high-quality, crystal-clear audio to your venue with the LR-5200-IR Advanced Intelligent DSP IR Receiver from Listen Technologies. This next-generation receiver is part of the innovative iDSP line, offering superior audio performance in a compact, user-friendly device. It's the perfect solution for houses of worship, theaters, lecture halls, and other venues looking to enhance their assistive listening options.

The LR-5200-IR is not just a receiver; it's an intelligent device equipped with advanced digital signal processing technology. This technology ensures the highest quality audio signal, reducing interference from other wireless devices. It's also compatible with a wide range of wireless microphone systems, making it a versatile choice for any setting.

This receiver features a built-in rechargeable battery, making it both an economical and environmentally friendly choice. The micro-USB connection allows for quick battery charging, as well as fast and easy firmware updates, setup, and programming.

Designed with user convenience in mind, the LR-5200-IR comes with an integrated neck loop and lanyard with a DSP loop driver. This makes it easy to wear and simple to use for listeners with T-coil equipped hearing aids. The OLED display provides essential information at a glance, including channel status and battery level.

The LR-5200-IR is capable of receiving on four wide band channels, and features a programmable multi-function Listen button that can be tuned to your venue's desired channels. It also has two 3.5 mm connectors to drive the integrated neck loop lanyard or up to two mono or stereo earphones.

The receiver employs unique iDSP noise reduction technology and is fully programmable via PC software. It also features automatic battery charging circuitry and uses a non-proprietary lithium-ion battery. The receiver automatically turns on when removed from the charging device and off when returned, making it a convenient and reliable choice for any venue.

Whether you're a business, banquet hall, theater, or any other venue, the LR-5200-IR Advanced Intelligent DSP IR Receiver is an excellent choice for a comfortable, clear, and reliable personal listening receiver.

Listen Technologies LR-5200-IR Features

  • High-performance, ultra-sensitive infrared personal listening receiver offering the best reception, sensitivity, and range in its class
  • Compact design-the smallest of its kind-makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • OLED display offers at-a-glance information including channel status, battery level, volume, and more

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with the LR-5200-IR receiver's <2% THD for superior sound.
  • Enjoy 8 hours of use with our long-lasting lithium-ion battery, perfect for all-day audio needs.
  • Navigate easily with the OLED display, showing channel, battery, and volume status at a glance.
  • Use the Listen Technologies receiver in spaces up to 40,000 sq. ft for wide coverage.
  • Customize your experience with programmable settings via USB for optimal audio clarity.
  • Ensure compliance with ADA 706 using this Listen Technologies assistive listening receiver.

What's in the box:

  • LR-5200-IR Advanced Intelligent DSP IR Receiver
  • Lithium-ion Battery
  • Quick Start Guide
  • Listen Technologies Lifetime Limited Warranty
