Listen Technologies LR-5200-IR Advanced Intelligent DSP IR Receiver Package 1, LA-430 Intelligent Ear Phone, LA-401 Universal Ear Speaker

SKU: LTLR5200IRP1 MFR: LR-5200-IR-P1
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with the advanced Listen Technologies receiver.
  • Enjoy up to 8 hours of use with the long-lasting lithium-ion battery life.
  • The intelligent DSP IR receiver enhances sound quality for clear communication.
  • Ideal assistive listening device for theaters, classrooms, and conferences.
  • Easy channel selection ensures seamless audio during presentations and events.
  • Compact design and universal ear speaker provide comfort and portability.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies LR-5200-IR Specifications

Audio
  • System Distortion

    < 2% total harmonic distortion (THD) at 80% deviation

  • Audio Output Jacks

    Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard

  • System Frequency Response

    63 Hz - 15 kHz ( +/-3 dB)

  • System Signal to Noise Ratio

    > 60 dB

Controls

Jump to...
  • User Controls

    Power on/off, volume up/down, Listen button for end user channel selection

  • Programming

    Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name, Channel button, Channel Lock

  • Set-up Controls

    Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

Indicators

Jump to...
  • Display

    OLED - Channel designation, battery level, unit number, charging status, volume status

  • LED

    Flashes when batteries are low or to indicate charging, solid when fully charged

  • Carrier Frequencies

    2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz

  • Number of Channels

    Four (4) selectable channels

  • Frequency Accuracy

    +/- .005% stability 32 to 122 Degree F (0 to 50 Degree C)

  • Modulation

    FM Wideband, +/-50 kHz deviation max, 50 uS de-emphasis

  • Coverage Area

    30,000 sq. ft (2787 sq. m) single channel with LT-84/LA-141 or 40,000 sq. ft (3716 sq. m) single channel with LT-82/LA-140

  • Squelch

    Programmable in 20 steps, automatic on loss of IR signal

  • Power Save Mode

    Turns unit off after a specified time of no IR signal, default is 30 minutes

  • Sensitivity

    Better than one (1) nW/cm2 @40 dB SNR

  • Power Supply

    Micro USB connector, 5 V, 500 mA

  • Battery Type

    Lithium Ion

  • Battery Life

    8 Hours of typical use

  • Battery Charging Time

    Fully charged in 2.5 Hours

Environmental

Jump to...
  • Temperature - Operation

    14 to 104 Degree F (-10 to 40 Degree C)

  • Temperature - Storage

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Relative Humidity

    0 to 95% relative humidity, non-condensing

Compliance

Jump to...
  • Standards

    FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706

Physical

Jump to...
  • Compatibility

    LA-140-GY, LT-82, LA-365, LA-401, LA-405, LA-404, LA-403, LA-402, LA-430, LT-84, LA-141

  • Color

    Flat Black

  • Dimensions (H x W x D)

    Without Belt Clip: 3.75 x 2.0 x 0.64" (9.6 x 5.0 x 1.7cm)
    With Belt Clip: 3.75 x 2.0 x 0.80" (9.6 x 5.0 x 2.1cm)

  • Weight

    Without Batteries: 1.9 oz (53.9g)
    With Batteries: 2.8 oz (79.4g)

About Listen Technologies LR-5200-IR

Where high-quality sound, convenience, and advanced technology intersect, you'll find the LR-5200-IR Advanced Intelligent DSP IR Receiver Package 1. This comprehensive package includes an IR receiver, an integrated neck loop/lanyard, and a universal ear speaker, providing a streamlined solution for enhancing your IR assistive listening system.

The LR-5200-IR iDSP receiver, the smallest of its kind, offers a lightweight and user-friendly solution for leveraging assistive listening technology. This high-performance receiver delivers unparalleled sensitivity, range, and clarity, backed by advanced green battery technology for a more economical and environmentally-friendly solution.

The package also includes an integrated neck loop/lanyard, designed to enhance the listening experience for users with T-coil-equipped hearing aids. The universal ear speaker, also included, allows all users to benefit from the exceptional clarity and signal range that the LR-5200-IR provides.

Each receiver is equipped with an OLED display for clear communication of the channel name and status, battery charge level, and volume level. A programmable channel select button enables users to navigate through the available/active channels, while the micro USB connection simplifies setup, programming, and firmware updates.

Ideal for small to mid-size spaces such as boardrooms, classrooms, and houses of worship, the LR-5200-IR-P1 receiver package is the optimal choice for initiating or expanding your IR assistive listening system.

The IR receiver is capable of receiving on four wide band channels, including Channel 1 (2.3 MHz), Channel 2 (2.8 MHz), Channel 3 (3.3 MHz), and Channel 4 (3.8 MHz). The device features a programmable multi-function Listen button that can be tuned to the venue's desired channels and can electronically lock out any unused channels.

The receiver can be worn via lanyard or belt clip, and the lanyard incorporates an integrated neck loop for compatibility with T-coil hearing aids. The receiver intelligently provides customized audio to either earphones or the integrated neck loop, depending on which is connected.

The receiver features two 3.5 mm (TRRS) connectors to drive the integrated neck loop lanyard or up to two mono or stereo earphones. The multi-functional OLED display indicates battery status, inventory number, volume level, and a customizable channel name.

The receiver employs unique iDSP noise reduction technology and is fully programmable via PC software. It features a micro USB connector for programming/setup, inventory control, charging, and firmware upgrades. The receiver uses a non-proprietary lithium-ion battery and incorporates automatic battery charging circuitry.

The receiver automatically turns on when removed from the charging device and off when returned to it. It has additional charging contacts for multiple charging options. The receiver boasts a signal-to-noise ratio of 60 dB or greater, THD less than 2%, and an audio frequency response of 63 Hz - 15 kHz ( +/-3 dB).

The LR-5200-IR Advanced Intelligent DSP IR Receiver Package 1 is the ultimate solution for superior sound quality and advanced technology in assistive listening systems.

Listen Technologies LR-5200-IR Features

  • Complete Intelligent DSP (iDSP) receiver package includes the equipment needed to begin or expand your IR assistive listening system quickly
  • High-performance ListenIR receiver provides the best signal pickup and range of any IR system on the market
  • Ideal for adding or expanding to venues and businesses with an existing IR assistive listening system
  • Includes one (1) LR-5200-IR receiver, integrated neck loop/lanyard, and a universal ear speaker
  • Can be worn around the neck or with the belt clip, making it the most discreet listening device on the market
  • Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
  • Ideal for multi-channel applications where users need the convenience of selecting channels themselves
  • Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
  • Advanced green battery technology reduces costs of ownership and eliminates the hassle of purchasing, changing, and disposing of alkaline batteries

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with the advanced Listen Technologies receiver.
  • Enjoy up to 8 hours of use with the long-lasting lithium-ion battery life.
  • The intelligent DSP IR receiver enhances sound quality for clear communication.
  • Ideal assistive listening device for theaters, classrooms, and conferences.
  • Easy channel selection ensures seamless audio during presentations and events.
  • Compact design and universal ear speaker provide comfort and portability.

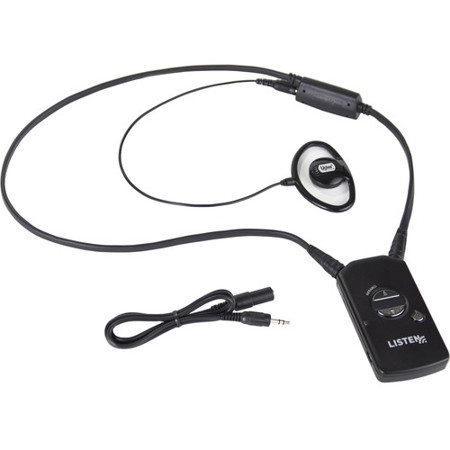

What's in the box:

  • LR-5200-IR Advanced Intelligent DSP IR Receiver
  • LA-430 Intelligent Ear Phone/Neck Loop Lanyard
  • LA-401 Universal Ear Speaker
  • Lithium-Ion Battery
  • Quick Start Guide
  • Listen Technologies Lifetime Limited Warranty
