50 Hz - 15 kHz ( +/-3 dB)
62 dB (A-Weighted)
Rear panel, one (1) Female XLR and 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC
Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm
Compression can be turned on/off. Slope internally adjustable from 1:1 to 4:1. Default 2:1
Cuts and boosts frequencies above 5 kHz
< 2% total harmonic distortion (THD) at 80% deviation
Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm
Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
Front Panel: Power, Test Tone on/off, Channel up/down, Input Levels, Mix Level, Contour, Monitor volume controlRear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high)
Compression ratio for audio processor
Process on/off, channel lock
Channel Designation, lock status, RF power level (front panel)
Indicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)
Indicated by a green LED when on (front panel)
Red LED illuminates when test tone is enabled
Indicated on the LCD (low, mid, high)
(A) 72.100, (E) 72.900, (H) 75.900
3 wide band
+/- .005% stability 0 to 50 Degree C (32 to 122 Degree )
Various antennas available
50 PPM
Up to 305 m (1,000 ft.)
BNC
80,000 uV at 3 m
In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)
100-240 VAC, 50-60 Hz, 0.4 A
12 VDC, 1.3 A, 15.6 W
5.0 mm (0.02 in.) OD, 2.5 mm (0.01 in.) ID, barrel type
UL, CE, GS, TUV, RoHS
-10 Degree C (14 Degree F) to +40 Degree C (104 Degree F)
-20 Degree C (-4 Degree F) to +50 Degree C (122 Degree F)
0 to 95% relative humidity, non condensing
FCC Part 15, Part 90, Industry Canada
Dark Gray with white silk screening
One (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space,optional rack mount (LA-326)
LA-130, LR-200-072
8.50 x 1.75 x 9.13" (21.5 x 4.5 x 23cm)
2.6 lb (1.2kg)
With Power Supply: 4.5 lb (2.0kg)
819267023307

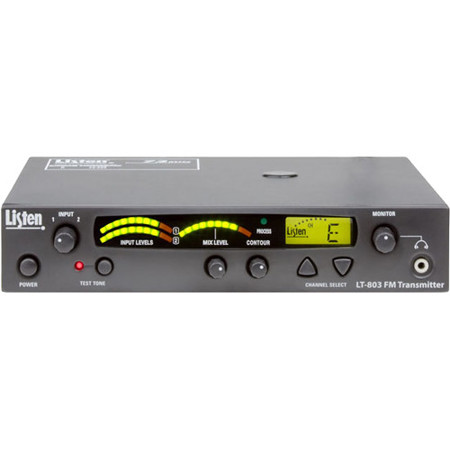

With its robust and sophisticated design, the LT-803-072 Stationary 3-Channel RF Transmitter, operating at a frequency range of 72 MHz, is an ideal solution for businesses or venues that require one to three channels of high-quality assistive listening audio. This advanced transmitter is compatible with a wide array of audio sources, including mixers, microphones, and MP3 players, offering you unparalleled flexibility.
Our signature Look & Listen LCD display provides real-time information about the channel, lock, and RF power, ensuring you have complete control over your audio transmission. The LT-803-072 comes with a power supply, facilitating a hassle-free setup and immediate use.
In terms of architectural specifications, this reliable RF transmitter is capable of broadcasting on any one of three distinct channels - A (72.100 MHz), E (72.900 MHz), or H (75.900 MHz). It boasts a superior Signal to Noise Ratio (SNR) of 62 dB or greater, ensuring clear and crisp audio transmission. The output power is adjustable to quarter, half, or full, providing you with the flexibility to tailor your broadcast to your specific needs.
Channel tuning can be securely locked to prevent accidental changes, and the device features an audio frequency response of 50 Hz to 15k Hz, +/- 3 dB at 72 MHz. It is equipped with two (2) mixing audio inputs and offers a range of audio controls, including input level, mix level, and an adjustable low pass filter (contour).
The LT-803-072 also features an advanced audio processor capable of automatic gain control and limiting, ensuring consistent audio quality. Manufactured by Listen Technologies, a brand renowned for its high-quality audio equipment, the LT-803-072 Stationary 3-Channel RF Transmitter is a durable and reliable choice for your audio transmission needs.
