Listen Technologies LW-200P-04 Everywhere 4-Channel Server

SKU: LTLW200P0401 MFR: LW-200P-04-01
Earn VIP Reward Points

Key Features

  • Enhance accessibility with this 4-channel audio server for assistive listening.
  • Reach up to 1000 users with a reliable audio solution, perfect for large venues.
  • Enjoy cloud service integration for seamless audio streaming and easy management.
  • Ensure top-notch sound quality with balanced analog inputs for clear audio delivery.
  • Benefit from easy setup with DHCP, Static, and Reserved IP Address options.
  • This compact 1RU server maximizes rack space while delivering powerful audio.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies LW-200P-04 Specifications

Interconnections

Interconnections

Jump to...
  • Audio Inputs

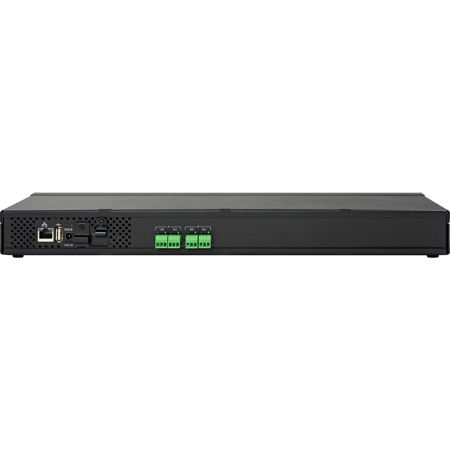

    Terminal Block: Two analog inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm
    Each stereo channel requires the use of two inputs

  • Ethernet

    RJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.

Power Supply

Jump to...
  • Connector

    DC Barrel Connector

  • Input Voltage

    100-240 VAC, 50-60Hz

  • Output Voltage

    5 VDC

  • Current

    6.0 A

  • Power

    30 W

  • Countries

    North American, UK, EU, AUS

Servers

Jump to...
  • IP Address

    DHCP, Static, Reserved

  • Prioritization

    QoS/ToS

  • C Users

    1000 (per server)

  • Max Channels

    4 mono

  • WAP Support

    802.11n or better w/WMM enabled

  • Supported WAP Frequencies

    2.4 GHz & 5 GHz

  • Bandwidth Use

    Approx. 140 kbps per user

  • App Support

    iOS/Android

  • Cloud Service

    Yes

  • Regulatory

    FCC, CE, RoHS

Physical

Jump to...
  • Rack Space

    1RU

  • Dimensions (H x W x D)

    1.77 x 19.02 x 6.1" (45 x 483 x 155mm)

  • Weight

    4.85 lb (2.2kg)

  • UPC Code

    819267025431

About Listen Technologies LW-200P-04

Take your audio and video streaming to the next level with the advanced LW-200P-04 Everywhere 4-Channel Server. This sophisticated device is an ideal solution for venues like restaurants, sports bars, and other locations requiring multiple audio sources. It can support up to 1000 users simultaneously, who can access the audio via a free app on their smartphones or mobile devices.

The LW-200P-04 seamlessly integrates with your existing wireless network, utilizing minimal bandwidth for maximum efficiency. With the innovative Listen Everywhere cloud server interface, updates and service options are quick and straightforward.

This high-tech server is capable of broadcasting multiple audio sources over Ethernet to a WLAN access point. Users can receive the audio broadcast through a proprietary app, available for free download on both Apple and Android app stores.

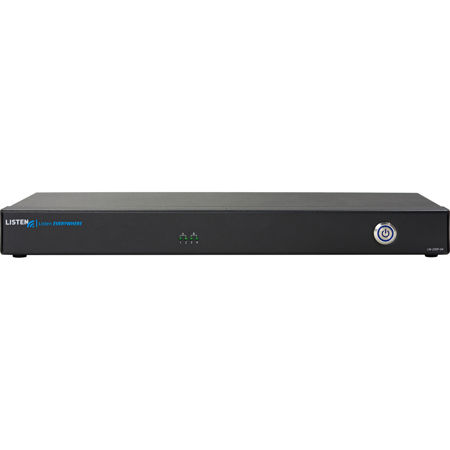

The state-of-the-art LW-200P-04 is available in two models, one with two audio inputs and the other with 4 to 16 audio inputs. Each server is rack-mountable in a 1 RU 19" rack space and can receive line level audio inputs. LED indicators on the front panel provide clear audio input indication.

Designed with user convenience in mind, the server has no user control interface to prevent tampering and ensure easy setup and operation. Each server comes with an external power supply, making it suitable for use in multiple countries.

The proprietary app offers additional features such as the ability to play venue intro videos or video ads, display sliding ad banners, URL hyperlinks, and PDF documents. It also allows for timed ads based on the time of day and day of the week. Venues can customize the app with their own colors, logos, and channel names, and channel selections can be personalized with channel logos, images, and colors.

Choose the LW-200P-04 Everywhere 4-Channel Server for a comprehensive, innovative, and convenient audio and video streaming solution.

Listen Technologies LW-200P-04 Features

  • Up to 1000 Users
  • 4 Channels
  • Ultra-Low Latency
  • Uses Existing Wireless Network

Product Documents

User Manual

Key Features

  • Enhance accessibility with this 4-channel audio server for assistive listening.
  • Reach up to 1000 users with a reliable audio solution, perfect for large venues.
  • Enjoy cloud service integration for seamless audio streaming and easy management.
  • Ensure top-notch sound quality with balanced analog inputs for clear audio delivery.
  • Benefit from easy setup with DHCP, Static, and Reserved IP Address options.
  • This compact 1RU server maximizes rack space while delivering powerful audio.

What's in the box:

  • LW-200P-04 Everywhere 4-Channel Server with Power Supply
  • Listen Technologies 2 Year Limited Warranty
