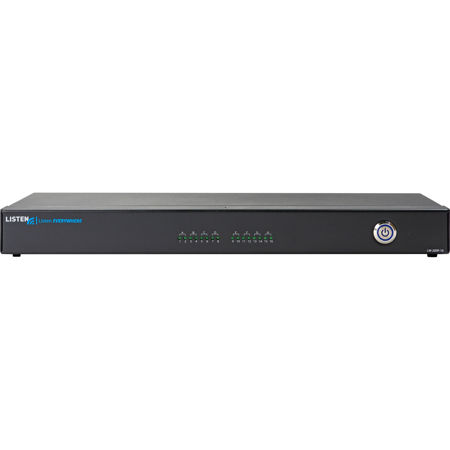

Listen Technologies LW-200P-16 Listen Everywhere 16-Channel Server

SKU: LTLW200P1601 MFR: LW-200P-16-01
Earn VIP Reward Points

Key Features

  • Enhance audio experiences with this 16-channel Listen Everywhere server.
  • Supports up to 1000 users, perfect for large venues needing audio solutions.
  • Enjoy easy setup with DHCP, Static, and Reserved IP Address options.
  • Utilize dual-band 2.4 GHz & 5 GHz WAP support for reliable connectivity.
  • Provides pristine sound quality with balanced +4 dBu audio inputs.
  • Manage assistive listening easily via iOS/Android app support.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Listen Technologies LW-200P-16 Specifications

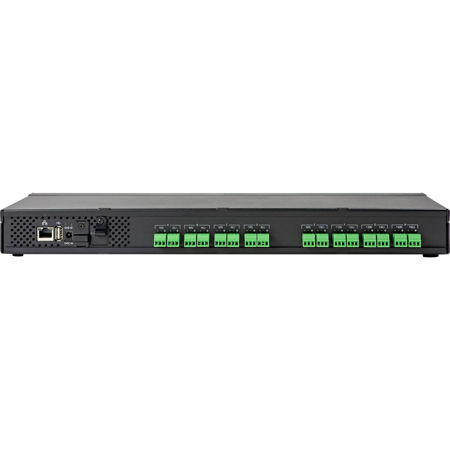

Interconnections

Interconnections

Jump to...
  • Audio Inputs

    Terminal Block: Two analog inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm
    Each stereo channel requires the use of two inputs

  • Ethernet

    RJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.

Power Supply

Jump to...
  • Connector

    DC Barrel Connector

  • Input Voltage

    100-240 VAC, 50-60Hz

  • Output Voltage

    5 VDC

  • Current

    6.0 A

  • Power

    30 W

  • Countries

    North American, UK, EU, AUS

Servers

Jump to...
  • IP Address

    DHCP, Static, Reserved

  • Prioritization

    QoS/ToS

  • C Users

    1000 (per server)

  • Max Channels

    16 mono

  • WAP Support

    802.11n or better w/WMM enabled

  • Supported WAP Frequencies

    2.4 GHz & 5 GHz

  • Bandwidth Use

    Approx. 140 kbps per user

  • App Support

    iOS/Android

  • Cloud Service

    Yes

  • Regulatory

    FCC, CE, RoHS

Physical

Jump to...
  • Rack Space

    1RU

  • Dimensions (H x W x D)

    1.77 x 19.02 x 6.1" (45 x 483 x 155mm)

  • Weight

    4.85 lb (2.2kg)

  • UPC Code

    819267025554

About Listen Technologies LW-200P-16

Because of its advanced technology and sophisticated design, the LW-200P-16 Listen Everywhere 16-Channel Server is a high-tech solution for multi-screen and assistive listening environments. This innovative server is capable of handling 16 input channels, servicing up to 1000 users simultaneously. It's ideal for large-scale venues such as conference centers, sports bars, houses of worship, and hospitality settings, providing a wide range of streaming audio options with robust, clear, and reliable performance.

This state-of-the-art server broadcasts multiple audio sources over Ethernet to a WLAN access point, making it a versatile choice for any venue. Users can easily access the audio broadcast through a proprietary app, available for free download on both Apple and Android devices.

The LW-200P-16 Listen Everywhere 16-Channel Server comes in two models, one with two audio inputs and the other with 4 to 16 audio inputs. Each server is rack-mountable in a 1 RU 19" rack space and is capable of receiving line-level audio inputs. To ensure easy setup and operation, there is no user control interface on the server, preventing any potential tampering.

The server's proprietary app offers additional features such as the ability to play venue intro videos or video ads, display sliding ad banners, URL hyperlinks, and customer-supplied PDF documents. The app also allows for timing ads based on the time of day and day of the week. For a personalized touch, venues can customize the app with their own colors, logos, and channel names. Channel selections can also be customized with channel logos, images, and colors.

In summary, the LW-200P-16 Listen Everywhere 16-Channel Server is a comprehensive, high-tech solution for any venue needing to stream audio and video content to a large number of users.

Listen Technologies LW-200P-16 Features

  • Up to 1000 users
  • 16 Channels
  • Ultra-Low Latency
  • Uses Existing Wireless Network

Product Documents

User Manual

Key Features

  • Enhance audio experiences with this 16-channel Listen Everywhere server.
  • Supports up to 1000 users, perfect for large venues needing audio solutions.
  • Enjoy easy setup with DHCP, Static, and Reserved IP Address options.
  • Utilize dual-band 2.4 GHz & 5 GHz WAP support for reliable connectivity.
  • Provides pristine sound quality with balanced +4 dBu audio inputs.
  • Manage assistive listening easily via iOS/Android app support.

What's in the box:

  • LW-200P-16 Listen Everywhere 16-Channel Server with Power Supply
  • Listen Technologies 2 Year Limited Warranty
