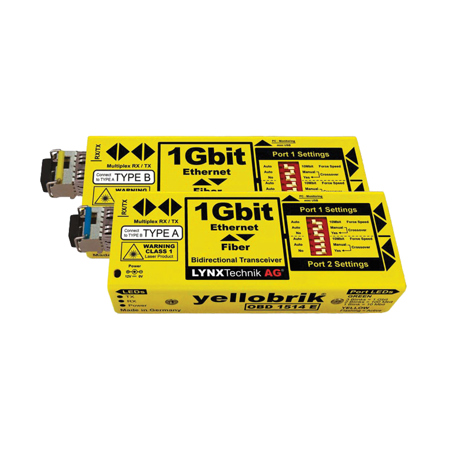

Lynx Tech OBD 1514 E 1Gbit Singlemode to Bi-Directional Fiber Transceiver

SKU: LTOBD1514E MFR: OBD 1514 E
Earn VIP Reward Points

Key Features

  • Achieve high-speed data transfer with this 1Gbit Ethernet fiber transceiver.
  • Enjoy a stable connection up to 6.2 miles with single-mode fiber optics.
  • Easy setup with auto-detect bit rate for quick network integration.
  • Wide compatibility: Supports 10/100/1000 BaseT Ethernet connections.
  • Enhance your network security using reliable fiber optic technology.
  • Long range connectivity solution perfect for extending your network efficiently.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Tech OBD 1514 E Specifications

  • Ethernet

    2x Ethernet ports, RJ 45 Connectors
    10 BaseTUTP category 3,4 or 5 cable 328' (100m) (2 pairs)
    100 BaseTXUTP category 5 cable 328' (100m) (2 pairs)
    1000 BaseTXUTP category 5 cable 328' (100m) (4 pairs)

    Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
    Automatic crossover detection or force manually for each port (selectable)
    Port speed / activity LED indication (next to Ethernet port)

  • Fiber Optic

    1x fiber optic in-/output per module:
    Full Duplex (Single mode) using LC/PC Connections
    Type A: OH-BD-51-1310-LC
    Type B: OH-BD-51-1550-LC
    IEEE 802.3z (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s))
    TX and RX active LEDs on side of module
    Max. distance approx. 6.2 miles (10km) (Singlemode)

  • Power

    +12V DC @ 1.7W nominal without SFP (supports 7 - 22VDC input range)

  • Ambient

    41 Degree F to 104 Degree F (5 Degree C to 40 Degree C)

  • Humidity

    90% (non condensing)

  • Dimensions

    Including connectors: 4.73 x 1.65 x 0.86" (120 x 42 x 22mm)

  • Weight

    4.4 oz (125g)

  • UPC Code

    4250479329416

Models
Lynx Technik AG OBD 1514 E 1Gbit Singlemode to Bi-Directional Fiber Transceiver
$1,282.50

$1,350.00

Save:$67.50 (5%)

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

Lynx Technik AG yellobrik OET 1910 10Gbit/s Ethernet to Singlemode Transceiver
$830.00

Ships from Manufacturer

Usually ships within 7-14 Days. Delivery is subject to availability.

Lynx Technik AG OBD 1910 MM 10Gbit/s Multimode to Bi-Directional Transceiver
$1,686.25

$1,775.00

Save:$88.75 (5%)

Ships from Manufacturer

Usually ships within 7-14 Days. Delivery is subject to availability.

Component TypeTransceiversTransceiversTransceivers
Bridge InterfaceEthernet RJ-45Fiber Channel SFP+Fiber Channel SFP+

About Lynx Tech OBD 1514 E

The OBD 1514 E is a matched pair of compact Ethernet switches designed to extend the reach of 1GbE signals over long distances. The two switches are linked via simplex bi-directional fiber which operates at a constant 1Gbit/s speed.

This pair of modules uses WDM (Wavelength-division Multiplexing) fiber technology in a closed loop environment, It functions as a simple Ethernet extender solution. The fiber link supports distances up to 10km and provides a single, high speed 1Gbit/s error-free optical connection between the two locations.

Each OBD 1514 E module has two standard RJ45 Ethernet ports. The complete system functions as a 4 ports Ethernet switch, providing two standard RJ45 Ethernet ports at each end bridged with fiber. For legacy systems, each Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10 Mbit/s. Each port uses auto crossover detection or can be forced manually if needed. These functions are available using the dip switch located on the device.

Note: This system uses WDM and should only be used in point to point applications. WDM cannot be integrated into a CWDM system

Lynx Tech OBD 1514 E Features

  • Bidirectional send and receive over single fiber link
  • Supports standard ethernet inputs up to 1 Gbit/s
  • Closed loop WDM fiber system
  • 3x port ethernet switch (1x fiber, 2x electrical)
  • Auto (10/100/1000) port speed detection
  • Manually force 10Mbit/s electrical speed (if needed)
  • Fiber transceiver speed always 1 Gbit/s
  • Auto or manual electrical crossover selection
  • Distances up to 6.2 miles (10km) over singlemode fiber

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Achieve high-speed data transfer with this 1Gbit Ethernet fiber transceiver.
  • Enjoy a stable connection up to 6.2 miles with single-mode fiber optics.
  • Easy setup with auto-detect bit rate for quick network integration.
  • Wide compatibility: Supports 10/100/1000 BaseT Ethernet connections.
  • Enhance your network security using reliable fiber optic technology.
  • Long range connectivity solution perfect for extending your network efficiently.

What's in the box:

  • 2x Lynx Technik AG OBD 1514 E 1Gbit Singlemode to Bi-Directional Fiber Transceiver
  • 2x SFPs
  • 2x AC Power Supply
  • Lynx Technik AG 3 Year Limited Warranty
