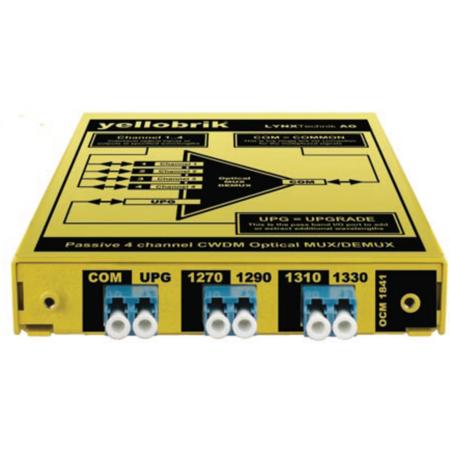

Lynx Technik AG yellobrik OCM 1841 1/2RU 4-Channel CWDM Optical Multiplexers/Demultiplexers with LC/PC Single Mode Optical Connectors, 1270-1330nm Channel Wavelength

SKU: LTOCM1841 MFR: OCM1841
Earn VIP Reward Points

Key Features

  • Utilize this optical multiplexer for reliable video signal transmissions over fiber.
  • Achieve high resolution broadcast quality with low loss using this CWDM module.
  • This compact size demux offers easy setup for your existing broadcast equipment.
  • Enjoy long range connectivity with minimal latency using optical fiber connections.
  • Ensure a reliable connection for critical video and audio signals with this unit.
  • This 4-channel CWDM is ideal for streamlining multiple video feeds into one fiber.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OCM 1841 Specifications

  • Optical I/O

    4x Fiber Optic I/O channels
    Center frequencies taken from ITU-T G.694.2
    Channel wavelengths: 1270,1290,1310,1330nm

  • Upgrade I/O connection

    1x UPG (pass band connection to other OCM 189x modules)

  • Channel Insertion loss

    2.7dB

  • UPG Insertion loss

    2.7dB.

  • Polarization dependant loss

    Max 0.2dB

  • Return Loss

    > 45dB

  • Isolation

    > 30dB (to adjacent channel)

  • Directivity

    > 55dB

  • Temp. dependant loss

    < 0.005dB/ deg.C

  • Temp. dependant change of wavelength

    < 0.003nm/ deg.C

  • Max. input power

    500mw

  • Operation

    Single or full duplex

  • Power

    None required (passive operation)

  • Dimensions

    4.72 x 3.93 x 0.75" / 11.99 x 9.98 x 1.91cm

  • Weight

    4.9oz / 138.91g

  • UPC Code

    4250479319417

About Lynx Technik AG OCM 1841

Make your optical network more efficient and flexible with the yellobrik OCM 1841 1/2RU 4-Channel CWDM Optical Multiplexers/Demultiplexers. Engineered with advanced technology, these high-quality devices are designed to transmit and receive up to four individual signals over a single fiber link, optimizing your network's performance and reliability.

Each module in the OCM 1841 series, including the OCM 1842, OCM 1843, and OCM 1844, features an innovative UPG (Upgrade) port. This allows for cascading into other 4-channel modules, thereby expanding your system's capability to a maximum of 16 channels. This scalability makes these multiplexers/demultiplexers an ideal solution for growing optical networks.

These durable devices are equipped with LC/PC Single Mode Optical Connectors, renowned for their superior performance in optical communication systems. They operate within a 1270-1330nm channel wavelength range, ensuring the efficient combination or separation of multiple optical signals in your network.

Whether used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, the yellobrik OCM 1841 series offers a versatile solution for system installations. They are perfectly compatible with the CWDM yellobrik fiber modules, with all 16 wavelengths available, further enhancing their utility in diverse optical communication setups.

Incorporate the yellobrik OCM 1841 1/2RU 4-Channel CWDM Optical Multiplexers/Demultiplexers into your network and experience a new level of reliability and efficiency in optical signal transmission and reception.

Lynx Technik AG OCM 1841 Features

  • Send / receive up to 4 channels over a single fiber link
  • Passive operation (no power required)
  • Combine all four modules for up to 16 channels
  • LC/PC single mode optical connections
  • Optional 1/2 RU 19" rack frame (RFR 1018)

Key Features

  • Utilize this optical multiplexer for reliable video signal transmissions over fiber.
  • Achieve high resolution broadcast quality with low loss using this CWDM module.
  • This compact size demux offers easy setup for your existing broadcast equipment.
  • Enjoy long range connectivity with minimal latency using optical fiber connections.
  • Ensure a reliable connection for critical video and audio signals with this unit.
  • This 4-channel CWDM is ideal for streamlining multiple video feeds into one fiber.

What's in the box:

  • Lynx Technik AG yellobrik OCM 1841 1/2RU 4-Channel CWDM Optical Mux/Demux
  • Transport Case
  • Lynx Technik AG yellobrik 3 Year Warranty
