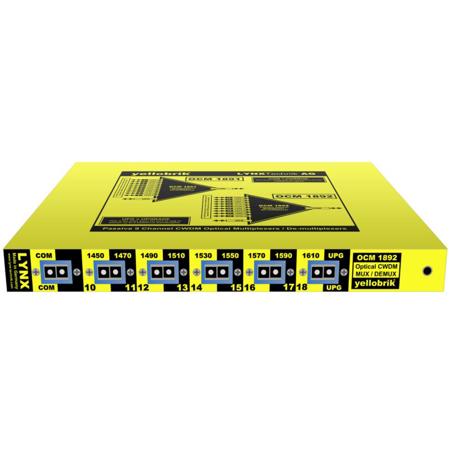

Lynx Technik AG yellobrik OCM 1892 9-Channel CWDM Optical Mux/Demux
Lynx Technik AG OCM 1892: Picture 1 thumbnail
Lynx Technik AG OCM 1892: Picture 2 thumbnail
Lynx Technik AG OCM 1892: Picture 3 thumbnail
Lynx Technik AG OCM 1892: Picture 4 thumbnail
See all Lynx Technik AG items
45% Off

Lynx Technik AG yellobrik OCM 1892 9-Channel CWDM Optical Multiplexer/Demultiplexer with LC/PC Single Mode Optical Connectors, 1450-1610nm Channel Wavelength

SKU: LTOCM1892 MFR: OCM1892
Be the first to review this itemAsk a Question
$999.00
$1,828.00
Save: $829 (45%)
OR
$84/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve reliable connection with this 9-channel CWDM optical multiplexer/demultiplexer.
  • Ensure image quality with low loss; features < 0.005 dB/deg.C temperature dependence.
  • This video transmitter offers broad compatibility with ORX 1800 and OTX 1840 devices.
  • Simplify setup; this wireless video system supports LC/PC single mode optical connectors.
  • Extend your broadcast equipment range with 9 fiber optic I/O channels (1450-1610nm).
  • Get affordable price and top performance with Lynx Technik's yellobrik OCM 1892.
See More Product Details
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Lynx Technik AG OCM 1892 Specifications

  • Compatibility

    ORX 1800, ORR 1802 receivers / OTX 1840, OTT 1812 CWDM transmitters / OTR 1840 CWDM transceiver and the OET 1540 Ethernet Transceiver (all 18 wavelengths available as specified in ITU-T G.694.2)

  • Wavelength

    9x Fiber Optic I/O channels (10 through 18)
    Channel 1: 1450 nm
    Channel 2: 1470 nm
    Channel 3: 1490 nm
    Channel 4: 1510 nm
    Channel 5: 1530 nm
    Channel 6: 1550 nm
    Channel 7: 1570 nm
    Channel 8: 1590 nm
    Channel 9: 1610 nm

  • Channel Insertion Loss

    2.7 dB

  • UPG Insertion Loss

    2.7 dB.

  • Polarization Dependant Loss

    maximum 0.2 dB

  • Return Loss

    > 45 dB

  • Temperature Dependent Loss

    < 0.005 dB/ deg.C

  • Isolation

    > 30 dB

  • Directivity

    > 55 dB

  • Change Rate

    Temperature Dependent Change of Wavelength: < 0.003 nm/ deg.C

  • Maximum Input Power

    500 mW

  • Dimensions (L x W x H)

    4.2 x 7.8 x 0.7" / 10.67 x 19.81 x 1.78cm

  • Weight

    8.1oz / 229.63g

  • UPC Code

    4250479318922

About Lynx Technik AG OCM 1892

The OCM 1892 is a compact CWDM passive 9 channel optical multiplexer / demultiplexer designed to send or receive up to 9 individual signals over a single fiber link. The module has an UPG (Upgrade) port to connect to the OCM 1891, which expands the capability of the modules to 18 CWDM channels. The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, ideal for system installations. Ideally suited for use with the CWDM yellobrik fiber modules (all 18 wavelengths available).

Lynx Technik AG OCM 1892 Features

  • Send / receive up to 9 channels over a single fiber
  • 1450nm to 1610nm (ITU-T G.694.2)
  • Passive operation (no power required)
  • Combine with OCM 1891 for 18 channels
  • LC/PC single mode optical connections
  • Optional 1/2 RU 19" rack frame

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve reliable connection with this 9-channel CWDM optical multiplexer/demultiplexer.
  • Ensure image quality with low loss; features < 0.005 dB/deg.C temperature dependence.
  • This video transmitter offers broad compatibility with ORX 1800 and OTX 1840 devices.
  • Simplify setup; this wireless video system supports LC/PC single mode optical connectors.
  • Extend your broadcast equipment range with 9 fiber optic I/O channels (1450-1610nm).
  • Get affordable price and top performance with Lynx Technik's yellobrik OCM 1892.

What's in the box:

  • Lynx Technik AG yellobrik OCM 1892 9-Channel CWDM Optical Mux/Demux
  • Plastic Transport Case
  • Lynx Technik AG yellobrik 3 Year Warranty
