Just Reduced

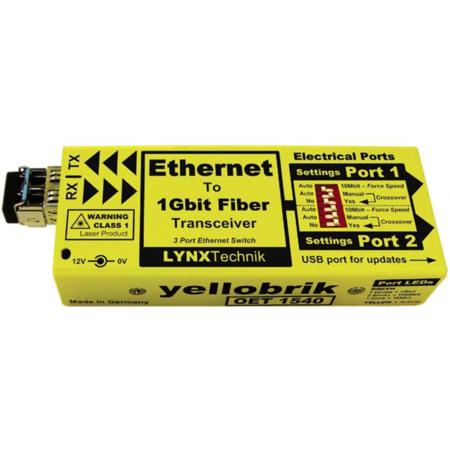

Lynx Technik AG yellobrik OET 1540 Ethernet to 1GB Fiber Transceiver Switch, CWDM, Distances Up to 40km Over Fiber

SKU: LTOET1540 MFR: OET1540
Earn VIP Reward Points

Key Features

  • Extend your Ethernet with this yellobrik transceiver, reaching up to 40km via fiber!
  • Enjoy stable signal transmission with selectable wavelengths for optimal performance.
  • This durable Ethernet to fiber switch ensures reliable connectivity in demanding setups.
  • Experience high-resolution data transfer with gigabit speeds using fiber optic technology.
  • Set up is easy! Auto-detect bit rate simplifies integrating this transceiver to your network.
  • Low latency ensures real-time data delivery, critical for live video and broadcast applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$59.99

3 Year

$79.99

4 Year

$109.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OET 1540 Specifications

  • Ethernet

    2x Ethernet ports, RJ 45 Connectors.
    10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
    100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
    1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)

    Auto detect bit rate (10/100/1000) or force to 10Mbit for each port (selectable)
    Automatic crossover detection or force manually for each port (selectable)
    Port speed / activity LED indication (next to Ethernet port)

  • Fiber Optic

    1x fiber optic input
    (Range 1270-1610nm, Sensitivity -3dBm to -23dBm)
    1x fiber optic output
    CWDM (ITU-T G.694.2) 18 selectable wavelengths
    Duplex (Single mode) using LC/PC Connections

    IEEE 802.3z
    (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)

    Fiber TX active and RX active LEDs on side of module
    Max. distance approx. 40km (24.8 miles - Singlemode)

  • Power

    +12VDC at 1.5W nominal without SFP module
    +12VDC at 2.3W nominal with SFP module
    (supports 7-15VDC input range)

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F

  • Humidity

    90% (non condensing)

  • Dimensions

    4.73 x 1.65 x 0.86" / 12.01 x 4.19 x 2.18cm

  • Weight

    4.4oz / 124.74g

About Lynx Technik AG OET 1540

An advanced solution for extending Ethernet connectivity over long distances, the yellobrik OET 1540 Ethernet to 1GB Fiber Transceiver Switch is a compact and efficient CWDM-compatible device. Designed to enhance network infrastructure, this transceiver switch supports the transmission of electrical Ethernet signals over fiber optic cables, reaching distances of up to 40km. Operating at a constant high-speed 1 Gbit optical transceiver speed, it ensures a stable and error-free connection between locations.

The OET 1540 is equipped with 18 selectable CWDM wavelengths, making it highly adaptable for use in multiplexed CWDM environments. This flexibility allows for seamless integration into existing network setups. When paired with another OET 1540 at the receiving end, utilizing two fiber links, it forms a cost-effective Ethernet extender system, ideal for long-distance applications.

Featuring two standard RJ45 electrical Ethernet ports alongside fiber I/O, the OET 1540 functions as a versatile 3-port Ethernet switch. It is designed to accommodate legacy systems, with each electrical Ethernet port capable of automatic speed detection (10/100/1000 Mbps) or manual configuration to 10 Mbps. Additionally, the ports offer auto crossover detection, with the option for manual adjustment via dip switches, ensuring compatibility and ease of use in various network environments.

This transceiver switch is an excellent choice for those seeking a reliable and efficient method to extend Ethernet networks over significant distances while maintaining high-speed data transmission and network stability.

Lynx Technik AG OET 1540 Features

  • Supports standard Ethernet inputs up to 1 Gbit
  • 3 port Ethernet switch (1 fiber, 2 electrical)
  • Auto (10/100/1000) port speed detection
  • Manually force 10Mbit electrical speed (if needed)
  • Fiber transceiver speed always 1 Gbit
  • Auto or manual electrical crossover selection
  • Distances up to 40km (24.8 miles) over fiber
  • 18 CWDM wavelength selections (ITU-T G.694.2)

Key Features

  • Extend your Ethernet with this yellobrik transceiver, reaching up to 40km via fiber!
  • Enjoy stable signal transmission with selectable wavelengths for optimal performance.
  • This durable Ethernet to fiber switch ensures reliable connectivity in demanding setups.
  • Experience high-resolution data transfer with gigabit speeds using fiber optic technology.
  • Set up is easy! Auto-detect bit rate simplifies integrating this transceiver to your network.
  • Low latency ensures real-time data delivery, critical for live video and broadcast applications.

What's in the box:

  • Lynx Technik AG yellobrik OET 1540 Ethernet to 1GB Fiber Transceiver Switch
  • AC Power Supplies
  • Plastic Transport Case
  • Lynx Technik AG yellobrik 3 Year Warranty
