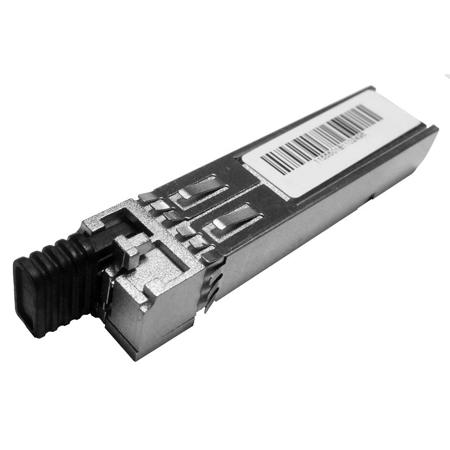

Lynx Technik AG yellobrik OH-BD-1-1550 3GB SDI Bidirectional Optical SFP Transceiver with LC Fiber Connector, 1550nm Transmitter Wavelength, Distances Up to 10km

SKU: LTOHBD11550 MFR: OH-BD-1-1550
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 3GB SDI Bidirectional Optical SFP Transceiver.
  • Achieve long-distance connectivity up to 10km using the 1550nm transmitter wavelength.
  • Utilize this SFP module for broadcast-quality video signal transmission with low jitter.
  • Experience seamless integration with LC Fiber Connectors for efficient networking setups.
  • Maintain signal integrity with receiver sensitivity down to -16 dBm for optimal performance.
  • This Lynx Technik transceiver supports robust optical connections in demanding environments.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-BD-1-1550 Specifications

  • TX: Intrinsic Jitter (ps)

    At 2.97 Gb/s:
    Typ: 45
    Max: 80
    At 1.485 Gbit/s:
    Typ: 45
    Max: 80
    At 270 Mbit/s:
    Typ: 45
    Max: 80

  • TX: Wavelength

    Min: 1530nm
    Typ: 1550nm
    max: 1570nm

  • TX: Optical Power

    Min: -8dBm
    Typ: -5dBm
    Max: -3dBm

  • TX: Linear Extinction Ratio

    Min:5
    Typ:8

  • Receiver Sensitivity

    At 2.97 Gb/s:
    Min: -16 dBm
    At 1.485 Gbit/s:
    Min: -16 At 270 Mbit/s:
    Min:-16 dBm

  • RX: Wavelength

    Min:1260nm
    Typ: 1310nm
    Max: 1320nm

  • RX: Overload

    Max: 3 dBm

  • RX: Loss of Signal Asserted

    Min: -35 dBm

  • RX: Loss of Signal De-Asserted

    Max: -16 dBm

  • RX: Optical Hysteresis

    Min: 0.5 dBm
    Typ: 2 dBm

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    Typ: 200 mA
    Max: 300mA

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49"

  • Weight

    50g / 1.76oz

About Lynx Technik AG OH-BD-1-1550

Let the yellobrik OH-BD-1-1550 3GB SDI Bidirectional Optical SFP Transceiver with LC Fiber Connector be your reliable solution for high-speed, long-distance data transmission. This advanced and innovative transceiver module, designed for select LYNX Technik yellobrik and Series 5000 products, offers high-quality and durable performance for your data center, telecommunications, and other demanding applications.

Engineered to transmit and receive optical SDI signals over a single fiber link, this transceiver operates at a fixed transmitter wavelength of 1550nm, making it suitable for distances up to an impressive 10km. The receiver wavelength ranges between 1480nm and 1600nm, ensuring versatile and efficient data transmission.

This SFP module is designed to accommodate 270Mbit, 1.485Gbit, and 2.97Gbit SDI signals, conforming to SMPTE 424M, 292M, 259M, and DVB-ASI standards. This compatibility makes it a versatile choice for various brands and models, enhancing its usability across different devices.

The yellobrik OH-BD-1-1550 transceiver comes with a socket or "cage" for easy installation or upgrade in the supporting LYNX product. The hot-swappable feature of this SFP ensures minimal downtime during maintenance or upgrades, enhancing your operational efficiency.

Typically used in simple WDM closed loop point-to-point applications, this transceiver is intended to be paired with the OH-BD-1-1310 SFP at the other end of the fiber link, providing a comprehensive solution for your data transmission needs. Trust in the yellobrik OH-BD-1-1550 3GB SDI Bidirectional Optical SFP Transceiver for your long-distance, high-speed data transmission requirements.

Lynx Technik AG OH-BD-1-1550 Features

  • SDI multi-rate optical bidirectional transceiver for 3G-SDI, HD-SDI and SD-SDI signals
  • 1 port bidirectional operation over single fiber (singlemode)
  • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • 1550nm TX Wavelength / 1310nm RX Wavelength
  • For distances up to 10km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Key Features

  • Ensure reliable data transfer with this 3GB SDI Bidirectional Optical SFP Transceiver.
  • Achieve long-distance connectivity up to 10km using the 1550nm transmitter wavelength.
  • Utilize this SFP module for broadcast-quality video signal transmission with low jitter.
  • Experience seamless integration with LC Fiber Connectors for efficient networking setups.
  • Maintain signal integrity with receiver sensitivity down to -16 dBm for optimal performance.
  • This Lynx Technik transceiver supports robust optical connections in demanding environments.

What's in the box:

  • Lynx Technik AG yellobrik OH-BD-1-1550 Bidirectional Optical SFP Transceiver
  • Lynx Technik AG yellobrik 3 Year Warranty
