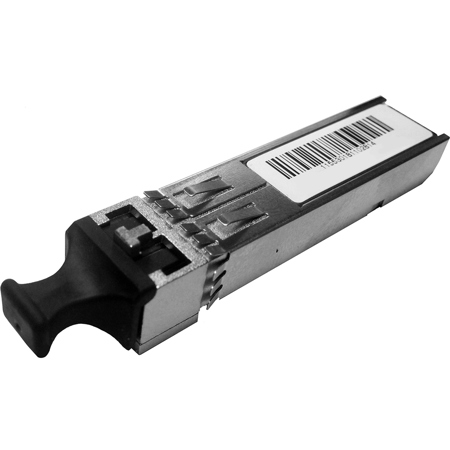

Lynx Studio OH-RX-12G-LC 12G-SDI Fiber Optic SFP Receiver with LC Connectors

SKU: LTOHRX12LC MFR: OH-RX-12G-LC
Earn VIP Reward Points

Key Features

  • Ensure high-quality video with this 12G-SDI Fiber Optic SFP Receiver, offering reliable connectivity.
  • Achieve seamless video signal reception with wide 1260nm-1620nm wavelength compatibility for your setup.
  • This Lynx Studio receiver supports up to 11.88 Gb/s, ensuring top-notch video quality for critical tasks.
  • Operate confidently, even in demanding conditions, with a temperature range of 32 to 158 degrees F.
  • Get consistent performance with minimal signal loss; assert at 30dBm for reliable video transmission.
  • Compact design (2.24 x 0.52 x 0.48") integrates easily, making it a versatile addition to your workflow.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Studio OH-RX-12G-LC Specifications

  • Receiver Sensitivity

    11.88 Gb/s, Max.: -10dBm
    5.94 Gbit/s, Max.: -14dBm
    2.97 Gbit/s, Max.: -14dBm
    1.485 Gbit/s, Max.: -16dBm
    (Measured with pathological pattern)

  • Wavelength

    MIn: 1260nm, Max.: 1620nm

  • Overload

    Min.: -2dBm

  • Loss of Signal De Assert

    Max.: -10dBm

  • Loss of Signal Assert

    Min.: 30dBm

  • Optical Hysteresis

    Min.: 0.5dB, Typ: 2dB

  • Operating Temperature Range

    32 Degree to 158 Degree F (0 to 70 Degree C)

  • Humidity (non condensing)

    90%

  • Power Supply Voltage

    Min.: 3.1 VDC, Typ: 3.3 VDC, Max.: 3.5 VDC

  • Power Consumption

    Typ: 180mA, Max: 200mA

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC Simplex - single mode

  • Dimensions

    2.24 x 0.52 x 0.48" (57 x 13.4 x 12.4mm) (Not including connector - typ)

  • Weight

    1.76 oz (50g)

About Lynx Studio OH-RX-12G-LC

Bring high-quality signal conversion to your electronic setup with the OH-RX-12G-LC 12G-SDI Fiber Optic SFP Receiver with LC Connectors. This advanced SDI optical receiver is a seamlessly integrated plug-in option for select LYNX Technik products, designed to facilitate the efficient conversion of an optical fiber SDI signal into an electrical SDI signal.

With a wavelength capture range between 1260nm and 1620nm, this SFP module ensures optimal performance across a broad spectrum. It's engineered to accommodate a variety of SDI signals, including 12G, 6G, 3G, and 1.5G, conforming to SMPTE 2082, 424M, 292M standards. This compatibility ensures that the OH-RX-12G-LC 12G-SDI Fiber Optic SFP Receiver can handle a wide range of signal types, making it a versatile addition to your equipment.

The module features a socket, or "cage", designed specifically for the SFP in the supporting LYNX Technik product. This design allows for easy installation or upgrade, making it a user-friendly option for both professionals and enthusiasts alike. Plus, the SFP is hot swappable, adding to its convenience and functionality.

Incorporate the OH-RX-12G-LC 12G-SDI Fiber Optic SFP Receiver with LC Connectors into your setup for reliable, high-quality signal conversion. Whether you're a professional in the field or an electronics enthusiast, this receiver offers the performance and versatility you need.

Lynx Studio OH-RX-12G-LC Features

  • SDI multi-rate fiber optic receiver for 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI
  • Support for SMPTE 2082, SMPTE 424M, SMPTE 292M
  • Supports 1260 to 1620nm wavelengths
  • For use with yellobrik and greenMachine product lines
  • Pluggable and hot swappable
  • LC connector (single mode fiber only)
  • Lead free and RoHS compliant

Key Features

  • Ensure high-quality video with this 12G-SDI Fiber Optic SFP Receiver, offering reliable connectivity.
  • Achieve seamless video signal reception with wide 1260nm-1620nm wavelength compatibility for your setup.
  • This Lynx Studio receiver supports up to 11.88 Gb/s, ensuring top-notch video quality for critical tasks.
  • Operate confidently, even in demanding conditions, with a temperature range of 32 to 158 degrees F.
  • Get consistent performance with minimal signal loss; assert at 30dBm for reliable video transmission.
  • Compact design (2.24 x 0.52 x 0.48") integrates easily, making it a versatile addition to your workflow.

What's in the box:

  • Lynx Technik AG OH-RX-12G-LC 12G-SDI Fiber Optic SFP Receiver with LC Connectors
  • Lynx Technik AG 3 Year Limited Warranty
