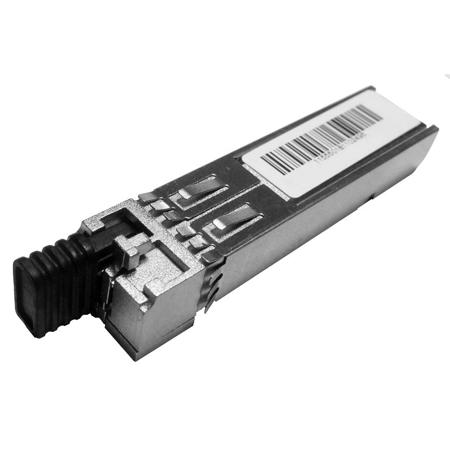

Lynx Technik AG yellobrik OH-RX-8 Single Channel Fiber Optic SFP Receiver with High-sensitivity Long-haul LC Fiber Connectors, 1260-1620nm Wavelength

SKU: LTOHRX8 MFR: OH-RX-8
Earn VIP Reward Points

Key Features

  • Ensure reliable video signal transmission with this high-performance Lynx Technik SFP receiver.
  • Achieve seamless connectivity using its long-haul LC fiber connectors, perfect for broadcast applications.
  • Experience optimal performance across a wide 1260-1620nm wavelength range with this SFP module.
  • Benefit from the superior receiver sensitivity, ensuring clear signals even over extended distances.
  • Designed for reliability, this Lynx Technik receiver supports single-mode fiber connections effortlessly.
  • This cost-effective SFP receiver offers a compact design, fitting easily into your existing setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-RX-8 Specifications

  • Receiver Sensitivity

    At 2.97 Gb/s:
    Min: -26 dBm
    At 1.485 Gbit/s:
    Min: - At 270 Mbit/s:
    Min:-26 dBm

  • Wavelength

    1260nm - 1620nm

  • Overload

    Min: -7.5 dBm

  • Loss of Signal Asserted

    Min: -40 dBm

  • Loss of Signal De-Asserted

    Max: -26 dBm

  • Optical Hysteresis

    Min: 0.5 dBm
    Typ: 2 dBm

  • SFP Connector pinning

    Proprietary

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    Min: 3.1 VDC
    Typ: 3.3 VDC
    Max: 3.5 VDC

  • Power Consumption

    Typ:130 mA
    Max: 150 mA

  • Humidity

    90%(non condensing)

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49"

  • Weight

    50g / 1.76oz

About Lynx Technik AG OH-RX-8

How the yellobrik OH-RX-8 Single Channel Fiber Optic SFP Receiver revolutionizes your data transmission needs! This high-quality and reliable receiver is a versatile addition to your LYNX Technik yellobrik and Series 5000 products. It's an innovative solution that transforms your SDI optical signal into an electrical one, paving the way for seamless processing within these devices.

Boasting compatibility with all wavelengths between 1260 and 1620nm as per ITU-T G694.2 (18 wavelengths), this advanced receiver is designed to cater to a broad spectrum of applications. Its high-sensitivity feature ensures a wider operational headroom than the standard OH-RX-1-LC receiver, making it an ideal choice for long-haul applications where signal strength may diminish over distance.

The yellobrik OH-RX-8 is not just durable but also flexible, accommodating 270Mbit / 1.485Gbit and 2.97Gbit SDI signals in compliance with SMPTE 424M, 292M, 259M, and DVB-ASI standards. This ensures that your data transmission needs are met without compromise.

Ease of installation is another key feature of this product. The SFP is hot-swappable and a socket or "cage" is provided in the supporting LYNX product, making upgrades or installations a breeze.

In summary, the yellobrik OH-RX-8 Single Channel Fiber Optic SFP Receiver is a high-sensitivity, long-haul LC fiber connector that offers superior performance, reliability, and versatility for your networking applications. Whether you're operating in data centers, telecommunications, or CATV systems, this product is designed to meet your fiber optic communication needs.

Lynx Technik AG OH-RX-8 Features

  • SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals
  • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Support for all wavelengths between 1260nm and 1620nm
  • LC Simplex fiber connector
  • High sensitivity for long haul applications (single mode)
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Key Features

  • Ensure reliable video signal transmission with this high-performance Lynx Technik SFP receiver.
  • Achieve seamless connectivity using its long-haul LC fiber connectors, perfect for broadcast applications.
  • Experience optimal performance across a wide 1260-1620nm wavelength range with this SFP module.
  • Benefit from the superior receiver sensitivity, ensuring clear signals even over extended distances.
  • Designed for reliability, this Lynx Technik receiver supports single-mode fiber connections effortlessly.
  • This cost-effective SFP receiver offers a compact design, fitting easily into your existing setup.

What's in the box:

  • Lynx Technik AG yellobrik OH-RX-8 Single Channel Fiber Optic SFP Receiver
  • Lynx Technik AG yellobrik 3 Year Warranty
