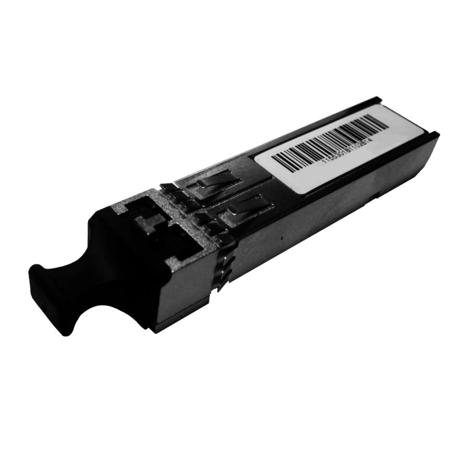

Lynx Technik AG OH-TR-4-1310 Fiber Optic 3G-SDI Transceiver SFP Module with LC Connectors, 1310nm Wavelength, CWDM Fiber Link, Up to 40km TX Distances

From the innovative minds at LYNX Technik comes the OH-TR-4-1310 Fiber Optic 3G-SDI Transceiver SFP Module, a high-quality, advanced solution for your fiber optic communication needs. This durable module is a versatile plug-in option, compatible with select yellobrik and Series 5000 products.

Designed with a dual function, this reliable transceiver module includes both a receiver and a transmitter. These components work together to convert an electrical SDI signal into an optical signal, facilitating transmission over fiber optic cables. In addition, it also receives an optical SDI signal and converts it back into an electrical signal for further processing.

The OH-TR-4-1310 module is equipped with LC connectors, renowned for their durability and reliability in fiber optic connections. It operates at a 1310nm wavelength and is compatible with CWDM fiber link, allowing for extended transmission distances of up to 40km.

This advanced module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals, conforming to SMPTE 424M, 292M, 259M, and DVB-ASI standards. It offers 18 CWDM wavelength selections, providing a wide range of options for your specific network requirements.

For ease of installation or upgrade, a socket or "cage" is provided for the SFP in the supporting LYNX product. Plus, the SFP is hot swappable, adding to its convenience and functionality.

Whether you're working in telecommunications, managing a data center, or overseeing a CCTV surveillance system, the OH-TR-4-1310 Fiber Optic 3G-SDI Transceiver SFP Module is a reliable, high-quality choice for long-distance fiber optic communication.
