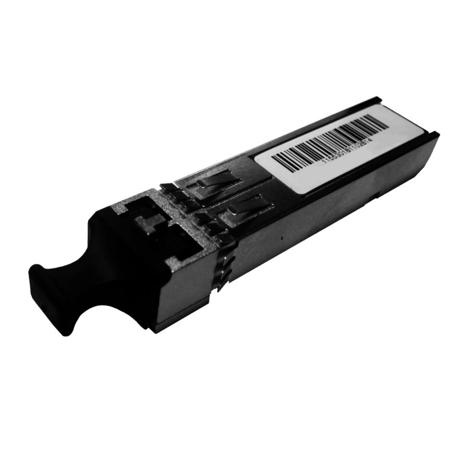

Lynx Technik AG OH-TR-51 Single Mode Data Optical Transceiver SFP Module with LC Connectors, 1310nm (non CWDM) Transmitter and 1260-1580nm Receiver Wavelength, Up to 10km TX Distances

SKU: LTOHTR51LC MFR: OH-TR-51-LC
Earn VIP Reward Points

Key Features

  • Ensure reliable data transmission with this Lynx Technik SFP module's high performance.
  • Achieve up to 10km TX distances, perfect for extending your network's reach efficiently.
  • This SFP module offers excellent power efficiency, helping to reduce operational costs.
  • Enhance your network's security features with this dependable single-mode transceiver.
  • Enjoy ease of management with this user-friendly SFP module, designed for simple setup.
  • Experience superior reliability in data transfer using the 1310nm optical transceiver.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-TR-51 Specifications

  • Transmitter: Wavelength

    Min: 1260nm
    Typ: 1310nm
    Max: 1360nm

  • Transmitter: Optical Power

    Min: -9 dBm
    Max: -3 dBm

  • Transmitter: Extinction ratio

    Min: 9.0

  • Transmitter: Spectral width (-20dB)

    Max: 4nm

  • Transmitter: Data Rate

    1.25 Gbps

  • Receiver: Sensitivity

    Max: -23 dBm

  • Receiver: Wavelength

    Min: 1260nm
    Max: 1580nm

  • Receiver: Overload

    Min: -3 dBm

  • Receiver: Loss of Signal Asserted

    Min: -35 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -24 dBm

  • Receiver: Optical Hysteresis

    Min: 1 dB
    Max: 4 dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    300mA

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

  • UPC Code

    04250479324190

About Lynx Technik AG OH-TR-51

If you're seeking a high-quality, reliable solution for your data transmission needs, look no further than the OH-TR-51 Single Mode Data Optical Transceiver SFP Module with LC Connectors. This advanced and innovative module is a versatile addition to select LYNX Technik yellobrik and Series 5000 products, offering seamless integration and compatibility with a wide range of networking equipment.

The OH-TR-51 is not just a transceiver, but a powerful tool that facilitates the conversion of an electrical data signal into an optical one for transmission over fiber. It also receives an optical data signal, converting it back into an electrical signal for further processing. This dual functionality ensures efficient and reliable data transmission, making it an ideal choice for businesses or individuals looking to expand or upgrade their network.

With a fixed TX wavelength of 1310nm (non CWDM), this optical transceiver is designed to handle the demands of long-distance data transmission. It is suitable for distances up to 10km when used with single mode fiber, making it an excellent choice for large buildings or outdoor installations where extended reach is required.

The OH-TR-51 comes with a socket or "cage" provided for the SFP in the supporting LYNX product, ensuring easy installation or upgrade. Plus, the SFP is hot swappable, adding to its convenience and user-friendly design. Experience the durability, quality, and performance of the OH-TR-51 Single Mode Data Optical Transceiver SFP Module with LC Connectors today.

Lynx Technik AG OH-TR-51 Features

  • High-performance single mode SFP module with LC connectors for robust data transmission
  • Dual-functionality transceiver with 1310nm TX and 1260-1580nm RX wavelengths
  • Long-range connectivity suitable for up to 10km on single mode fiber
  • Seamless integration with select LYNX Technik yellobrik and Series 5000 products
  • Easy installation with provided SFP socket or "cage" and hot-swappable design
  • Durable and reliable for efficient network expansion or upgrades

Key Features

  • Ensure reliable data transmission with this Lynx Technik SFP module's high performance.
  • Achieve up to 10km TX distances, perfect for extending your network's reach efficiently.
  • This SFP module offers excellent power efficiency, helping to reduce operational costs.
  • Enhance your network's security features with this dependable single-mode transceiver.
  • Enjoy ease of management with this user-friendly SFP module, designed for simple setup.
  • Experience superior reliability in data transfer using the 1310nm optical transceiver.
