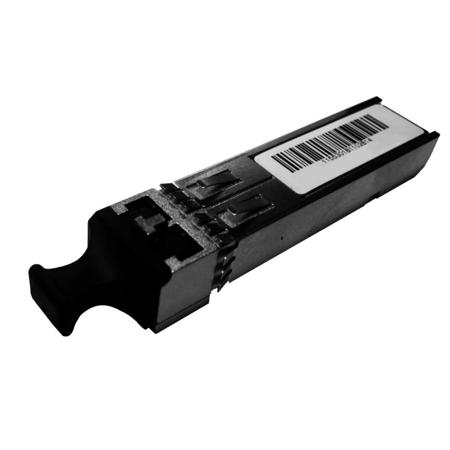

Lynx Technik AG OH-TR-54-1350 Fiber Optic SFP Data Transceiver Module
See all Lynx Technik AG items

Lynx Technik AG OH-TR-54-1350 Fiber Optic SFP Data Transceiver Module with LC Connectors, 1350nm Wavelength, CWDM Fiber Link, Up to 40km TX Distances

SKU: LTOHTR541350 MFR: OH-TR-54-1350-LC
Be the first to review this itemAsk a Question
$847.40
$892.00
Save: $44.6 (5%)
OR
$71/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Boost your network with this Fiber Optic SFP, ensuring fast data transfer at 1.25 Gbps.
  • Achieve reliable connectivity over distances up to 40km using this 1350nm SFP transceiver.
  • Ensure seamless integration with LC connectors, perfect for your existing network infrastructure.
  • Experience stable performance with a wide operating temperature range in your networking setup.
  • Minimize downtime with robust receiver sensitivity, crucial for maintaining network security.
  • This Lynx Technik SFP module offers a dependable fiber link, enhancing your network capacity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Lynx Technik AG OH-TR-54-1350 Specifications

  • Transmitter: Spectral width (-20dB)

    Max: 1nm

  • Transmitter: Wavelength

    Min: 1350 -6.5nm
    Typ: 1350nm
    Max: 1350 +6.5nm

  • Transmitter: Optical Power

    Min: -5 dBm
    Max: 0 dBm

  • Transmitter: Extinction ratio

    Min: 9.0

  • Transmitter: Data rate

    Typ: 1.25 Gbps

  • Receiver: Sensitivity

    Min: -23 dBm

  • Receiver: Wavelength

    1350nm

  • Receiver: Overload

    Max: -3 dBm

  • Receiver: Loss of Signal Asserted

    Min: -35 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -24 dBm

  • Receiver: Optical Hysteresis

    Min: 1 dB
    Max: 4 dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    300mA

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

  • UPC Code

    04250479313552

About Lynx Technik AG OH-TR-54-1350

The OH-TR-54-XXXX Data optical transceiver is a plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical data signal into an optical signal for transmission over fiber and will also receive an optical data signal for conversion to an electrical signal for further processing.

18 CWDM wavelength selections are provided and it is suitable for distances up to 40km. A socket or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

Lynx Technik AG OH-TR-54-1350 Features

  • Data optical transceiver
  • Receiver and transmitter in single package
  • Data rate 1.25Gbps compatible with SONET OC-24-LR-1
  • 18 CWDM wavelength selections according to ITU-T G694.2
  • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
  • TX Distances up to 40km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Boost your network with this Fiber Optic SFP, ensuring fast data transfer at 1.25 Gbps.
  • Achieve reliable connectivity over distances up to 40km using this 1350nm SFP transceiver.
  • Ensure seamless integration with LC connectors, perfect for your existing network infrastructure.
  • Experience stable performance with a wide operating temperature range in your networking setup.
  • Minimize downtime with robust receiver sensitivity, crucial for maintaining network security.
  • This Lynx Technik SFP module offers a dependable fiber link, enhancing your network capacity.

What's in the box:

  • Lynx Technik AG OH-TR-54-1350 Fiber Optic SFP Data Transceiver Module with LC Connectors
  • Lynx Technik AG 2 Year Limited Warranty
