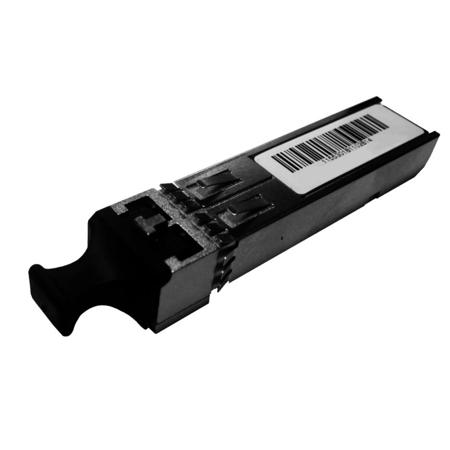

Lynx Technik AG OH-TR-54-1370 Fiber Optic SFP Data Transceiver Module with LC Connectors, 1370nm Wavelength, CWDM Fiber Link, Up to 40km TX Distances

SKU: LTOHTR541370 MFR: OH-TR-54-1370-LC
Earn VIP Reward Points

Key Features

  • Experience fast data transfer with this Fiber Optic SFP module, ensuring seamless connectivity.
  • Extend your network reach up to 40km using this 1370nm Wavelength CWDM fiber link transceiver.
  • Ensure network security with robust optical performance, featuring a min. 9.0 extinction ratio.
  • This SFP module supports a data rate of 1.25 Gbps, perfect for high-speed networking needs.
  • Enjoy reliable performance with a wide operating temperature range for your networking switches.
  • Easy to install with LC connectors, this module integrates effortlessly into your existing setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-TR-54-1370 Specifications

  • Transmitter: Spectral width (-20dB)

    Max: 1nm

  • Transmitter: Wavelength

    Min: 1370 -6.5nm
    Typ: 1370nm
    Max: 1370 +6.5nm

  • Transmitter: Optical Power

    Min: -5 dBm
    Max: 0 dBm

  • Transmitter: Extinction ratio

    Min: 9.0

  • Transmitter: Data rate

    Typ: 1.25 Gbps

  • Receiver: Sensitivity

    Min: -23 dBm

  • Receiver: Wavelength

    1370nm

  • Receiver: Overload

    Max: -3 dBm

  • Receiver: Loss of Signal Asserted

    Min: -35 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -24 dBm

  • Receiver: Optical Hysteresis

    Min: 1 dB
    Max: 4 dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    300mA

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

About Lynx Technik AG OH-TR-54-1370

Become a part of the digital revolution with the OH-TR-54-1370 Fiber Optic SFP Data Transceiver Module. This high-quality, durable module is an essential plug-in option for select LYNX Technik yellobrik and Series 5000 products. It's an advanced and innovative solution that includes both a receiver and a transmitter, facilitating the seamless conversion of an electrical data signal into an optical one for transmission over fiber.

This reliable module is also capable of receiving an optical data signal and converting it back into an electrical signal for further processing. It operates at a wavelength of 1370nm and supports 18 CWDM wavelength selections, making it a versatile choice for your fiber optic communication needs.

Designed for long-distance transmission, this module is suitable for distances up to 40km. It features LC connectors and is compatible with various brands and models of fiber optic equipment, ensuring a wide range of application possibilities.

The module comes with a socket or "cage" provided for the SFP in the supporting LYNX product, making installation or upgrades a breeze. Plus, the SFP is hot-swappable, adding to its convenience and user-friendly design.

Experience the blend of performance and reliability with the OH-TR-54-1370 Fiber Optic SFP Data Transceiver Module, a perfect choice for those looking to extend the reach of their fiber network.

Lynx Technik AG OH-TR-54-1370 Features

  • Data optical transceiver
  • Receiver and transmitter in single package
  • Data rate 1.25Gbps compatible with SONET OC-24-LR-1
  • 18 CWDM wavelength selections according to ITU-T G694.2
  • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
  • TX Distances up to 40km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Key Features

  • Experience fast data transfer with this Fiber Optic SFP module, ensuring seamless connectivity.
  • Extend your network reach up to 40km using this 1370nm Wavelength CWDM fiber link transceiver.
  • Ensure network security with robust optical performance, featuring a min. 9.0 extinction ratio.
  • This SFP module supports a data rate of 1.25 Gbps, perfect for high-speed networking needs.
  • Enjoy reliable performance with a wide operating temperature range for your networking switches.
  • Easy to install with LC connectors, this module integrates effortlessly into your existing setup.

What's in the box:

  • Lynx Technik AG OH-TR-54-1370 Fiber Optic SFP Data Transceiver Module with LC Connectors
  • Lynx Technik AG 2 Year Limited Warranty
