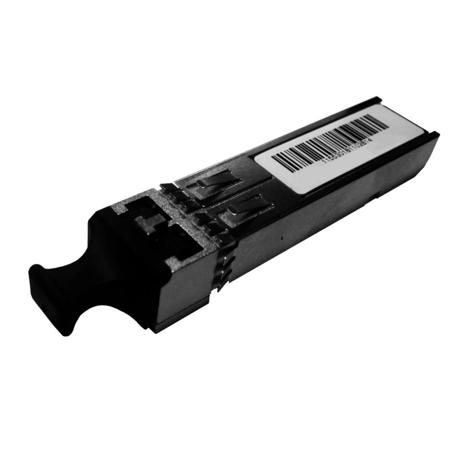

Lynx Technik AG OH-TR-54-1450 Fiber Optic SFP Data Transceiver Module with LC Connectors, 1450nm Wavelength, CWDM Fiber Link, Up to 40km TX Distances

SKU: LTOHTR541450 MFR: OH-TR-54-1450-LC
Earn VIP Reward Points

Key Features

  • Ensure reliable data transmission with this Fiber Optic SFP module, vital for networking.
  • Achieve up to 40km TX distances using this 1450nm wavelength CWDM fiber link module.
  • This SFP data transceiver module supports high bandwidth for seamless connectivity.
  • Experience stable performance with a spectral width of Max: 1nm for optimal networking.
  • With LC Connectors, this fiber optic module ensures secure and efficient data transfer.
  • This energy efficient module operates at 3.3VDC, reducing power consumption in networks.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-TR-54-1450 Specifications

  • Transmitter: Spectral width (-20dB)

    Max: 1nm

  • Transmitter: Wavelength

    Min: 1450 -6.5nm
    Typ: 1450nm
    Max: 1450 +6.5nm

  • Transmitter: Optical Power

    Min: -5 dBm
    Max: 0 dBm

  • Transmitter: Extinction ratio

    Min: 9.0

  • Transmitter: Data rate

    Typ: 1.25 Gbps

  • Receiver: Sensitivity

    Min: -23 dBm

  • Receiver: Wavelength

    1450nm

  • Receiver: Overload

    Max: -3 dBm

  • Receiver: Loss of Signal Asserted

    Min: -35 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -24 dBm

  • Receiver: Optical Hysteresis

    Min: 1 dB
    Max: 4 dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    300mA

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

  • UPC Code

    04250479314559

About Lynx Technik AG OH-TR-54-1450

With the OH-TR-54-1450 Fiber Optic SFP Data Transceiver Module, you can seamlessly integrate high-speed data transmission into your existing LYNX Technik yellobrik and Series 5000 systems. This advanced SFP module is equipped with both a receiver and a transmitter, enabling the efficient conversion of electrical data signals into optical signals for transmission over fiber.

Designed to support the 1450nm wavelength, this transceiver module also features CWDM fiber link technology, offering 18 CWDM wavelength selections to cater to a variety of data transmission needs. This feature ensures optimal performance and flexibility in diverse networking environments.

The OH-TR-54-1450 Fiber Optic SFP Data Transceiver Module is capable of transmitting data over distances of up to 40km, making it a reliable choice for long-range communication applications.

For ease of installation and upgrade, a socket or "cage" is included for the SFP in the supporting LYNX product. Plus, the module is hot-swappable, allowing for quick and easy replacement without the need to power down your system.

Incorporating LC connectors, this transceiver module ensures secure and high-quality connections, enhancing the overall performance and reliability of your data transmission system.

Experience the power of efficient, long-distance data transmission with the OH-TR-54-1450 Fiber Optic SFP Data Transceiver Module.

Lynx Technik AG OH-TR-54-1450 Features

  • Data optical transceiver
  • Receiver and transmitter in single package
  • Data rate 1.25Gbps compatible with SONET OC-24-LR-1
  • 18 CWDM wavelength selections according to ITU-T G694.2
  • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
  • TX Distances up to 40km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Key Features

  • Ensure reliable data transmission with this Fiber Optic SFP module, vital for networking.
  • Achieve up to 40km TX distances using this 1450nm wavelength CWDM fiber link module.
  • This SFP data transceiver module supports high bandwidth for seamless connectivity.
  • Experience stable performance with a spectral width of Max: 1nm for optimal networking.
  • With LC Connectors, this fiber optic module ensures secure and efficient data transfer.
  • This energy efficient module operates at 3.3VDC, reducing power consumption in networks.

What's in the box:

  • Lynx Technik AG OH-TR-54-1450 Fiber Optic SFP Data Transceiver Module with LC Connectors
  • Lynx Technik AG 2 Year Limited Warranty
