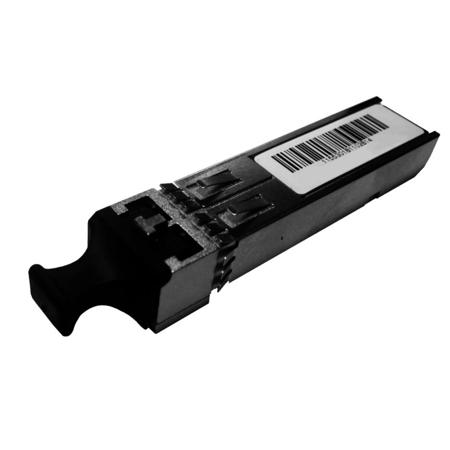

Lynx Technik AG OH-TR-54-1570 Fiber Optic SFP Data Transceiver Module with LC Connectors, 1570nm Wavelength, CWDM Fiber Link, Up to 40km TX Distances

SKU: LTOHTR541570 MFR: OH-TR-54-1570-LC
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this Lynx Technik fiber optic SFP module for reliable networking.
  • Achieve up to 40km TX distances using this 1570nm wavelength CWDM fiber link module.
  • This SFP transceiver module supports 1.25 Gbps data rate for efficient network performance.
  • Experience secure data transmission with robust security features in this SFP module.
  • Benefit from low power consumption (300mA) with this energy-efficient SFP transceiver.
  • Easily connect with LC connectors, perfect for creating a high-density networking environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-TR-54-1570 Specifications

  • Transmitter: Spectral width (-20dB)

    Max: 1nm

  • Transmitter: Wavelength

    Min: 1570 -6.5nm
    Typ: 1570nm
    Max: 1570 +6.5nm

  • Transmitter: Optical Power

    Min: -5 dBm
    Max: 0 dBm

  • Transmitter: Extinction ratio

    Min: 9.0

  • Transmitter: Data rate

    Typ: 1.25 Gbps

  • Receiver: Sensitivity

    Min: -23 dBm

  • Receiver: Wavelength

    1570nm

  • Receiver: Overload

    Max: -3 dBm

  • Receiver: Loss of Signal Asserted

    Min: -35 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -24 dBm

  • Receiver: Optical Hysteresis

    Min: 1 dB
    Max: 4 dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    300mA

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

About Lynx Technik AG OH-TR-54-1570

Discover the OH-TR-54-1570 Fiber Optic SFP Data Transceiver Module, a versatile and high-quality solution for your fiber optic communication needs. This advanced module, designed for select LYNX Technik yellobrik and Series 5000 products, is a plug-in option that seamlessly integrates into your existing setup.

The innovative design of this transceiver module includes both a receiver and a transmitter. These components work in harmony to convert electrical data signals into optical signals for transmission over fiber. In addition, they are capable of receiving an optical data signal and converting it back into an electrical signal for further processing. This dual functionality ensures reliable and efficient data transmission, making it an essential tool for any fiber optic network.

The OH-TR-54-1570 module operates at a wavelength of 1570nm and supports CWDM fiber link, offering a broad range of 18 CWDM wavelength selections. This feature allows for a high degree of flexibility and compatibility with various brands and models of fiber optic equipment.

Designed for long-range communication, this module is suitable for transmission distances of up to 40km. This extended reach makes it an ideal choice for those looking to expand their network without compromising on signal quality or reliability.

The module comes with a socket or "cage" for easy installation or upgrade. Plus, the SFP is hot-swappable, ensuring minimal downtime and maximum operational efficiency.

Experience the durability, reliability, and advanced technology of the OH-TR-54-1570 Fiber Optic SFP Data Transceiver Module with LC Connectors. It's more than just a product; it's a solution for robust and reliable fiber optic communication.

Lynx Technik AG OH-TR-54-1570 Features

  • Data optical transceiver
  • Receiver and transmitter in single package
  • Data rate 1.25Gbps compatible with SONET OC-24-LR-1
  • 18 CWDM wavelength selections according to ITU-T G694.2
  • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
  • TX Distances up to 40km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Key Features

  • Ensure fast data transfer with this Lynx Technik fiber optic SFP module for reliable networking.
  • Achieve up to 40km TX distances using this 1570nm wavelength CWDM fiber link module.
  • This SFP transceiver module supports 1.25 Gbps data rate for efficient network performance.
  • Experience secure data transmission with robust security features in this SFP module.
  • Benefit from low power consumption (300mA) with this energy-efficient SFP transceiver.
  • Easily connect with LC connectors, perfect for creating a high-density networking environment.

What's in the box:

  • Lynx Technik AG OH-TR-54-1570 Fiber Optic SFP Data Transceiver Module with LC Connectors
  • Lynx Technik AG 2 Year Limited Warranty
