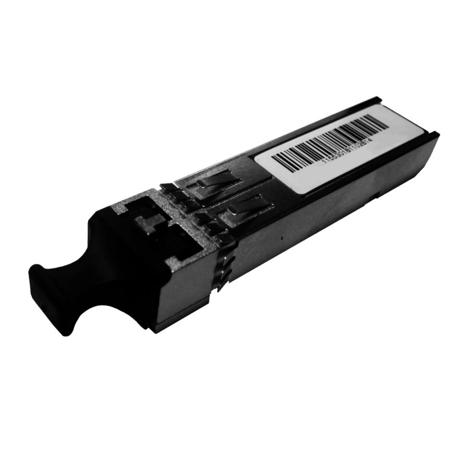

Lynx Technik AG OH-TR-58-1510 Fiber Optic SFP Data Transceiver Module
See all Lynx Technik AG items

Lynx Technik AG OH-TR-58-1510 Fiber Optic SFP Data Transceiver Module with LC Connectors, 1510nm Wavelength, CWDM Fiber Link, Up to 80km TX Distances

SKU: LTOHTR581510 MFR: OH-TR-58-1510-LC
Be the first to review this itemAsk a Question
$1,302.45
$1,371.00
Save: $68.55 (5%)
OR
$109/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve reliable data transmission up to 80km with this robust fiber optic transceiver module.
  • Ensure seamless connectivity with LC connectors, perfect for CWDM fiber link applications.
  • This Lynx Technik SFP module supports a 1.25 Gbps data rate for efficient network performance.
  • Operate confidently within a temperature range of 5 to 40 degrees C using this SFP module.
  • Minimize signal loss with a receiver sensitivity of -23 dBm, enhancing your network's reliability.
  • Experience stable performance with a 1510nm wavelength, ideal for precise data transmission.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Lynx Technik AG OH-TR-58-1510 Specifications

  • Transmitter: Spectral width (-20dB)

    Max: 1nm

  • Transmitter: Wavelength

    Min: 1510 -6.5nm
    Typ: 1510nm
    Max: 1510 +6.5nm

  • Transmitter: Optical Power

    Min: -0 dBm
    Max: +5 dBm

  • Transmitter: Extinction ratio

    Min: 9.0

  • Transmitter: Data rate

    Typ: 1.25 Gbps

  • Receiver: Sensitivity

    Min: -23 dBm

  • Receiver: Wavelength

    1510nm

  • Receiver: Overload

    Max: -3 dBm

  • Receiver: Loss of Signal Asserted

    Min: -35 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -24 dBm

  • Receiver: Optical Hysteresis

    Min: 1 dB
    Max: 4 dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    300mA

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

About Lynx Technik AG OH-TR-58-1510

The OH-TR-58-XXXX Data optical transceiver is a plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical data signal into an optical signal for transmission over fiber and will also receive an optical data signal for conversion to an electrical signal for further processing.

9 CWDM wavelength selections are provided and it is suitable for distances up to 80km. This is a higher power device intended for long haul applications. A socket or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

Lynx Technik AG OH-TR-58-1510 Features

  • Data optical transceiver
  • Receiver and transmitter in single package
  • Data rate 1.25Gbps compatible with SONET OC-24-LR-1
  • 9 CWDM wavelength selections according to ITU-T G694.2
  • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
  • TX Distances up to 80km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant
