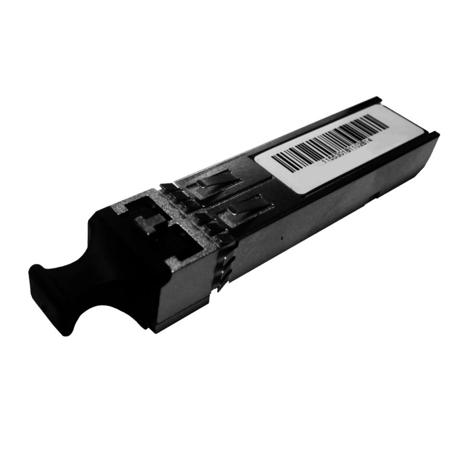

Lynx Technik AG OH-TR-58-1530 Fiber Optic SFP Data Transceiver Module with LC Connectors, 1530nm Wavelength, CWDM Fiber Link, Up to 80km TX Distances

SKU: LTOHTR581530 MFR: OH-TR-58-1530-LC
Earn VIP Reward Points

Key Features

  • Achieve reliable data transmission with this high performance Lynx Technik SFP module.
  • Extend your network reach up to 80km using this robust fiber optic transceiver module.
  • Ensure seamless connectivity with the 1.25 Gbps data rate for efficient networking.
  • Utilize the LC connectors for secure and stable fiber connections in your setup.
  • Operate confidently within a temperature range of 5 to 40 degrees Celsius.
  • Experience low power consumption with only 300mA, enhancing energy efficiency.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-TR-58-1530 Specifications

  • Transmitter: Spectral width (-20dB)

    Max: 1nm

  • Transmitter: Wavelength

    Min: 1530 -6.5nm
    Typ: 1530nm
    Max: 1530 +6.5nm

  • Transmitter: Optical Power

    Min: -0 dBm
    Max: +5 dBm

  • Transmitter: Extinction ratio

    Min: 9.0

  • Transmitter: Data rate

    Typ: 1.25 Gbps

  • Receiver: Sensitivity

    Min: -23 dBm

  • Receiver: Wavelength

    1530nm

  • Receiver: Overload

    Max: -3 dBm

  • Receiver: Loss of Signal Asserted

    Min: -35 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -24 dBm

  • Receiver: Optical Hysteresis

    Min: 1 dB
    Max: 4 dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    300mA

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

About Lynx Technik AG OH-TR-58-1530

Experience the power and versatility of the OH-TR-58-1530 Fiber Optic SFP Data Transceiver Module, a high-performance plug-in option designed for compatibility with select LYNX Technik yellobrik and Series 5000 products. This advanced SFP module is equipped with both a receiver and a transmitter, enabling the seamless conversion of electrical data signals into optical signals for efficient transmission over fiber.

In addition, this module is capable of receiving optical data signals and converting them back into electrical signals for further processing, ensuring a comprehensive solution for your data transmission needs. With nine CWDM wavelength selections available, this module offers flexibility and adaptability to suit a variety of applications.

Operating at a wavelength of 1530nm and featuring LC connectors, the OH-TR-58-1530 Fiber Optic SFP Data Transceiver Module is designed for long-haul applications, capable of transmitting data over distances of up to 80km. This high-power device is a testament to the cutting-edge technology and robust performance that characterizes the OH-TR-58-1530 series.

The module comes with a socket or "cage" for easy installation or upgrade, and its hot-swappable nature ensures minimal downtime and maximum operational efficiency. Whether you're looking to enhance your existing setup or build a new one, the OH-TR-58-1530 Fiber Optic SFP Data Transceiver Module is a reliable and high-quality choice for your data transmission needs.

Lynx Technik AG OH-TR-58-1530 Features

  • Data optical transceiver
  • Receiver and transmitter in single package
  • Data rate 1.25Gbps compatible with SONET OC-24-LR-1
  • 9 CWDM wavelength selections according to ITU-T G694.2
  • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
  • TX Distances up to 80km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant
