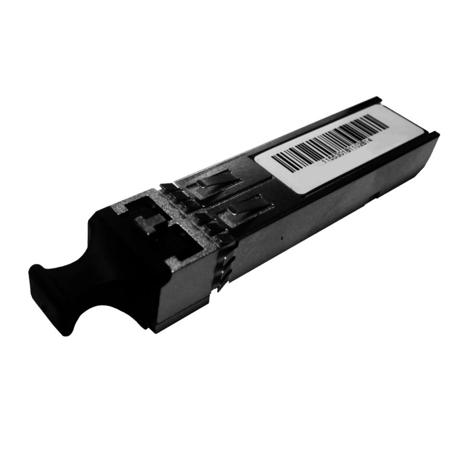

Lynx Technik AG OH-TR-8-1570 Fiber Optic 3G-SDI Transceiver SFP Module with LC Connectors, 1570nm Wavelength, CWDM Fiber Link, Up to 80km TX Distances

SKU: LTOHTR81570 MFR: OH-TR-8-1570
Earn VIP Reward Points

Key Features

  • Achieve reliable 3G-SDI transmission up to 80km with this fiber optic transceiver module.
  • Ensure high performance with a low intrinsic jitter, ideal for professional video networking.
  • This SFP module supports a 1570nm wavelength, perfect for CWDM fiber optic links.
  • Maximize your network's uptime with robust receiver sensitivity, minimizing signal loss issues.
  • Integrate seamlessly with LC connectors, designed for duplex single-mode fiber connections.
  • Operate confidently in diverse environments with a wide temperature range for networking setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-TR-8-1570 Specifications

  • Transmitter: Intrinsic Jitter (ps)

    2.97 Gb/s: Typ: 40 and Max: 80
    1.485 Gbit/s: Typ: 40 and Max: 80
    270 Mbit/s: Typ: 40 and Max: 80

  • Transmitter: Wavelength

    Min: 1570 -10nm
    Typ: 1570nm
    Max: 1570 +10nm

  • Transmitter: Optical Power

    Min: -4 dBm
    Typ: -1dBm
    Max: + 2dBm

  • Transmitter: Linear Extinction Ratio

    Min: 5.0
    Typ: 9.0

  • Receiver: Sensitivity

    2.97 Gb/s: Min: -26 dBm and Typ: -28dBm
    1.485 Gbit/s: Min: -26 dBm and Typ: -28dBm
    270 Mbit/s: Min: -26 dBm and Typ: -28dBm

  • Receiver: Wavelength

    1570nm

  • Receiver: Overload

    Max: -7.5 dBm

  • Receiver: Loss of Signal Asserted

    Min: -45 dBm

  • Receiver: Loss of Signal De-Asserted

    Max: -26 dBm

  • Receiver: Optical Hysteresis

    Min: 0.5 dB
    Typ: 2dB

  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Supply Voltage

    3.3VDC

  • Power Consumption

    200mA typical 300mA max

  • Humidity (non condensing)

    0.9

  • Dimensions

    57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)

  • Weight

    50g / 1.76oz

  • UPC Code

    04250479320925

About Lynx Technik AG OH-TR-8-1570

Explore the advanced capabilities of the OH-TR-8-1570 Fiber Optic 3G-SDI Transceiver SFP Module, a high-quality, durable solution for your long-distance data transmission needs. This innovative module, designed for select LYNX Technik yellobrik and Series 5000 products, is equipped with both a receiver and a transmitter. These components work in harmony to convert an electrical SDI signal into an optical signal for transmission over fiber, and vice versa, ensuring reliable, high-definition video transmission.

With a 1570nm wavelength and compatibility with CWDM fiber link, this transceiver module is designed to handle 270Mbit / 1.485Gbit and 2.97Gbit SDI signals, conforming to SMPTE 424M, 292M, 259M, and DVB-ASI standards. This makes it an ideal choice for those seeking to leverage the power of 3G-SDI, a leading standard in high-definition video transmission.

The module's design allows for transmission distances of up to 80km, making it a suitable choice for long haul applications. Additionally, the module features nine CWDM wavelength selections, providing flexibility and adaptability to your specific needs.

The OH-TR-8-1570 Fiber Optic 3G-SDI Transceiver SFP Module is designed for easy installation or upgrade, with a socket or "cage" provided for the SFP in the supporting LYNX product. Plus, the SFP is hot swappable, adding to its convenience and user-friendly nature. Experience the blend of innovation and reliability with this advanced fiber optic transceiver module.

Lynx Technik AG OH-TR-8-1570 Features

  • SDI multi-rate optical transceiver for 3G-SDI, HD-SDI and SD-SDI signals
  • Receiver and transmitter in single package
  • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • 9 CWDM wavelength selections according to ITU-T G694.2
  • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
  • TX Distances up to 80km
  • For use with yellobrik and Series 5000 product lines
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Key Features

  • Achieve reliable 3G-SDI transmission up to 80km with this fiber optic transceiver module.
  • Ensure high performance with a low intrinsic jitter, ideal for professional video networking.
  • This SFP module supports a 1570nm wavelength, perfect for CWDM fiber optic links.
  • Maximize your network's uptime with robust receiver sensitivity, minimizing signal loss issues.
  • Integrate seamlessly with LC connectors, designed for duplex single-mode fiber connections.
  • Operate confidently in diverse environments with a wide temperature range for networking setups.

What's in the box:

  • Lynx Technik AG OH-TR-8-1570 Fiber Optic 3G-SDI Transceiver SFP Module with LC Connectors
  • Lynx Technik AG 2 Year Limited Warranty
