2.97 Gb/s: Typ: 45 and Max: 80
1.485 Gbit/s: Typ: 45 and Max: 80
270 Mbit/s: Typ: 45 and Max: 80
1470nm
Min: -4 dBm
Typ: -1dBm
Max: + 2dBm
40km
Min: 5.0
Typ: 8.0
5 to 40 deg. C / 41 to 104 deg. F
Min: 3.1VDC
Typ: 3.3 VDC
Max: 3.5VDC
Typ: 130 mA
Max: 230 mA
0.9
MSA
LC / Simplex - Singlemode
57 x 13.4 x 12.4mm / 2.24 x 0.53 x 0.49" (Not Including Connector - typ)
50g / 1.76oz
04250479314719

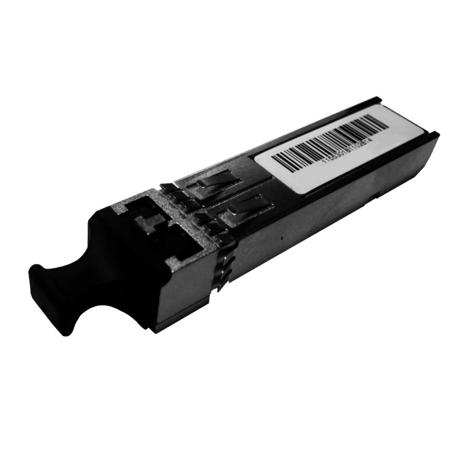

After extensive research and development, we present the OH-TX-4-1470 Single Optical 3G-SDI Transmitter SFP Module with LC Connectors. This innovative and high-quality device is a CWDM fiber plug-in option, specifically designed for select LYNX Technik yellobrik and Series 5000 products.
This advanced SFP module is engineered to facilitate the seamless conversion of an electrical SDI signal into an optical signal, enabling efficient transmission over fiber optic cables. It operates at a wavelength of 1470nm, making it highly reliable for long-distance transmissions.
The OH-TX-4-1470 is equipped with 18 wavelength selections, making it a versatile choice for CWDM applications. It supports transmission distances of up to 40km, ensuring that your signal reaches its destination without any compromise in quality.
This durable module supports 270Mbit / 1.485Gbit and 2.97Gbit SDI signals, conforming to SMPTE 424M, 292M, 259M, and DVB-ASI standards. This ensures that it can handle high-definition video signals with minimal loss of quality, making it an ideal choice for professional video and audio applications.
The OH-TX-4-1470 comes with a socket or "cage" for the SFP in the supporting LYNX product, making installation or upgrade a breeze. Plus, the SFP is hot swappable, adding to its convenience and ease of use.
In conclusion, the OH-TX-4-1470 Single Optical 3G-SDI Transmitter SFP Module with LC Connectors is a robust, reliable, and advanced solution for your long-distance optical signal transmission needs.
