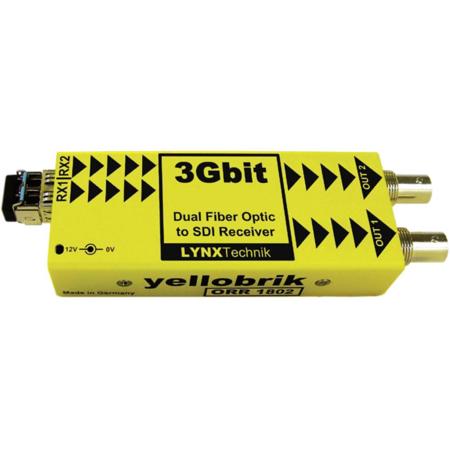

Lynx Technik AG yellobrik ORR 1802 Dual 3Gbit Fiber Optic to SDI Receiver, Single Mode LC Connection

SKU: LTORR1802 MFR: ORR1802
Earn VIP Reward Points

Key Features

  • Ensure stable signal transmission with this reliable 3Gbit Fiber Optic Receiver.
  • Achieve high resolution video output with dual channel SDI for professional use.
  • Enjoy easy setup with plug-and-play LC connections, perfect for quick deployments.
  • Experience low latency video delivery, ideal for live broadcasts and critical monitoring.
  • This durable receiver supports long range, single mode fiber connections up to 1620nm.
  • Trust in the yellobrik ORR 1802 for seamless SDI conversion in broadcast environments.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG ORR 1802 Specifications

  • Fiber Inputs

    2x Fiber optic Inputs (one for each channel), Duplex (single mode) using LC/PC Connections
    SMPTE 297M - 2006
    Hot pluggable
    Input range (wavelength) 1260nm to 1620nm
    RX sensitivity -3dBm to -16dBm
    RX active LED on side of module
    (SMF) Singlemode fiber

  • SDI Outputs

    2x SDI video on 75Ohms BNC connector (two independent channels)
    SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    Multi-standard operation from 270Mbit/s to 3Gbit/s
    Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz

  • Power

    +12VDC at 2.2W nominal - ( supports 7 - 16VDC input range )

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F, 90% Humidity (non condensing)

  • Dimensions

    140 x 42 x 22mm / 5.51 x 1.65 x 0.87" including connectors

  • Weight

    125g / 4.41oz

About Lynx Technik AG ORR 1802

Discover the yellobrik ORR 1802, a robust dual-channel fiber optic to SDI receiver, expertly engineered to overcome the limitations associated with transmitting uncompressed, broadcast-grade video signals over extensive distances. This high-quality, reliable device is an integral part of a cost-effective optical transmission/receiver system, capable of handling signals up to 1080p60 (3Gbit/s) while preserving the full, uncompressed quality of your media.

The ORR 1802 is designed with two completely independent channels, each equipped with the innovative capability to auto-detect and re-clock any 270Mbit / 1.48Gbit and 2.97Gbit SDI fiber source prior to electrical conversion. This advanced feature ensures a seamless, high-quality signal transmission, making it an ideal choice for professional video and audio applications.

Featuring a single mode LC connection, this durable receiver is known for its superior performance and minimal signal loss, providing a more reliable and high-quality signal transmission. The ORR 1802 is fully compatible with 3Gbit Level A and Level B formats, further enhancing its versatility and usability in various professional settings.

Whether you're transmitting 4K video or other high-bandwidth applications, the yellobrik ORR 1802 Dual 3Gbit Fiber Optic to SDI Receiver is a reliable, advanced solution that delivers unparalleled performance.

Lynx Technik AG ORR 1802 Features

  • Dual channel
  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.48Gbit / 2.97Gbit
  • Error free optical reception
  • 1260nm to 1620nm wavelength input range
  • Duplex LC/PC singlemode optical connection
  • Supports hot swapping and hot plugging

Product Documents

User Manual

Key Features

  • Ensure stable signal transmission with this reliable 3Gbit Fiber Optic Receiver.
  • Achieve high resolution video output with dual channel SDI for professional use.
  • Enjoy easy setup with plug-and-play LC connections, perfect for quick deployments.
  • Experience low latency video delivery, ideal for live broadcasts and critical monitoring.
  • This durable receiver supports long range, single mode fiber connections up to 1620nm.
  • Trust in the yellobrik ORR 1802 for seamless SDI conversion in broadcast environments.

What's in the box:

  • Lynx Technik AG yellobrik ORR 1802 Dual 3Gbit Fiber Optic to SDI Receiver
  • AC Power Supply
  • Lynx Technik AG 3 Year Warranty
