Lynx Technik AG yellobrik ORX 1702 Analog Sync/Video Fiber Optic Receiver, Multimode LC Connection

SKU: LTORX1702MM MFR: ORX 1702-1 MM
Earn VIP Reward Points

Key Features

  • Get reliable signal transmission with this Lynx Technik fiber optic receiver.
  • Enjoy superior image quality with NTSC/PAL composite video analog output.
  • This affordable receiver supports SMPTE standards for professional video needs.
  • Easily set up this wireless video transmitter with its simple LC connection.
  • Extend your video range using a low latency connection up to 880nm wavelength.
  • Trust this receiver for sync with analog black burst & HDTV tri-level signals.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG ORX 1702 Specifications

  • Fiber Input Multimode

    1x Fiber optic input LC connection
    SMPTE 297M - 2006
    Input range (wavelength) 780nm to 880nm
    RX sensitivity: 0dBm to -15dBm
    RX active LED on side of module

  • Analog Output

    Sync: Analog black burst / SDTV bi-level / HDTV tri-level
    Video: NTSC / PAL composite video
    2 identical outputs provided
    75Ohms BNC connectors
    NTSC SMPTE 170M, PAL CCIR624
    Analog tri-level sync SMPTE ST 274, ST 276
    Return loss: 46.5dB to 10MHz

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F, 90% Humidity (non condensing)

  • Power

    +12VDC at 3.5W nominal - ( supports 8 - 24VDC input range )

  • Dimensions

    140 x 42 x 22mm / 5.51 x 1.65 x 0.87" including connectors

  • Weight

    125g / 4.41oz

About Lynx Technik AG ORX 1702

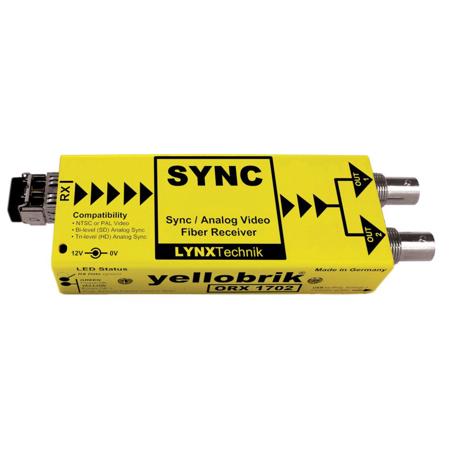

An indispensable tool for professional video production and broadcasting environments, the yellobrik ORX 1702 Analog Sync/Video Fiber Optic Receiver is a high-quality, durable, and reliable solution for extending the reach of analog reference and composite video signals. This advanced receiver is engineered by Lynx Technik AG, a leader in audio and video equipment, ensuring innovative technology and superior performance.

The ORX 1702 is designed to overcome the limitations associated with transmitting broadcast-quality analog reference and composite video signals over extensive distances. Its compact form factor makes it an unobtrusive addition to any setup, while its robust construction ensures long-lasting operation in demanding professional contexts.

When used in conjunction with the fiber optic transmitter OTX 1712, the ORX 1702 forms a cost-effective optical transmission system that excels in the distribution of analog sync reference signals or NTSC/PAL composite video. This pairing is especially beneficial for maintaining precise synchronization across remote installations, a critical requirement for seamless broadcast operations.

Unlike simpler analog-to-fiber conversion solutions, the ORX 1702 integrates advanced technology to preserve exceptional sync and burst phase stability throughout the fiber reception and analog conversion process. This ensures that the integrity of the signal is maintained, resulting in high-quality video output without degradation.

The device is adept at handling SDI signals, including reference and other pertinent data, converting them to analog signals with ease. For instance, when the ORX 1702 receives a 525 or 625 SDI video source, such as from an SDI video transmitter like the OTX 1812, it can directly convert the signal into an analog NTSC or PAL composite output, demonstrating its versatility and advanced capabilities.

Equipped with dual analog outputs, the ORX 1702 supports a variety of fiber connections, including LC, ST, or SC single-mode fiber. The multimode LC version caters to setups requiring multimode fiber connections, enhancing the receiver's adaptability to different fiber infrastructures.

In summary, the yellobrik ORX 1702 is an essential component for any professional seeking a reliable, high-quality solution for analog video signal reception and distribution over fiber optics. Its compatibility with various signal types and fiber connections, combined with Lynx Technik AG's reputation for excellence, makes it a top choice for industry professionals.

Lynx Technik AG ORX 1702 Features

  • Supports analog black burst, bi-level, tri-level sync signals and NTSC and PAL composite video
  • Two outputs
  • Broadcast quality performance
  • Versions for LC, ST or SC fiber connections
  • Multimode version available
  • Supports hot swapping and hot plugging
  • yelloGUI compatible to access additional internal settings

Product Documents

User Manual

Key Features

  • Get reliable signal transmission with this Lynx Technik fiber optic receiver.
  • Enjoy superior image quality with NTSC/PAL composite video analog output.
  • This affordable receiver supports SMPTE standards for professional video needs.
  • Easily set up this wireless video transmitter with its simple LC connection.
  • Extend your video range using a low latency connection up to 880nm wavelength.
  • Trust this receiver for sync with analog black burst & HDTV tri-level signals.

What's in the box:

  • Lynx Technik AG yellobrik ORX 1702 Analog Sync/Video Fiber Optic Receiver
  • 12V DC Power Supply
  • Plastic Transport Case
  • Lynx Technik AG 3 Year Warranty
