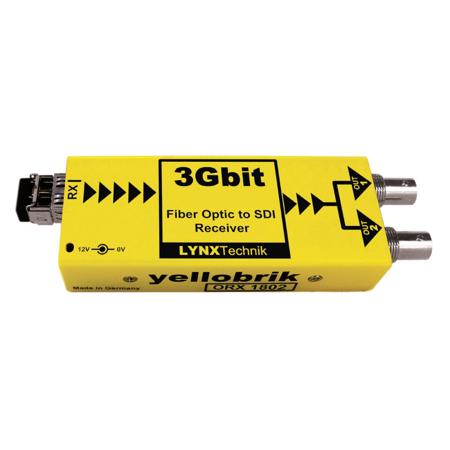

Lynx Technik AG yellobrik ORX 1802 3Gbit SDI to Fiber Optic Receiver, Single Mode LC Connection

SKU: LTORX1802LC MFR: ORX1802LC
Earn VIP Reward Points

Key Features

  • Achieve long-range, reliable video transmission with this 3Gbit SDI fiber optic receiver.
  • Ensure stable signal conversion from fiber to SDI, ideal for broadcast environments.
  • Experience low latency video signal reception for seamless live video production workflows.
  • This receiver supports multi-standard SDI video, from 270Mbit/s to 3Gbit/s, with ease.
  • Enjoy easy setup with the yellobrik ORX 1802, offering a simple single-mode LC connection.
  • Get high-resolution video output with dual SDI outputs on 75Ohms BNC connectors.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG ORX 1802 Specifications

  • Fiber Input single mode

    1x Fiber optic Input LC connection
    SMPTE 297M - 2006
    Input range (wavelength) 1260nm to 1620nm
    RX sensitivity -3dBm to -19dBm
    RX active LED on side of module

  • SDI Output

    2x SDI video on 75Ohms BNC connectors
    SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    Multi-standard operation from 270Mbit/s to 3Gbit/s
    Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz

  • Power

    +12VDC at 1.3W nominal - ( supports 7 - 16VDC input range )

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F, 90% Humidity (non condensing)

  • Dimensions

    140 x 42 x 22mm / 5.51 x 1.65 x 0.87" including connectors

  • Weight

    125g / 4.41oz

About Lynx Technik AG ORX 1802

The ORX 1802 is a compact fiber to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with the fiber optic to SDI transmitters (e.g. yellobrik OTX 1812 or OTX 1842) you have a very cost effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.

The OTX 1812 provides 2 SDI outputs and support for LC, ST or SC single mode fiber connections as well as an LC version suitable for multimode fiber. The ORX 1802 will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI fiber source and convert to an electrical signal. The module is fully compatible with 3Gbit Level A and Level B formats.

Lynx Technik AG ORX 1802 Features

  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
  • 2x SDI outputs
  • Versions for LC, ST or SC fiber connections
  • Multimode version available
  • Input range 1260nm to 1620nm (singlemode)
  • Input range 780nm to 880nm (multimode)
  • Supports hot swapping and hot plugging

Product Documents

User Manual

Key Features

  • Achieve long-range, reliable video transmission with this 3Gbit SDI fiber optic receiver.
  • Ensure stable signal conversion from fiber to SDI, ideal for broadcast environments.
  • Experience low latency video signal reception for seamless live video production workflows.
  • This receiver supports multi-standard SDI video, from 270Mbit/s to 3Gbit/s, with ease.
  • Enjoy easy setup with the yellobrik ORX 1802, offering a simple single-mode LC connection.
  • Get high-resolution video output with dual SDI outputs on 75Ohms BNC connectors.

What's in the box:

  • Lynx Technik AG yellobrik ORX 1802 3Gbit SDI to Fiber Optic Receiver
  • Transport Case
  • AC Power Supply
  • Lynx Technik AG 3 Year Warranty
