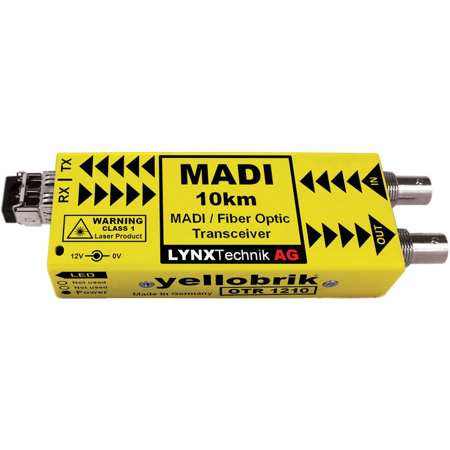

Lynx Technik AG yellobrik OTR 1210 MADI Coaxial to MADI Fiber Optical Transceiver, 1310nm, Up to 10km Singlemode Fiber LC Connector

SKU: LTOTR1210 MFR: OTR1210
Earn VIP Reward Points

Key Features

  • Seamlessly transmit MADI audio over 10km with this reliable fiber optic transceiver.
  • Ensure low latency MADI signal conversion between coaxial and fiber connections.
  • Enjoy a robust and dependable broadcast signal with the yellobrik OTR 1210 transceiver.
  • Easily extend your broadcast range using the 1310nm singlemode fiber LC connector.
  • Simplify your audio workflows with this user-friendly MADI coaxial to fiber converter.
  • Get crystal-clear audio quality with this professional-grade Lynx Technik signal generation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OTR 1210 Specifications

  • Coax Input

    1 x 75 Ohms BNC connector

  • Coax Input: Supported standards

    AES10-2008

  • Coax Input: Cable length

    250m / 820.20' ( Belden 1694A )

  • Coax Output

    1 x 75 Ohms BNC connector

  • Coax Output: Amplitude

    540mV P/P

  • Coax Output: Cable length

    250m ( Belden 1694A )

  • Fiber Optic

    1 x fiber optic input
    1 x fiber optic output
    Duplex connection using LC Connections

  • Fiber Optic: Transmitter

    1310nm (-3dBm)

  • Fiber Optic: Receiver sensitivity

    1260nm to 1620nm (-3dBm to -21dBm)

  • Fiber Optic: Max. Distance

    10km ( 6.2 miles )

  • Power

    +12VDC at 2.6W nominal each module - ( supports 7 - 16VDC input range )
    LED power present indicator

  • Operating temperature

    5 to 40 deg. C / 41 to 104 deg.

  • Operating Humidity

    90% (non condensing)

  • Dimensions

    140 x 42 x 22mm / 5.51 x 1.65 x 0.87"

  • Weight

    125g / 4.41oz

About Lynx Technik AG OTR 1210

With the yellobrik OTR 1210 MADI Coaxial to MADI Fiber Optical Transceiver, experience the seamless, real-time conversion of up to 64 audio channels in both directions (64 IN & 64 OUT) between MADI Optical and MADI Coaxial (electrical) formats. This innovative and advanced device is designed to ensure that your audio signal quality remains high, with no latency or degradation.

This durable and reliable transceiver is a compact solution that extends the reach of MADI audio over long distances, making it an ideal choice for large venues or outdoor events. When paired with another OTR 1210 at the receiving end using two fiber links, it forms a cost-effective, zero-latency MADI extender system that can transmit signals up to 10km.

The OTR 1210 is available in two versions. The single-mode fiber version is capable of transporting MADI over distances up to 10km, offering superior resistance to interference and signal loss compared to coaxial cables. The Multimode version, on the other hand, can transmit signals up to 550m.

Choose the yellobrik OTR 1210 MADI Coaxial to MADI Fiber Optical Transceiver for a high-quality, reliable solution for long-distance audio signal transmission.

Lynx Technik AG OTR 1210 Features

  • MADI Optical to MADI Coaxial converter
  • Supports up to 64 channels of audio (IN and OUT)
  • Real time conversion with no degradation of signal quality
  • Singlemode and Multimode versions
  • Up to 10km (6.2 miles) using Singlemode fiber
  • Duplex LC optical connections
  • Supports hot swapping and hot plugging

Key Features

  • Seamlessly transmit MADI audio over 10km with this reliable fiber optic transceiver.
  • Ensure low latency MADI signal conversion between coaxial and fiber connections.
  • Enjoy a robust and dependable broadcast signal with the yellobrik OTR 1210 transceiver.
  • Easily extend your broadcast range using the 1310nm singlemode fiber LC connector.
  • Simplify your audio workflows with this user-friendly MADI coaxial to fiber converter.
  • Get crystal-clear audio quality with this professional-grade Lynx Technik signal generation.

What's in the box:

  • Lynx Technik AG yellobrik OTR 1210 MADI Coaxial to MADI Fiber Optical Transceiver
  • AC Power Supply
  • Transport Case
  • Lynx Technik AG 2 Year Warranty
