Lynx Technik AG OTR 1441 Specifications

  • SDI I/O

    4x multi-format 3G/HD/SD-SDI inputs
    75Ohms BNC connections
    SMPTE 259M-2008, SMPTE 292-1:2012, SMPTE 292-2:2011
    SMPTE 424M-2006, DVB ASI
    Multi-standard / Multi-format operation auto-detect.
    Multi-rate reclocking: 270Mbit / 1.48Gbit / 2.97Gbit
    Return Loss: > 15dB to 1.5Gbit and > 10dB to 2.97Gbit
    Automatic Cable EQ (Belden 1694A cable)
    340m at 270Mbit, 150m at 1.5BGbit, 120m at 3Gbit

  • Fiber I/O

    1x Fiber optic I/O port (COM port)
    1x Fiber optic expansion port (UPG port)
    LC/PC connections - Single Mode
    SMPTE 297M - 2006
    Internal CWDM Multiplexing
    Wavelengths: 1270nm, 1290nm, 1310nm, 1330nm
    Optical budget: 10.6dB
    Maximum distance [typical]: 20km (12 miles)
    Fiber activity LEDs for each channel

  • Power

    +12VDC nominal 5.4W
    Supports external power input from 9 - 17 VDC
    2x Power LEDs provided

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F, 90% Humidity (non condensing)

  • Dimensions

    170 x 99.7 x 40.5mm / 6.69 x 3.93 x 1.59" (each Module)

  • Weight

    600g / 21.16oz net - (each module)

About Lynx Technik AG OTR 1441

The OTR 1441 is a self contained fiber transmission kit for the transport of 4 x SDI signals (12G uncompressed) over a single fiber link for distances up to 20km (12miles). The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams over long distances with zero losses. Each SDI channel is fully independent.

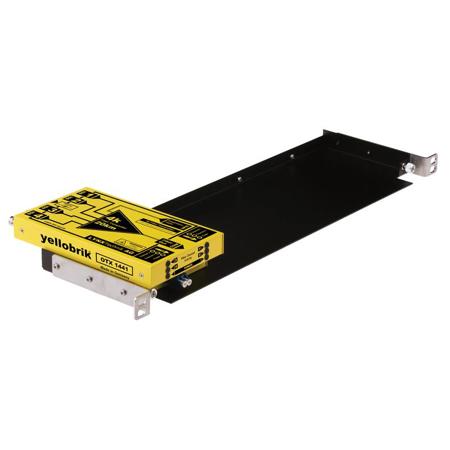

For 4K use the signal is split over 4 separate 3G SDI links (12G) and supports 4K resolution at 60fps.The system can also be used for any combination of SDI signals each with a different format and bit-rate if required. Each channel will automatically detect and reclock SDI bit rates of 270Mbit, 1.48Gbit and 2.97Gbit.LED Indicators are provided for channel presence and power. An optional 19" rack mount tray is available which can accommodate up to 4 modules.

Lynx Technik AG OTR 1441 Features

  • Support for 4 independent 3G/HD/SD-SDI channels
  • Transport 4K (uncompressed) up to 20km (12 miles)
  • Each channel supports resolutions up to 1080p/60Hz
  • Each channel individually reclocked
  • Embedded audio / metadata support
  • Integrated expansion port for future use
  • LED indicators for channel activity and power
  • Kit includes transmitter, receiver and power supplies
  • Optional 19" Rack tray to mount (max) 4 modules

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Support for 4 independent 3G/HD/SD-SDI channels
  • Transport 4K (uncompressed) up to 20km (12 miles)
  • Each channel supports resolutions up to 1080p/60Hz
  • Each channel individually reclocked
  • Embedded audio / metadata support
  • Integrated expansion port for future use

What's in the box:

  • Lynx Technik AG yellobrik OTR 1441 4K Fiber Transmission System
  • 2x 12VDC [Brick] Power Supplies
  • Lynx Technik AG 3 Year Warranty
