Lynx Technik AG yellobrik OTR 1A41 8K 48G (Quad 12G) Fiber Transmission System

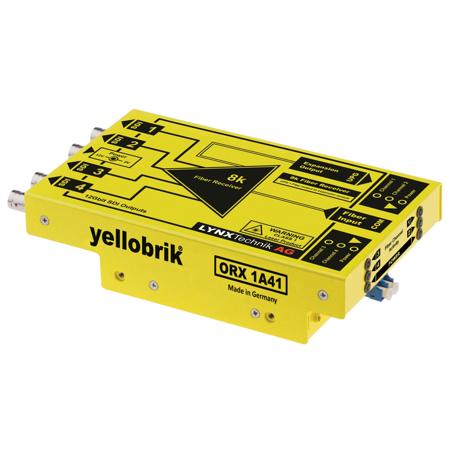

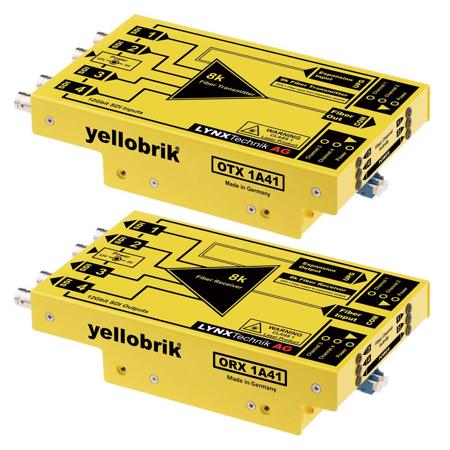

An innovative solution for high-quality video transmission, the yellobrik OTR 1A41 8K 48G (Quad 12G) Fiber Transmission System is a comprehensive kit designed for the seamless transport of four distinct SDI signals or an 8K/48G uncompressed signal over a single fiber link. This kit includes a fiber transmitter, fiber receiver, and power supplies, making it a complete package for transmitting multiple uncompressed SDI streams or 12K signals.

Each SDI channel in this system operates independently, offering flexibility for diverse broadcasting needs. When used for 8K transmission, the signal is efficiently divided over four separate 12G SDI links, supporting full 8K resolution at a smooth 60 frames per second.

The yellobrik OTR 1A41 is not limited to a single format or bit-rate. It can handle any combination of SDI signals, accommodating a mix of formats and bit-rates as needed. Each channel is equipped with automatic detection and reclocking capabilities for SDI bit rates of 270Mbit, 1.5Gbit, 3Gbit, and 12Gbit.

For easy monitoring, LED indicators are provided for channel presence and power status. The system also offers an optional 19" rack mount tray, which can house up to four modules (RFR 1018).

Please note that this kit utilizes internal CWDM optical multiplexing within the modules. As such, it is designed as a self-contained point-to-point solution and should not be integrated into external CWDM systems.

Whether you're transmitting 4 discrete SDI signals (SD/HD/3G/12G) or an 8K (48G) signal, the yellobrik OTR 1A41 8K 48G (Quad 12G) Fiber Transmission System offers a reliable and efficient solution for fiber transport.
