Lynx Technik AG OTR 1A42 8K Fiber Transmission System

While the OTR 1A42 8K Fiber Transmission System may appear compact, it is a comprehensive solution for the high-quality transport of four distinct 12G SDI signals or 8k/48G uncompressed data over a single fiber link. This all-inclusive kit features a fiber transmitter, a fiber receiver, and the necessary power supplies, making it a seamless solution for transmitting multiple uncompressed SDI streams up to 12G.

Each SDI channel operates independently, providing flexibility for diverse broadcasting needs. For 8k usage, the system cleverly divides the signal over four separate 12G SDI links, supporting full 8k resolution at a smooth 60 frames per second. This versatile system can also accommodate any combination of SDI signals, allowing for a mix of formats and bit-rates as per your requirements.

The OTR 1A42 8K Fiber Transmission System is equipped with automatic detection and reclocking of SDI bit rates ranging from 270Mbit/s to 12Gbit/s, ensuring optimal performance. LED indicators are conveniently provided for channel presence and power status, enhancing user experience and system monitoring.

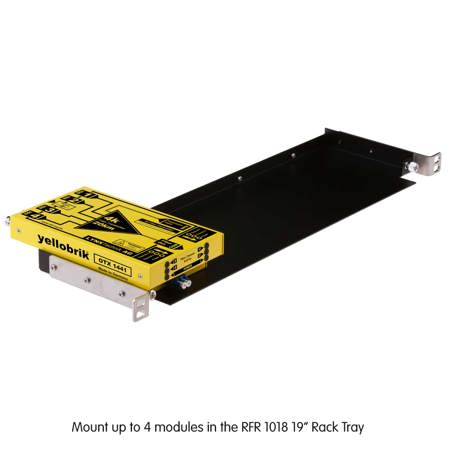

For those seeking a more organized setup, an optional 19" rack mount tray is available, capable of housing up to four modules (RFR 1018). It's important to note that this kit employs internal CWDM optical multiplexing within the modules. As such, the OTR 1A42 should be considered a self-contained point-to-point solution and is not recommended for integration into external CWDM systems.

In essence, the OTR 1A42 8K Fiber Transmission System is a robust, flexible, and user-friendly solution for all your high-definition broadcasting needs.
