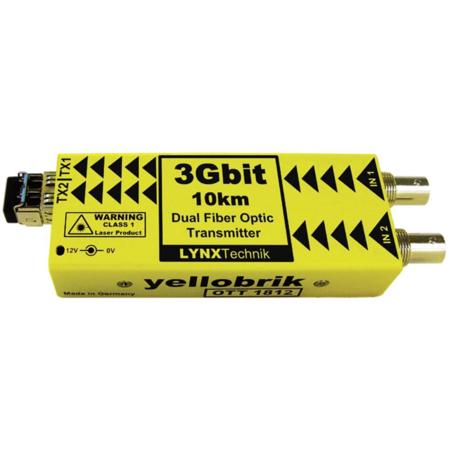

Lynx Technik AG yellobrik OTT 1812 Dual 3GBit SDI to Fiber Optic Transmitter, 10km Maximum Distance

SKU: LTOTT1812 MFR: OTT1812
Earn VIP Reward Points

Key Features

  • Experience reliable transmission with this 3Gbit SDI to fiber optic transmitter.
  • Achieve long range signal extension up to 10km using this wireless video transmitter.
  • Enjoy high resolution video with low latency, perfect for live streaming events.
  • Set up is easy! This wireless broadcast equipment is ready to use right out of the box.
  • Ensure a secure connection for your critical video feeds with this transmitter.
  • This dual-channel transmitter offers versatile connectivity for professional use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OTT 1812 Specifications

  • Input

    2x SDI video on 75 Ohms BNC connector (two independent channels)
    SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    Multi-standard operation from 270Mbit/s to 3Gbit/s
    Multi-rate reclocking
    270Mbit/s - 1.48Gbit/s - 2.97Gbit/s
    Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz
    Automatic cable EQ (Belden 1694A cable)
    250m at 270Mbit/s, 140m at 1.5Gbit/s, 80m at 3Gbit/s

  • Optical Outputs

    2x Fiber optic outputs (one for each channel), Duplex (single mode) using LC/PC Connections
    SMPTE 297M - 2006
    Wavelength 1310nm (each channel)
    Optical power -5dBm (each channel)
    TX active LEDs on side of module
    Maximum distance approx. 10km (6.2 miles) at 3Gbit/s (Singlemode)
    +12VDC at 2.5W nominal - ( supports 7 - 16VDC input range )

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F, 90% Humidity (non condensing)

  • Dimensions

    140 x 42 x 22mm / 5.51 x 1.65 x 0.87" including connectors

  • Weight

    125g / 4.41oz

  • UPC Code

    4250479318229

About Lynx Technik AG OTT 1812

It's time to introduce the yellobrik OTT 1812, an innovative and advanced dual 3GBit SDI to fiber optic transmitter. This high-quality, durable device is expertly designed to overcome the limitations associated with distributing uncompressed, broadcast-grade video signals over extended distances.

The OTT 1812 is more than just a compact transmitter; it's a comprehensive solution for long-distance video transmission. When coupled with a dual-channel fiber optic to SDI receiver, such as the yellobrik ORR 1802, it forms a cost-effective, dual-channel optical transmission/receiver system. This system is capable of handling signals up to 1080p60 (3Gbit/s), all while preserving the full, uncompressed quality of your video content.

What sets the OTT 1812 apart is its dual-channel functionality. It houses two completely independent channels, each equipped with the capability to auto-detect and re-clock any 270Mbit / 1.48Gbit and 2.97Gbit SDI source prior to optical transmission. This ensures a reliable and consistent transmission, regardless of the source.

Moreover, the OTT 1812 is fully compatible with 3Gbit Level A and Level B formats, providing you with the flexibility to work with a wide range of video formats. With a maximum distance reach of 10km, this transmitter offers unparalleled flexibility in terms of location and signal transmission, making it an ideal choice for professional video production, live events, and any application requiring long-distance, high-definition video transmission.

In summary, the yellobrik OTT 1812 is a testament to cutting-edge technology, offering a reliable, efficient, and high-quality solution for your long-distance video transmission needs.

Lynx Technik AG OTT 1812 Features

  • Dual channel
  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.48Gbit / 2.97Gbit
  • Error free optical transmission
  • Up to 10km (6.2 miles) at 3Gbit/s
  • Duplex LC/PC singlemode optical connection
  • Supports hot swapping and hot plugging

Product Documents

User Manual

Key Features

  • Experience reliable transmission with this 3Gbit SDI to fiber optic transmitter.
  • Achieve long range signal extension up to 10km using this wireless video transmitter.
  • Enjoy high resolution video with low latency, perfect for live streaming events.
  • Set up is easy! This wireless broadcast equipment is ready to use right out of the box.
  • Ensure a secure connection for your critical video feeds with this transmitter.
  • This dual-channel transmitter offers versatile connectivity for professional use.

What's in the box:

  • Lynx Technik AG yellobrik OTT 1812 Dual 3GBit SDI to Fiber Optic Transmitter
  • AC Power Supply
  • Lynx Technik AG 3 Year Warranty
